BL-HE-ST3203 Omnipolar Hall Effect Switch Components

BL-HE-ST3203

Omnipolar Hall components usually refer to Hall effect switches that can detect both positive and negative magnetic polarities. When the bipolar Hall switch senses a magnetic field, the Hall effect sensor will generate a corresponding electrical signal. The characteristics of this signal (a change in voltage or current) that depends on the direction of the magnetic field, distinguishing between positive and negative magnetic polarity.

minimum order

1 piece

Quantity:

Contact Now

add to cart

Omnipolar Hall components usually refer to Hall effect switches that can detect both positive and negative magnetic polarities. When the omnipolar Hall switch senses a magnetic field, the Hall effect sensor will generate a corresponding electrical signal. The characteristics of this signal (a change in voltage or current) that depends on the direction of the magnetic field, distinguishing between positive and negative magnetic polarity.

Model Number:BL-HE-ST3203
Type:hall effect switch
Brand Name:GBeelee hall effect sensor
Power:Low Power
Output:HBM> +/- 4KV( min ) Totem-pole output
Supply voltage:1.65 V~5.5 V
Output High Voltage:VDD-0.2
Output Low Voltage:0.2
Supply current:1.1uA
Supply Current During Startup Time:0.7mA
Supply Current During Standby Time:0.42uA
Awake mode time:2.4uA
Sleep mode time:1mA

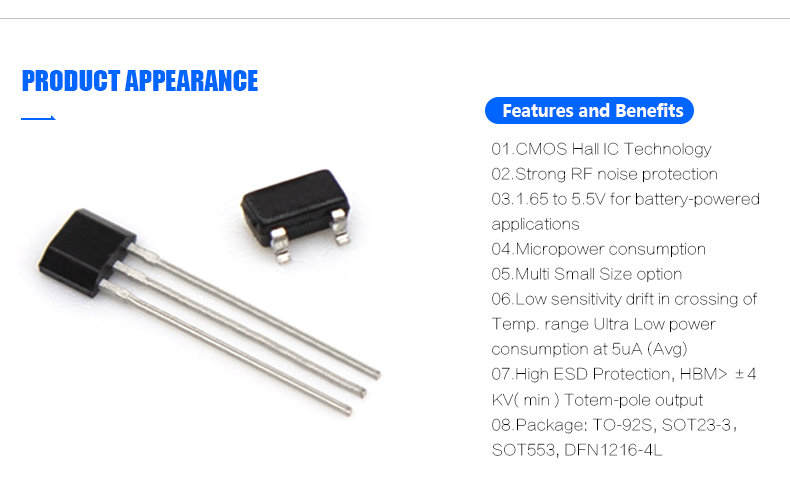

The BL-HE-ST3203 is fabricated from mixed signal CMOS technology. It internally includes an on-chip Hall voltage generator, a voltage regulator for operation with supply voltages of 1.65 to 5.5V, a sleep/awake logic for low power consumption, temperature compensation circuitry, small-signal amplifier, Hall sensor with dynamic offset cancellation system, Schmitt trigger and an open-drain output. Both south pole and north pole of sufficient strength will turn the sensor output on. The output will be turned off under no magnetic field. While the magnetic flux density (B) is larger than operating point (Bop), the output will be turned on (low), the output is held until B is lower than release point (Brp), and then turned off.

The total power consumption in normal operation is typically 15µW with a 3.3V power source. Operating temperature range of the BL-HE-ST3203 is from -40°C to 85°C.

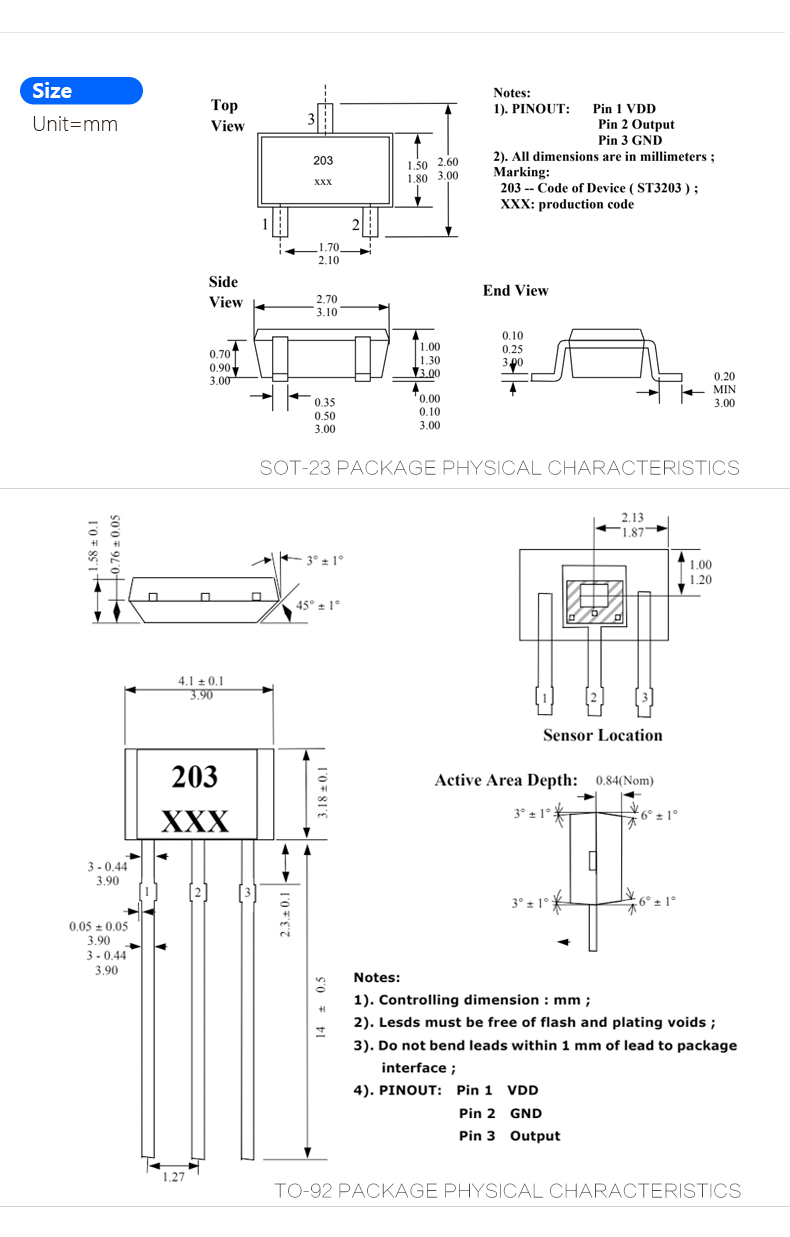

Parameter	Symbol	Test Conditions	Min	Typ	Max	Units
Operating voltage	VDD	Operating	1.65	3.3	5.5	V
Output High Voltage	VOH	B	VDD-0.2	-	-
Output Low Voltage	VOL	BopS	-	-	0.2
Supply current1	IDD1(AVG)	VDD=1.8V, Average	-	1.1	-	µA
Supply Current During Startup Time 1	IDD1(EN)	VDD=1.8V, During Startup Time Value	-	0.7	-	mA
Supply Current During Standby Time 1	IDD1(DIS)	VDD=1.8V, During Standby Time Value	-	0.42	-	µA
Supply current1	IDD1(AVG)	VDD=3.0V, Average	-	2.4	-	µA
Supply Current During Startup Time 1	IDD1(EN)	VDD=3.0V, During Startup Time Value	-	1	-	mA
Supply Current During Standby Time 1	IDD1(DIS)	VDD=3.0V, During Standby Time Value	-	1.4	-	µA
Awake mode time	TAW	Operating	-	25	-	µS
Sleep mode time	TSL	Operating	-	50	100	mS
