hall effect magnetic switch sensor hall effect sensor module hall effect-based current sensor

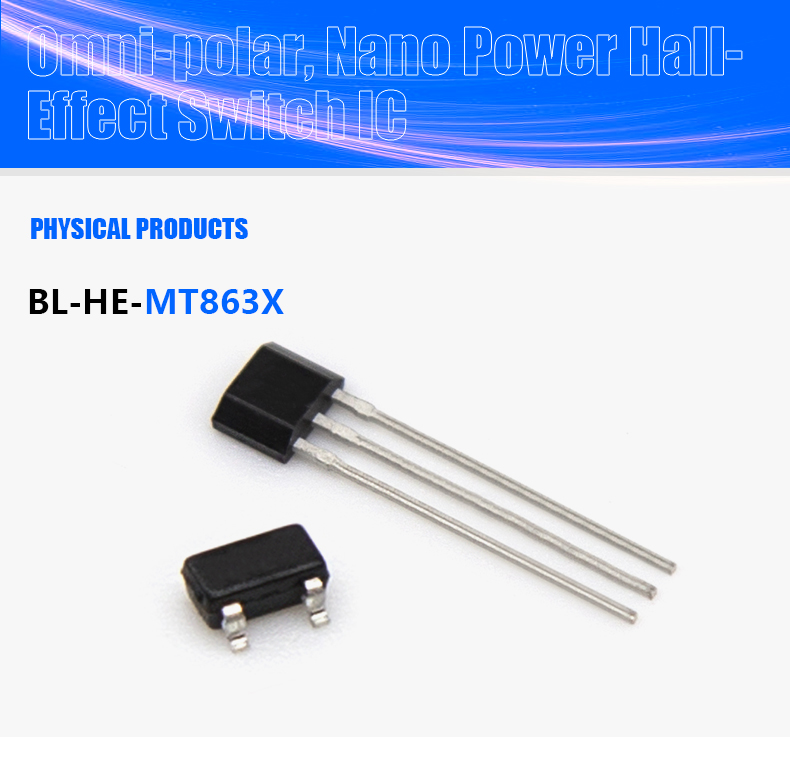

GBeelee BL-HE-MT863X CMOS Omni-polar Nano Power Hall-Effect magnetic Switch IC Current sensor module

BL-HE-MT863X

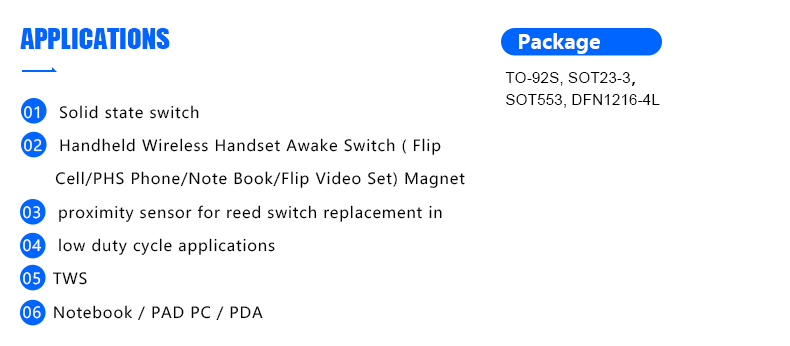

Hall Switch Components are sensors based on the Hall effect principle and are used to measure the strength of the surrounding magnetic field. This type of sensor is commonly used in applications such as detecting the position, speed, and direction of objects and measuring electrical current. It usually has high accuracy and reliability, low power consumption, good adaptability to temperature and humidity, can work normally under various environmental conditions, and the response speed is relatively fast.
minimum order
1 piece
Quantity:
Contact Now
add to cart

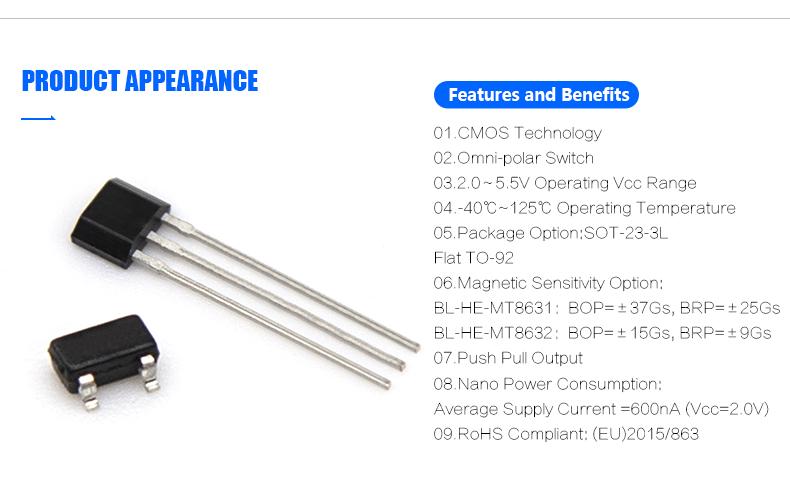

  • Series:Hall-Effect
  • Features:Omni-polar Switch
  • Mounting Type:CMOS Technology
  • Description:Omni-polar Switch
  • Model Number:BL-HE-MT863X
  • Type:hall effect switch
  • Place of Origin:Guangdong, China
  • Brand Name:GBeelee
  • Use:Strong RF noise protection
  • Theory:Micropower consumption
  • Output:HBM> +/- 4KV( min ) Totem-pole output
  • Supply voltage:7 V
  • Supply Current:600nA
  • Awake Current:3.0-5.0mA
  • Sleep Current:1.2-2.0uA
  • Output Low Voltage:0.4V
  • Output High Voltage:VCC-0.4 V
  • Switching Frequency:10-40HZ
  • Awake Time:4-16us
  • Sleep Time:25-100ms






The BL-HE-MT863X family is produced with CMOS technology. The Hall IC internally includes high sensitivity horizontal hall plates, sleep/awake logics for mode control, a low-power on-chip oscillator, low noise analog signal chain with dynamic offset cancellation, hysteresis comparators and an output driver.
The product responds to either North pole or South pole magnetic fields. The output will be turned on (Low) when the magnetic flux density (B) is larger than the operating point (BOP), and be turned off (High) when the magnetic flux density (B) is lower than the releasing point (BRP).









1.Q:Can I get sample from you?


A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.


2.Q:Do you accept customization?


A:Yes,customization is acceptable,please contact our sales staffs for consult.


3.Q:Can you provide help for technical issues?


A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us


4.Q:How many types of switches do you have,and what about your quality?


A:We have 10 different types of switches for your choice,all our products is passed the ROHS and REACH,please trust we definitely could meet your quality stander.


5.Q:What are the advantages of your photoelectric switch?


A:Our photoelectric switch is non-mechanical triggering makes the signal more stable and reliable,and precision built-in angle guide structure,high triggering angle consistency.
