Magnetic sensor Hall effect switch BL-HE-MT8652

Magnetic sensor Hall effect switch BL-HE-MT8652/TO-92 Omni-polar, Nano Power Hall-Effect Switch IC used in electric vehicle moto

BL-HE-MT8652
minimum order
1 piece
Quantity:
Contact Now
add to cart
  • Model Number:BL-HE-MT8652
  • Place of Origin:Guangdong, China
  • Brand Name:Beelee
  • Supply Voltage:7V
  • Reverse Battery Voltage:-0.5V
  • Output Voltage:7V
  • Continuous Output Current:8mA
  • Operating Ambient Temperature:-40~125 ℃
  • Storage Temperature:-50~150 ℃
  • Junction Temperature:165℃
  • Magnetic Flux Density:No Limit


01.The BL-HE-MT865X family is produced with CMOS technology. The Hall IC internally includes high sensitivity horizontal hall plates, sleep/awake logics for mode control, a low-power on-chip oscillator, low noise analog signal chain with dynamic offset cancellation, hysteresis comparators and an output driver.


02. The product responds to either North pole or South pole magnetic fields. The output will be turned on (Low) when the magnetic flux density (B) is larger than the operating point (BOP), and be turned off (High) when the magnetic flux density (B) is lower than the releasing point (BRP).

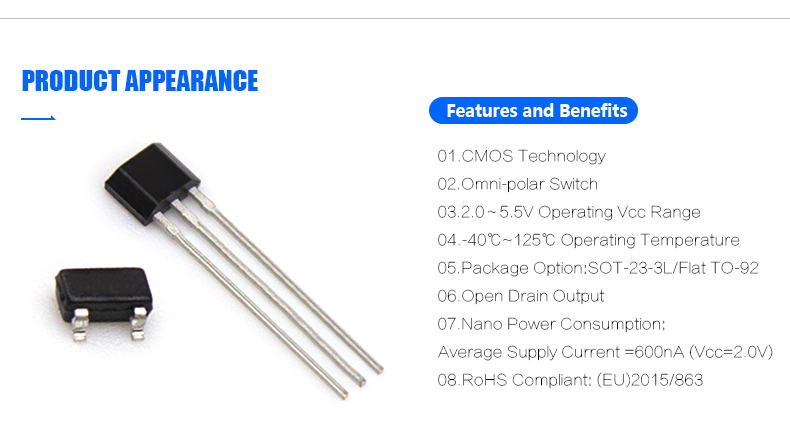

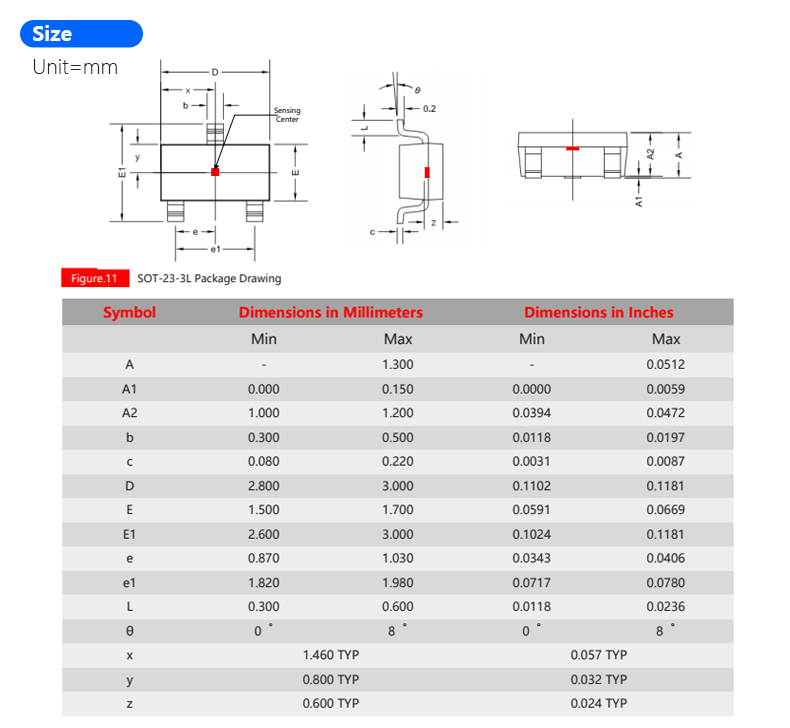

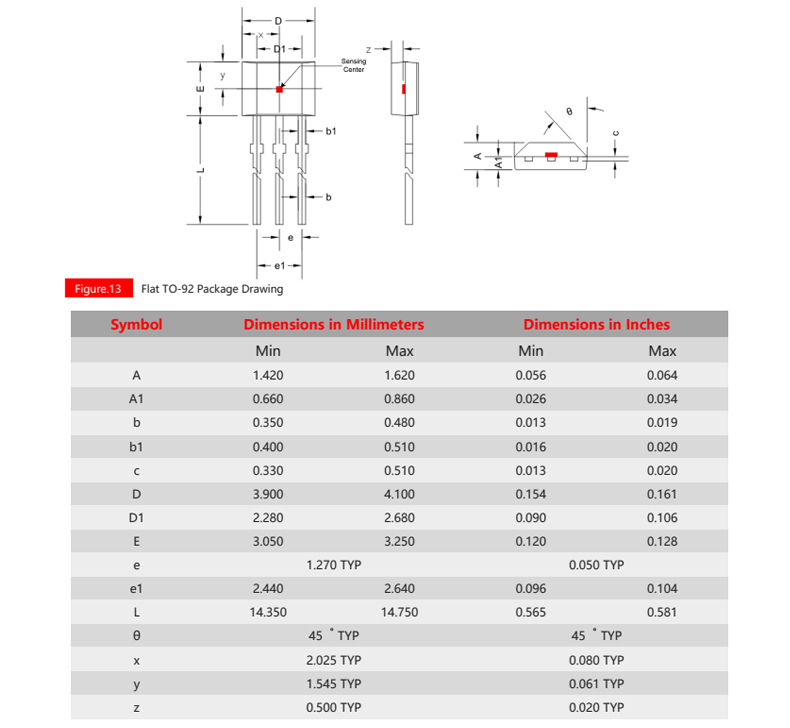

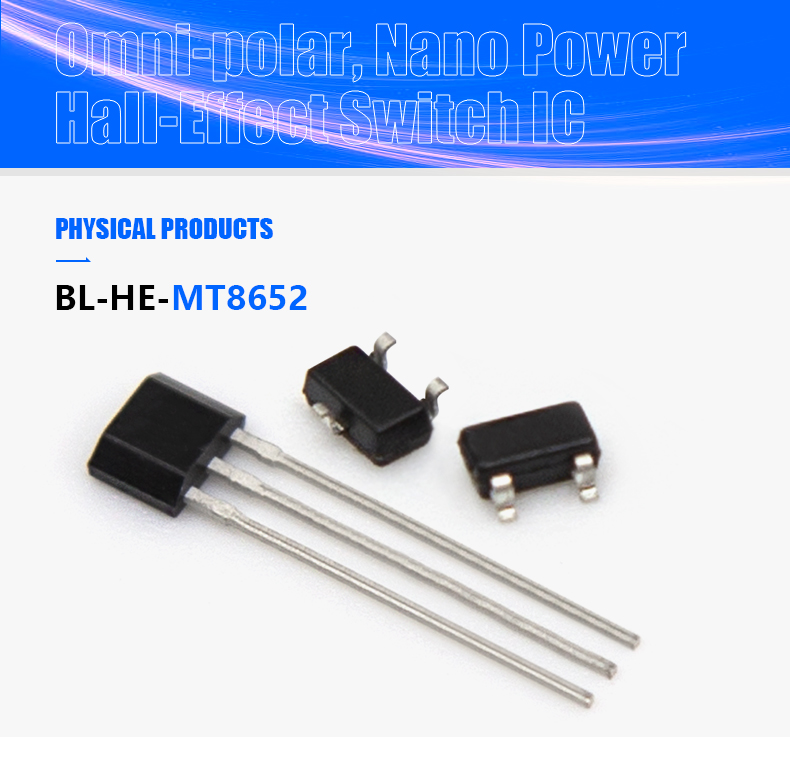

03.The BL-HE-MT865X family provides a variety of packages to customers: SOT-23-3L for surface mount and flat TO-92 for through-hole mount. All packages are RoHS compliant.


































































































































SymbolParametersTest ConditionMinTypMaxUnit
VCCSupply VoltageOperating2.03.65.5V
ICCSupply CurrentVCC=3.6V-1.22.0uA
VCC=2.0V-600-nA
IAWAwake CurrentVCC=3.6V-3.0 4.0 mA
ISLSleep CurrentVCC=3.6V-1.22.0 uA
VOLOutput Low VoltageIOUT=5mA,
B>BOP		--0.4V
FSWSwitching FrequencyVCC=3.6V102040Hz
TAWAwake TimeVCC=2.0V to 5.5V41016Us
TSLSleep TimeVCC=2.0V to 5.5V2550100ms
D.C.Duty CycleVCC=2.0V to 5.5V-0.02-%
TPOPower on TimedVcc/dt>5V/us,
B>BOP		--120us
RTHThermal Resistance of SOT-23-301-℃/W
Thermal Resistance of Flat TO-92-230-℃/W
