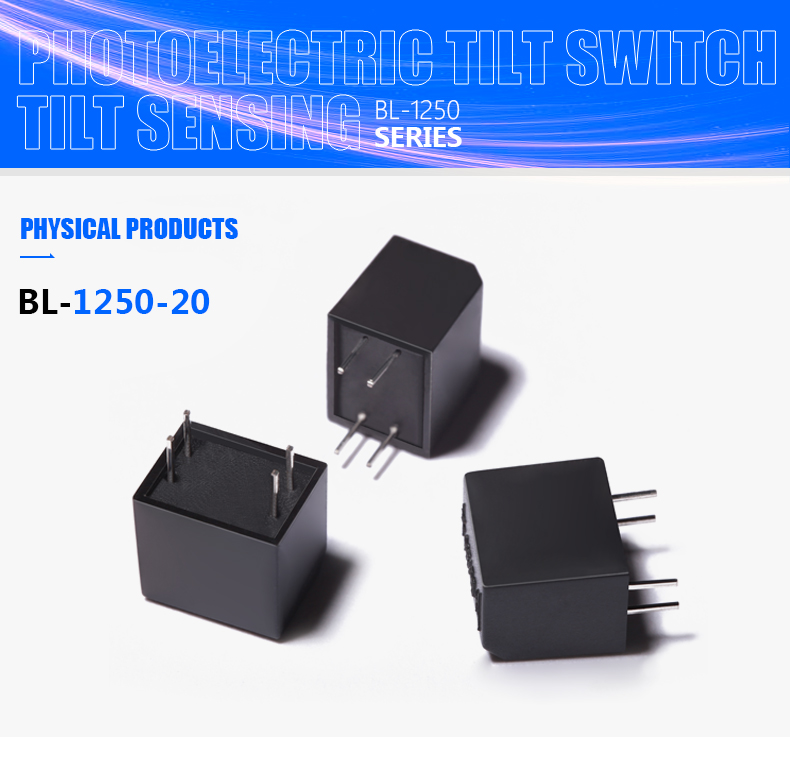

BL-1250-20 Photoelectric Ball Tilt Switch

BL1250-20

BL-1250 is a ball-type photoelectric tilt sensor trigger switch. When placed horizontally, it can be triggered by shaking it hard. It adopts photoelectric induction and is not affected by metal oxidation. It has simple switching signals, simple circuit design and economical price.

Quantity:

Contact Now

add to cart

BL-1250 Photoelectric Ball Tilt Switch is a technology that uses a combination of photoelectric sensor and tilt detector. It contains a ball and a sensitive photoelectric sensor. When the object tilts or changes in inclination, the position of the ball changes accordingly, causing the photoelectric sensor to detect changes in light.

Commonly used in applications that require detection of tilt or inclination conditions. For example, it can be used to monitor the tilt of a machine or equipment for automatic control or safety monitoring. This type of sensor is also commonly used in some game equipment, electronic toys or inclination measuring instruments.

The working process of Photoelectric Switch is as follows:

When the light beam is not blocked by objects, the light intensity received by the photoelectric sensor is relatively high and is in a high-level state.
When an object blocks the light beam, the light intensity received by the photoelectric sensor decreases, causing the output signal to become low level.
When the light beam is unblocked again, the photoelectric sensor detects that the light intensity is restored, and the output signal returns to high level.

At this point, the ball will be at the other end when the object is detected, and will return to its original position when the object is removed. Therefore, the state change of the photoelectric sensor and the position change of the ball jointly determine the state of the switch.

Model: BL-1240-20 Tilt Sensor
Principle: Tilt angle protection function
Product name: Photoelectric tilt switch
Type: Electronic PCB Assembly
Material: high temperature resistant engineering plastic
Purpose: tilt detection

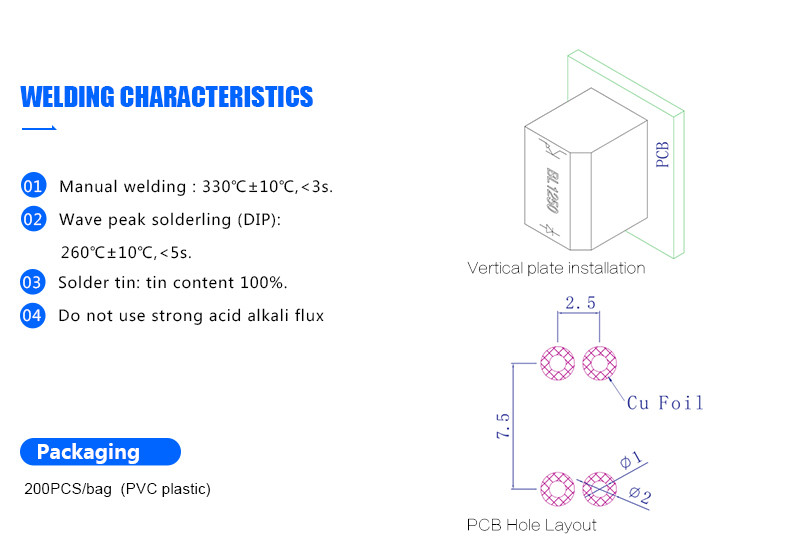

Installation method: vertically installed on PCB board
Voltage: 5v
Maximum current: <20mA
Maximum voltage: <12V
Lifespan: up to 100K hours

tilt Photoelectric tilt switch

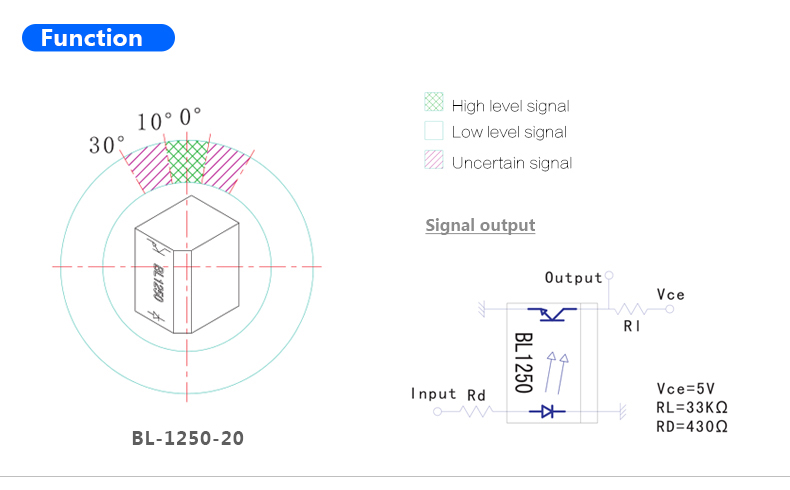

When the product is broadside,the output is high level .
When the products tilt to any direction and more than 20 ±10 degrees, output is the low level .


File No	output level	Tilt direction	Tilt angle	output level
BL-1250-20	broadside/high level	omni 360 degree tilt detecting	Exceed20±10°	low level
BL-1250-30	broadside/high level	omni 360 degree tilt detecting	Exceed30±10°	low level
BL-1250-45	broadside/high level	omni 360 degree tilt detecting	Exceed45±10°	low level
BL-1250-60	broadside/high level	omni 360 degree tilt detecting	Exceed60±10°	low level

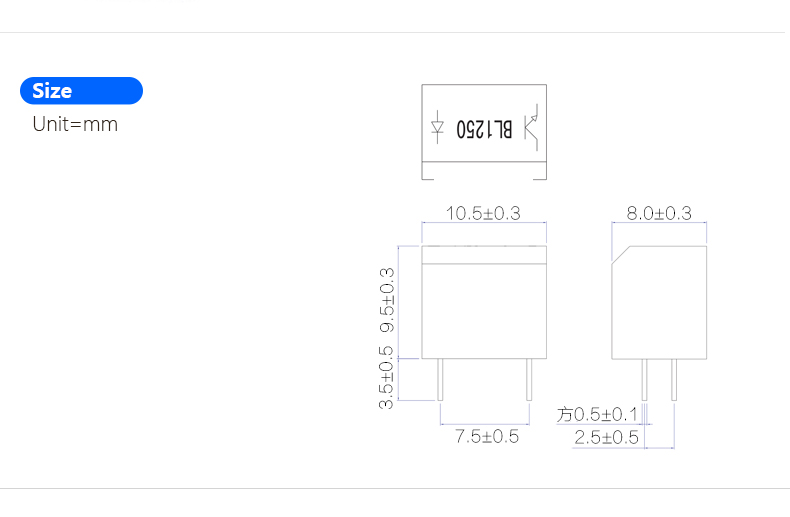

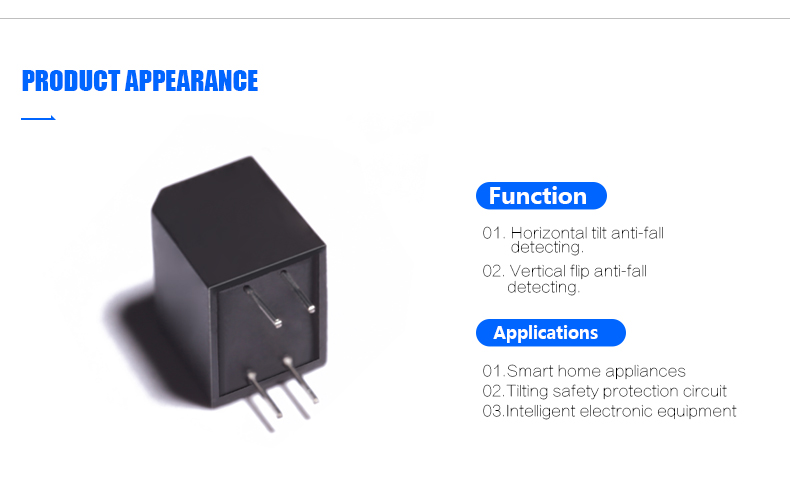

Photoelectric ball tilt switch 06-1..jpg 07-1..jpg

01.BL- 1250 can omni 360 degree tilt detecting .

02.When the products is broadside , the output is high level .

03.When the products tilt to any direction and more than 20±10 degree , output is the low level .

04.This switch output can trigger MCU , I / O control circuit.

1	Voltage	4.5-5V
2	Current	6-10mA
3	Conductive time	Continuous conduction
4	OperatingTemperature	-25℃ to 85℃
5	Storage Temperature	Operating: -40℃ to 80℃
6	Pull force of terminal	500gf for 1 minute
7	Humidity	40℃/95% RH
8	Operating lifespan	1,000,000 times, 2Hz
9	Electrical lifespan	30,000 hours I F =10mA,Vce=5V

tilt detection
