BL-2133-30 Mini SMD Angle Tilt Switch Smart Watch Bracelet Tilt Wake-up Function

• Model Number:BL-2133-30
• Place of Origin:Guangdong, China
• Brand Name:Beelee
• Voltage:1-6V
• Current:2uA-10mA
• Cond uction mode:Discontinuous conduction mode
• Closed resistance:<30 ohm
• Insulation resistance:>10M ohm
• Temperature range:-40℃ to 85℃
• Pull force of terminal:300gf for 1 minute

01.This product is Ball type tilt vibration sensitive switch.

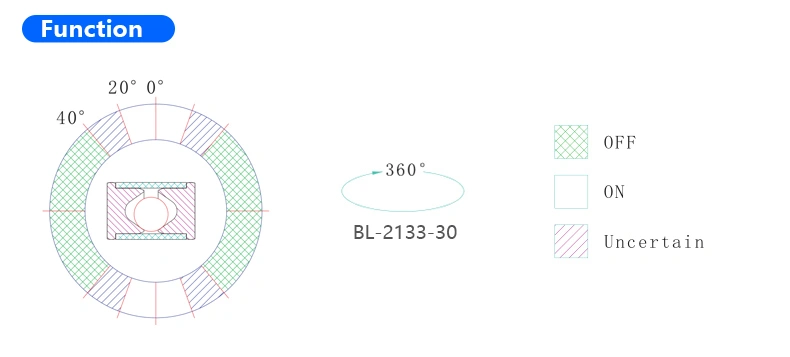

02.The product level is in the conduction state, and the tilt to both sides is more than
30±10 degrees in the disconnected state. 03.Product completely airtight, waterproof, dustproof.
04.Material compliant with ROSH directive, replace the mercury switch.
05.Simple for switch signals and circuit , and economic price.

Q1:How can I get more information about your product?
A1:Please send the inquiry for us, and then we can send the detail including spec and offer to you.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.
Q3:What is the payment way of your company?
A4:100% T/T in advance before shipping,(We can accept payment such as T/T, Paypal,Western Union,Alibaba trade assurance,Etc. )
Q4:What is the shipping way?
A5: Usually by air (DHL,UPS,TNT, FedEx etc).
Q5:How long for manufacturing once we place order?
A7: I0000pcs within 5-10 days.
Q6:How long for samples order?
A7: Usually within 24 hours.
