SW-2004 mercury tilt sensors protection detection Unidirectional 20v glass mercury tilt switch

• Certification:RoHS
• Whether the smart:NO
• Place of Origin:Guangdong, China
• Brand Name:Beelee
• Model Number:SW-2004
• Max. Current:0.2A
• Max. Voltage:20V
• Name:Mercury switches
• Operation type:Tilt type
• Model:SW2004
• Voltage:220V
• Current:2A
• CONTACT RESISTANCE:less than 10ohm
• Lifespan:500,000cycles

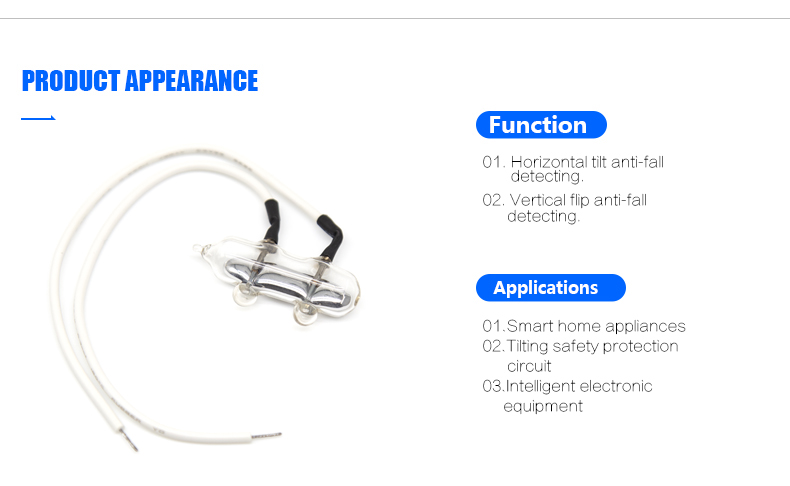

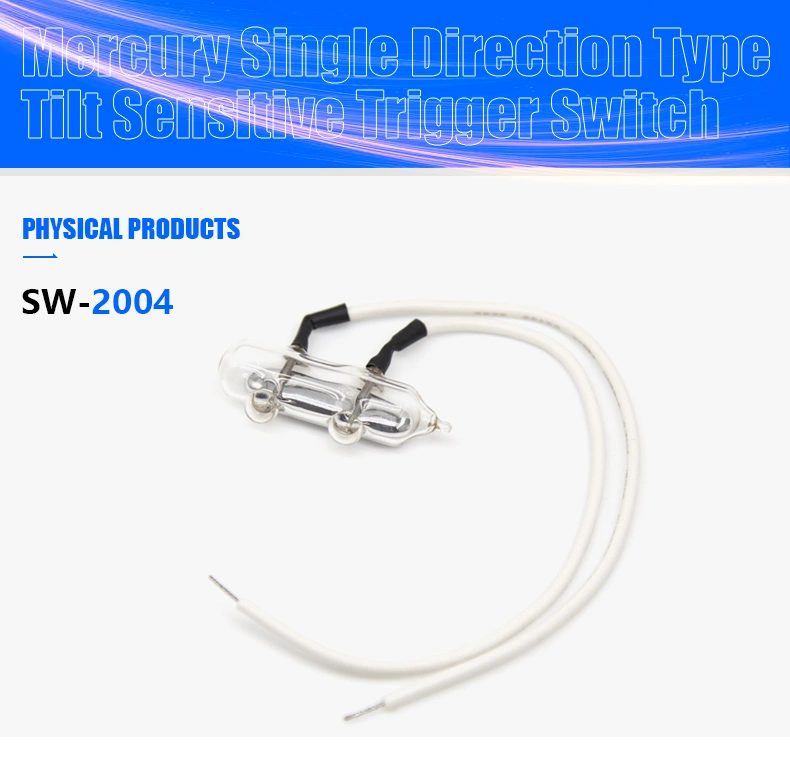

1.SW -2004 is mercury tilt sensitive trigger switch.

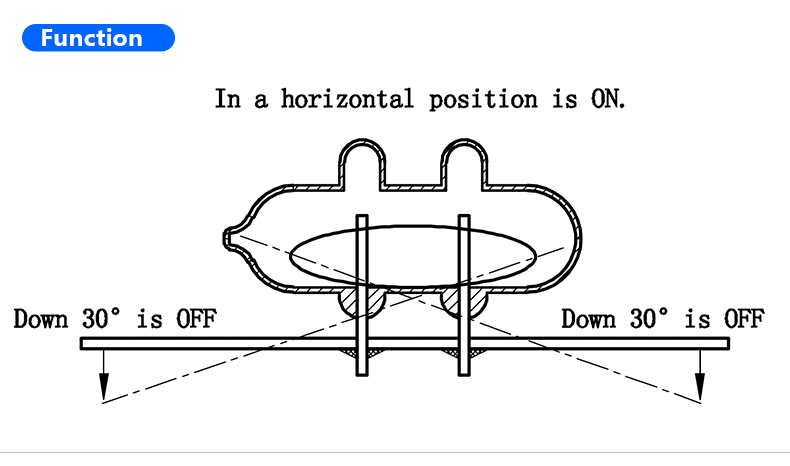

2.When the products in a horizontal position,it will be a closed circuit"ON-stated”.When the product tilt to the left-right direction and more than 30°,it will be a opened circuit “OFF-state".
3.In a horizontal position , be easy to trigger with a shaking . Or not when the guide pin is upward
4.Product completely airtight , waterproof , dustproof.
5.In the normal, switch lifespan can reach 200,000cycles
6.Switch signals simple,circuit is simple in design,economic price.
