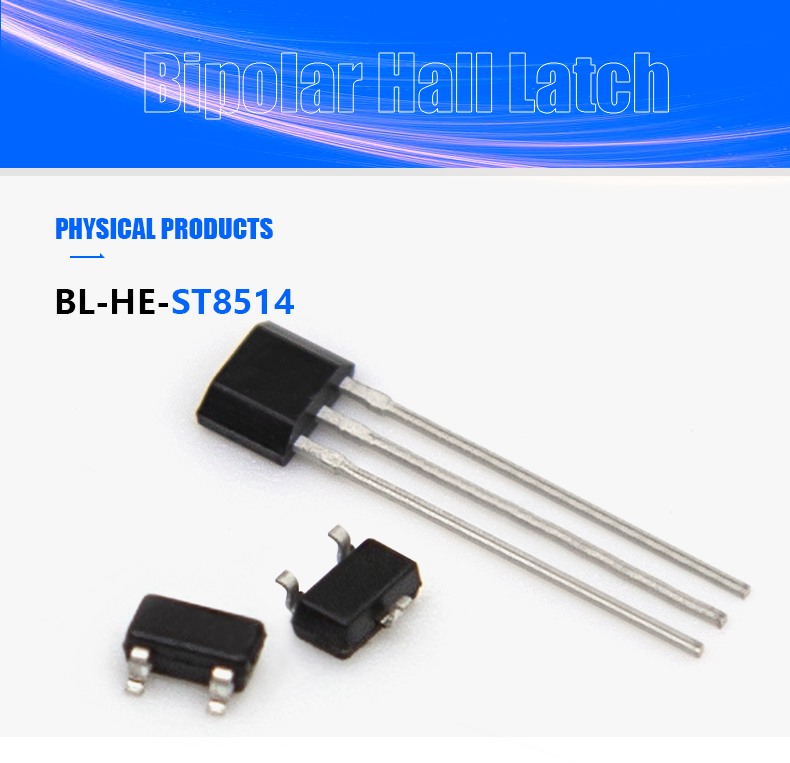

BL-HE-ST8514 Bipolar Hall Effect Switch

BL-HE-ST8514

The bipolar Hall sensor element consists of a Hall plate, a circuit board and a magnet. When a magnet acts on the Hall piece, the carrier in the Hall piece is affected by the Lorentz force and moves in a specific direction inside the Hall piece, thus generating a certain potential difference on both sides of the Hall piece, and the circuit board will The voltage signal at both ends of the Er chip is amplified and processed into a standard signal to output a readable magnetic field strength value. Since bipolar Hall sensors require positive and negative polarity power supplies, the wiring positions of "+" and "-" polarity are usually marked on the interface.

minimum order

1 piece

Quantity:

Contact Now

add to cart

The bipolar Hall switch element consists of a Hall plate, a circuit board and a magnet. When a magnet acts on the Hall piece, the carrier in the Hall piece is affected by the Lorentz force and moves in a specific direction inside the Hall piece, thus generating a certain potential difference on both sides of the Hall piece, and the circuit board will The voltage signal at both ends of the Er chip is amplified and processed into a standard signal to output a readable magnetic field strength value. Since bipolar Hall sensors require positive and negative polarity power supplies, the wiring positions of"+"and"-"polarity are usually marked on the interface.

Model Number: BL-HE-ST8514
Brand Name:GBeelee
Type: Bipolar Hall Effect Switch
Supply Voltage:50V
Supply current:10mA
Applied output voltage:30V
Output Curent:40mA
Operating Temperature Range:-40~150 ℃
Storage Temperature Rang:-40~150 ℃

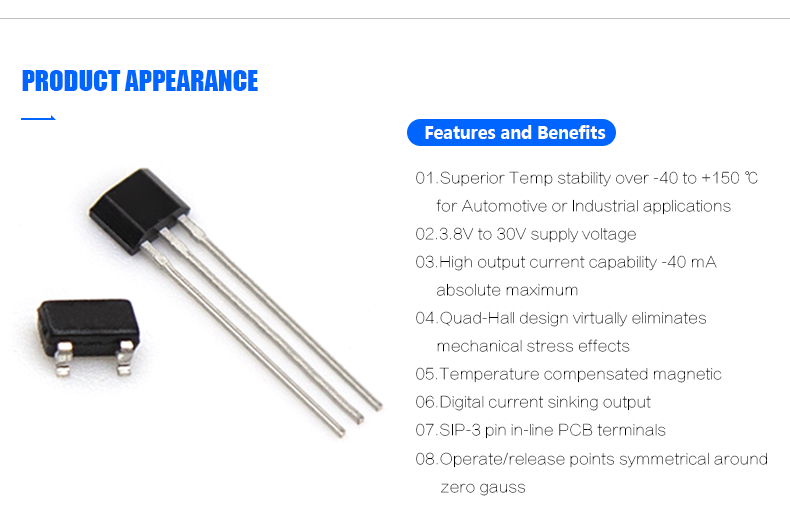

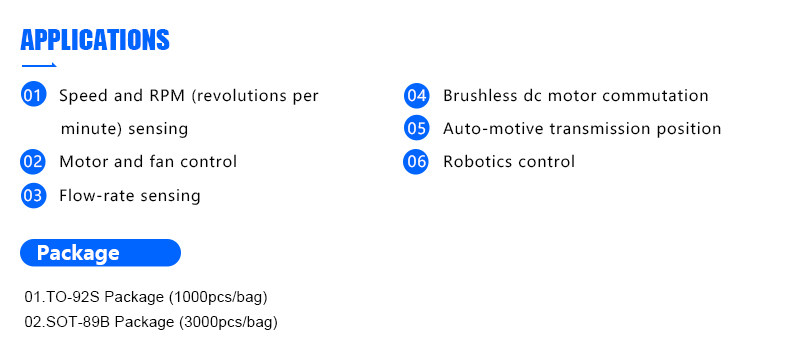

01、This Bipolar Hall effect switch is monolithic integrated circuits with tighter magnetic specifications, designed to operate continuously over extended temperatures to +150°, and is more stable with both temperature and supply voltage changes. The negative compensation slope is optimized to match the negative temperature coefficient of low cost magnets.

02、Band gap regulation provides extremely stable operation over 3.8 to 30 VDC supply voltage range. BL-HE-ST8514 Hall Switch is capable of continuous 40 mA sinking output, and may be cycled as high as 60 mA maximum

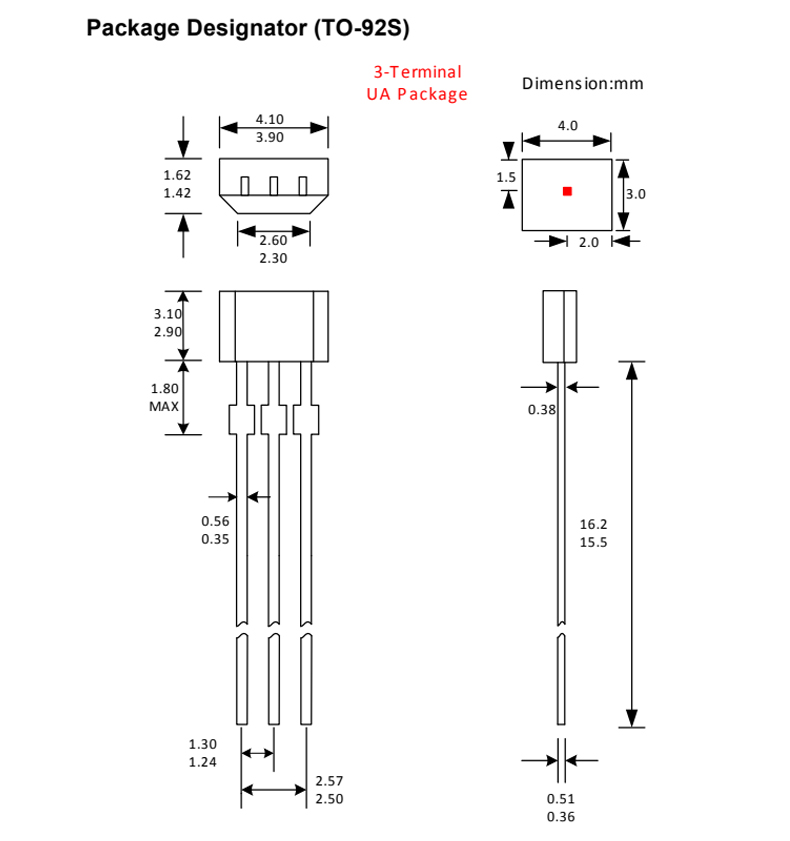

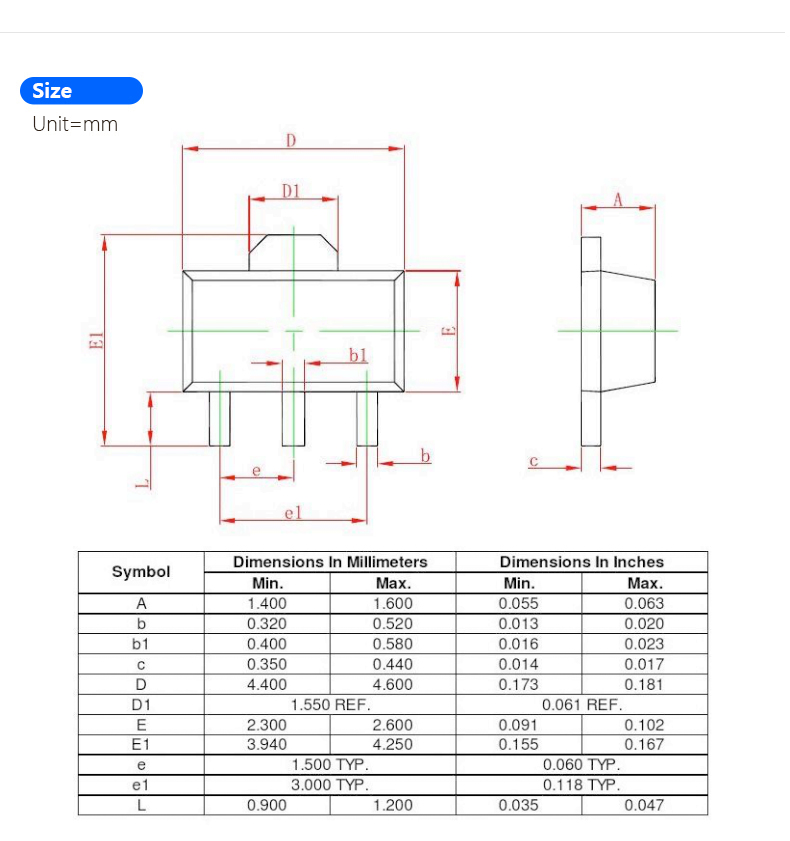

(At 4.5v to 24V with 20mA load unless otherwise noted.)
Parameter	Condition	Min	Typ	Max	Units
Supply voltage	—	3.8	—	30.0	V
Supply current	25℃	—	5	10	mA
Output current	—	—	40	—	mA
Vsat at 20mA	25℃	—	—	0.4	V
Output leakage	—	—	—	10.0	μA
Rise time	25℃	—	0.2	1.5	μS
Fall time	25℃	—	0.5	1.5	μS
Operating temperature	—	-40	—	150	℃
Storage temperature	—	-40	—	150	℃

1.Q:Can I get sample from you?

A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.

2.Q:Do you accept customization?

A:Yes,customization is acceptable,please contact our sales staffs for consult.

3.Q:Can you provide help for technical issues?

A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us

4.Q:How many types of switches do you have,and what about your quality?

A:We have 10 different types of switches for your choice,all our products is passed the ROHS and REACH,please trust we definitely could meet your quality stander.

5.Q:What are the advantages of your photoelectric switch?

A:Our photoelectric switch is non-mechanical triggering makes the signal more stable and reliable,and precision built-in angle guide structure,high triggering angle consistency.
