Magnetic Sensors

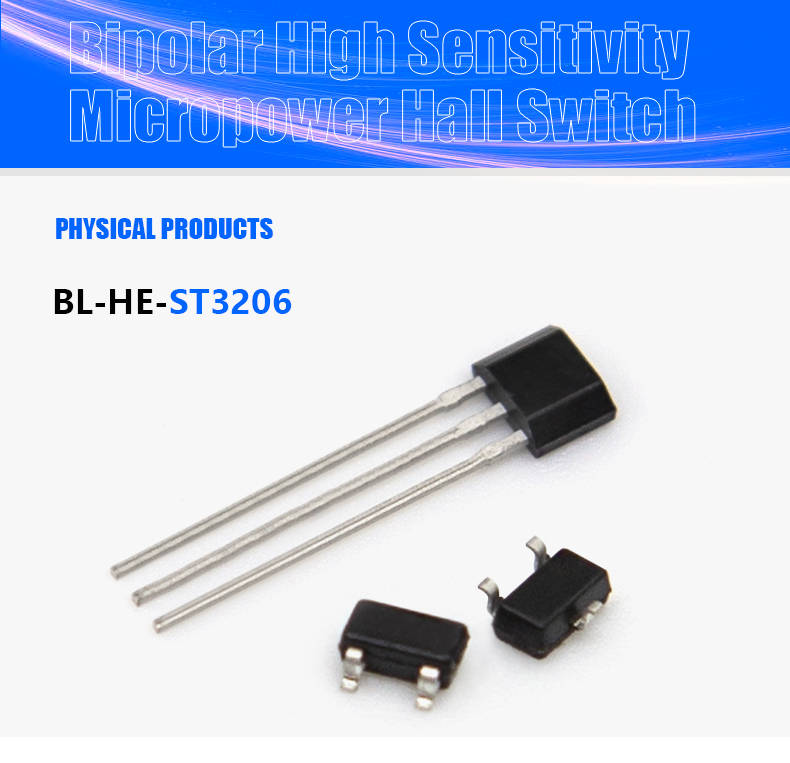

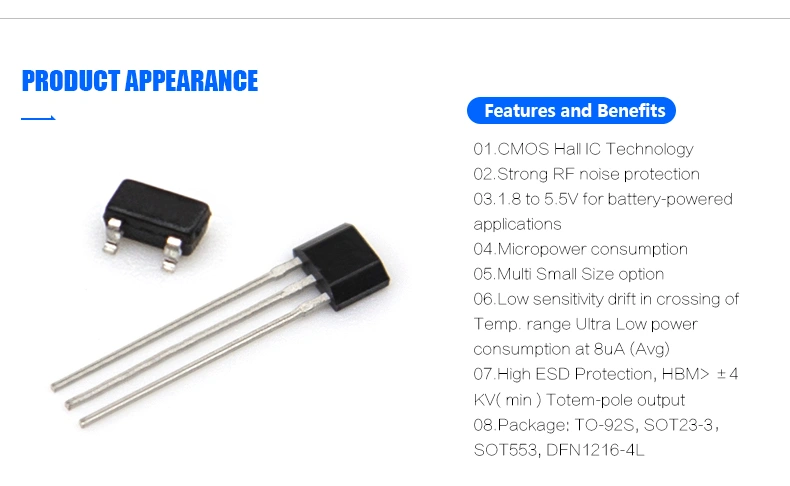

Magnetic Sensors 2.5-38V BL-HE-ST3206 CMOS Bipolar High Sensitivity Micropower Hall Sensor

BL-HE-ST3206
minimum order
1 piece
Quantity:
Contact Now
add to cart
  • Model Number:BL-HE-ST3206
  • Type:Strong RF noise protection
  • Place of Origin:Guangdong, China
  • Brand Name:GBeelee
  • Use:Micropower consumption
  • Theory:CMOS Hall IC Technology
  • Output:HBM> +/- 4KV( min ) Totem-pole output
  • Supply Voltage(operating):6 V
  • Supply Current:1mA
  • Output Voltage:6 V
  • Output Curent:1mA
  • Operating Temperature Range:-40 to 85 ℃
  • Storage Temperature Rang:-50 to 150 ℃
  • ESD Sensitivity:4000 V
  • Operating voltage:1.8-5.5V
  • Output High Voltage:VDD-0.2
  • Output Low Voltage:0.2
  • Description:Hall sensor






01.The BL-HE-ST3206 is fabricated from mixed signal CMOS technology. It internally includes an on-chip Hall voltage generator, a voltage regulator for operation with supply voltages of 1.8 to 5.5V, a sleep/awake logic for low power consumption, temperature compensation circuitry, small-signal amplifier, Hall sensor with dynamic offset cancellation system, Schmitt trigger and an open-drain output. A south pole of sufficient strength will turn the sensor output on. The output will be turned off under no magnetic field. While the magnetic flux density (B) is larger than operating point (Bop), the output will be turned on (low), the output is held until B is lower than release point (Brp), and then turned off.


02.The total power consumption in normal operation is typically 15µW with a 3.3V power source. Operating temperature range of the BL-HE-ST3206 is from -40°C to 85°C.






































































































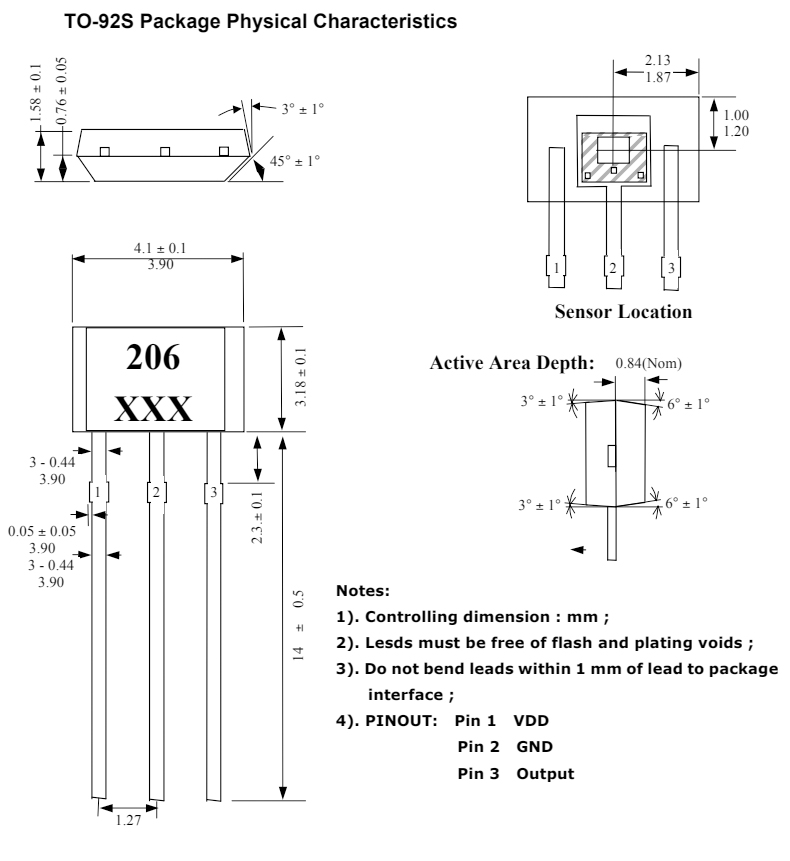

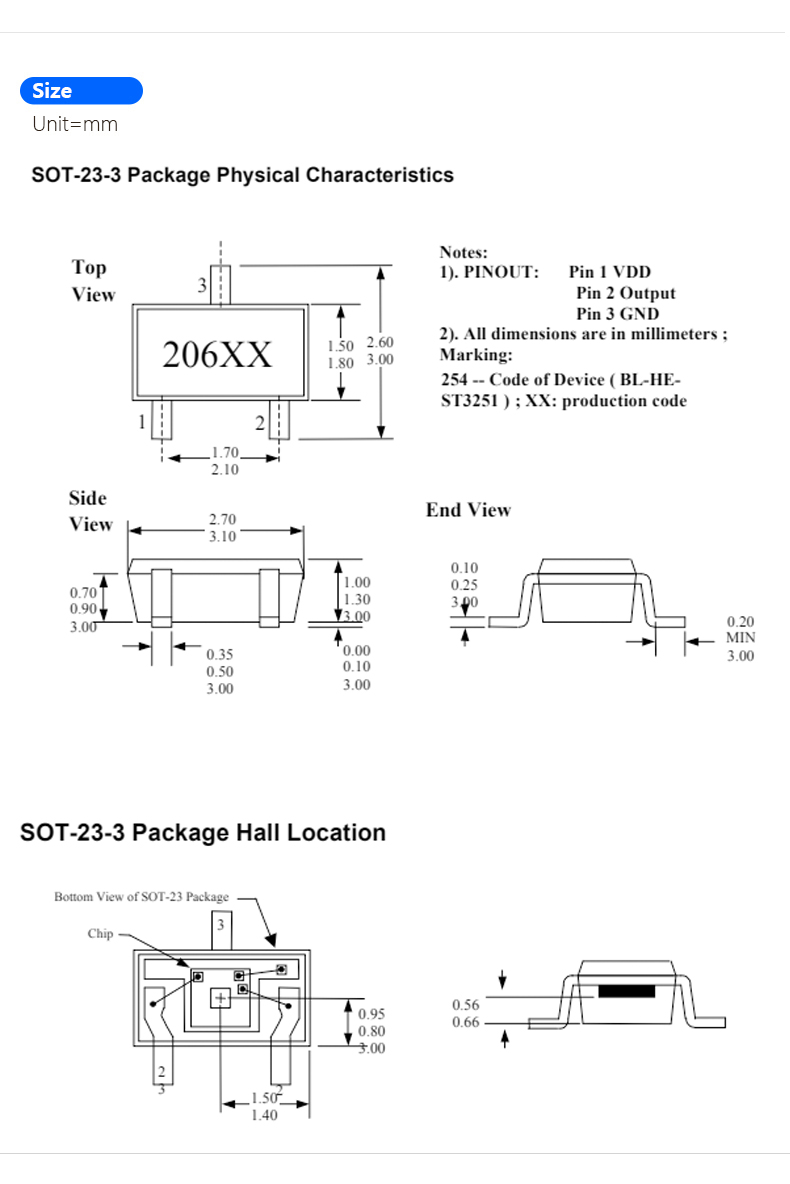

SymbolTest ConditionsMinTypMaxUnits
VDDOperating1.83.35.5V
VOHBVDD-0.2--
VOLBopS--0.2
IDD1(AVG)VDD=1.8V, Average-5.0-µA
IDD1(EN)VDD=1.8V, During Startup Time Value-1.0-mA
IDD1(DIS)VDD=1.8V, During Standby Time Value-3.00-µA
IDD1(AVG)VDD=3.0V, Average-8.0-µA
IDD1(EN)VDD=3.0V, During Startup Time Value-1.5 -mA
IDD1(DIS)VDD=3.0V, During Standby Time Value-5.0-µA
TAWOperating-25-µS
TSLOperating-810mS
