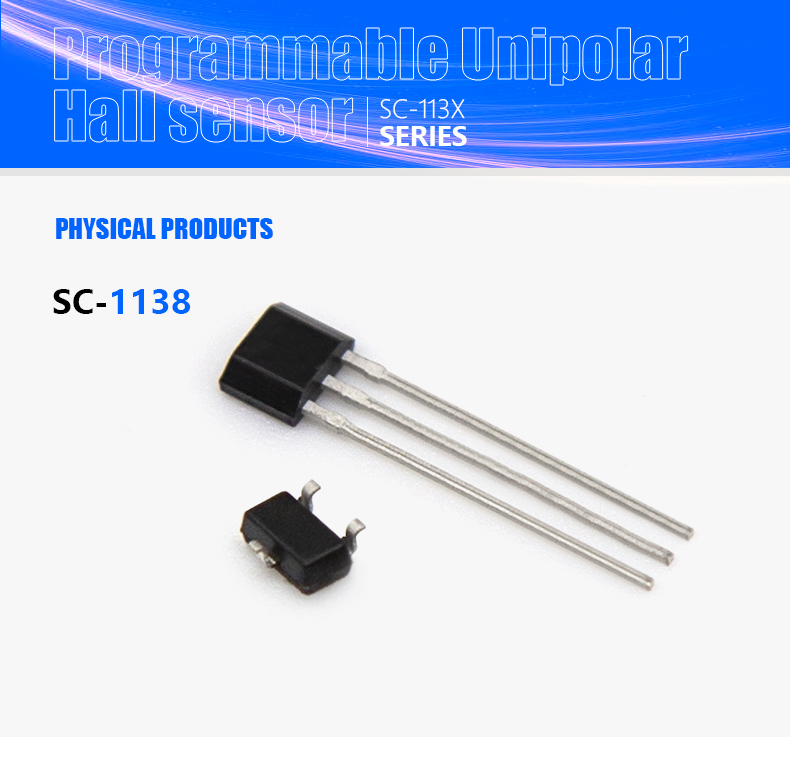

SC135 Magnetic Control Hall Switch Rotation Counter Rotation Position Detection Hall IC

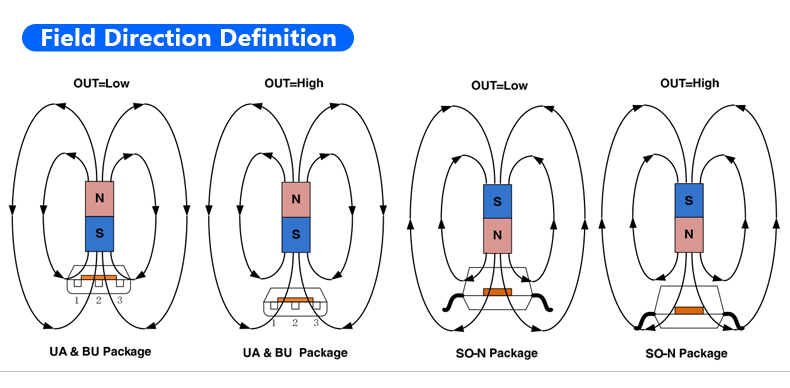

The voltage output of the linear Hall IC accurately tracks changes in magnetic flux density. In static state (no magnetic field), theoretically, the output of Hall IC should be equal to half of the power supply voltage within the operating voltage and operating temperature range. Increasing the south pole magnetic field will increase the voltage from its static voltage. Conversely, increasing the magnetic field of the North Pole will increase the voltage from its static voltage. These components can measure the angle, proximity, movement, and magnetic flux of the current. They can reflect mechanical events in a magnetically driven way.

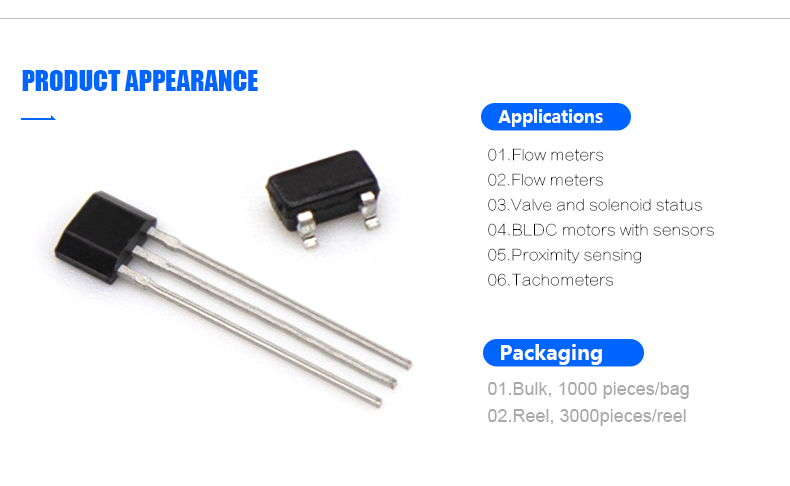

SC135 Magnetic control Hall switch Rotation counter rotation position detection Hall IC used in DC brushless motors, mobile phones and notebook computers, home appliances with ROHS, ISO9001

Output terminal voltage:-0.5-60

• Product name:Hall sensor Switch
• Output terminal current sink:ISINK 0-50
• Material::chip
• Operating ambient temperature:-40+150TA
• Maximum junction temperature:-55 +165
• Power supply voltage:-40 +60
• Item::Vertical mounted PCB
• Voltage::2.5-24v
• Keywords:Hall sensor
• Whether the smart:yes
• Place of Origin:CN;GUA
• Certification:ROHS
• Brand Name:BeeLee
• Model Number:SC1135
• Max. Current:<20mA
• Max. Voltage:<12V

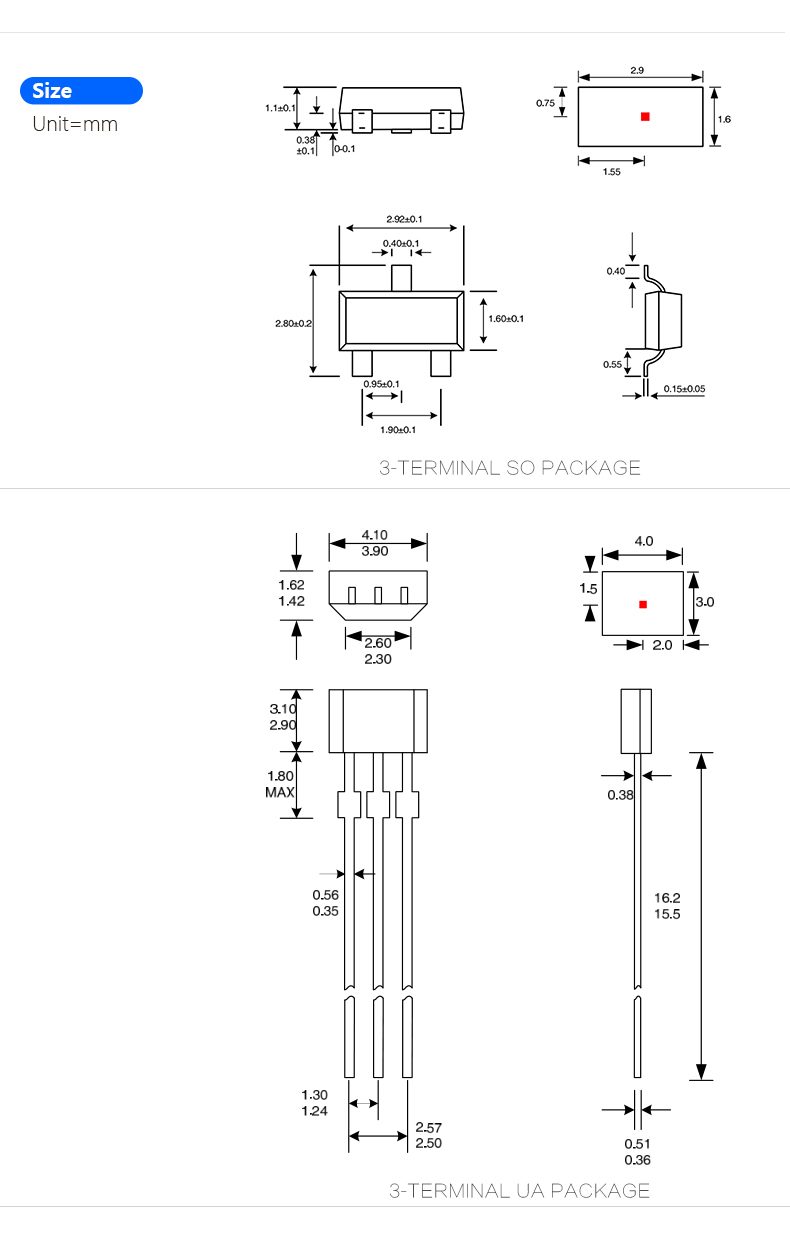

01.The SC113X Hall-Effect switch series is monolithic integrated circuits with tighter magnetic
specifications, designed to operate continuously over extended temperatures to +150℃, and are
more stable with both temperature and supply voltage changes. The negative compensation slope
is optimized to match the negative temperature coefficient of low cost magnets.
02.Each device includes a voltage regulator for operation with supply voltages of 3.8 to 40V volts,
quadratic Hall-voltage generator, temperature compensation circuitry, small-signal amplifier,
Schmitt trigger, and an open-collector output to sink up to 40mA.
