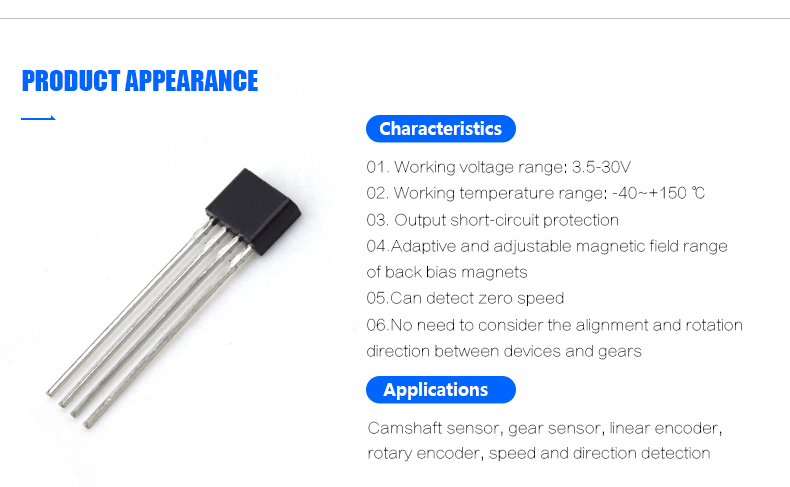

Hall IC for automotive applications Automotive camshaft sensing and other speed sensing Hall Effect Switch Hall Components

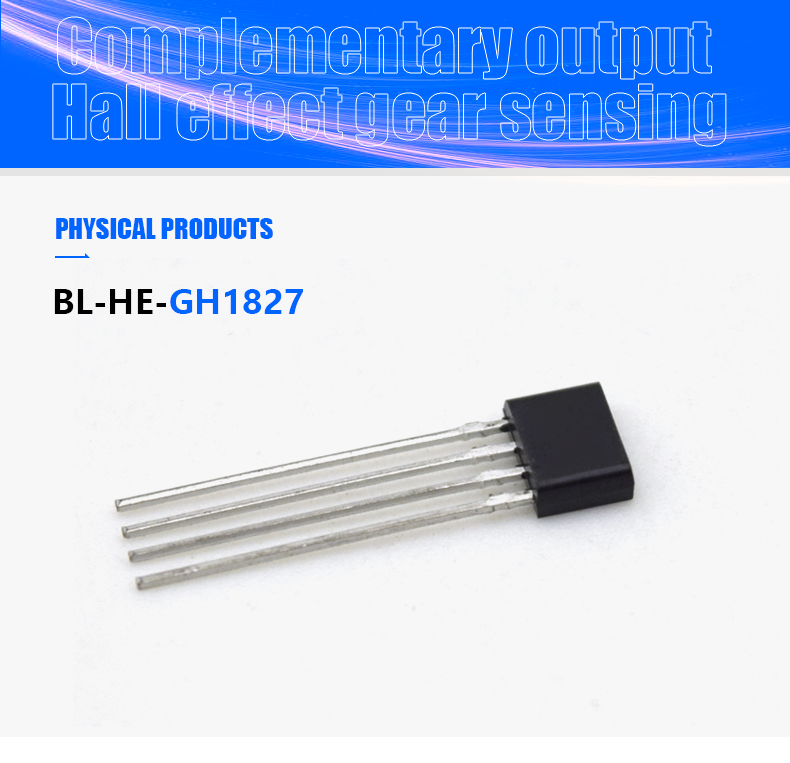

BL-HE-GH1827

minimum order

1 piece

Quantity:

Contact Now

add to cart

Place of Origin:China
Brand Name:GBeeLee
Model Number:BL-HE-GH1827
Application:camshaft sensor
Series:BL-HE-GH
Features:Contact Us
Mounting Type:Contact Us
Description:Contact Us
Manufacturing Date Code:Contact Us
Working voltage range:3.5 V~30 V
range of working temperature:-40~+150℃

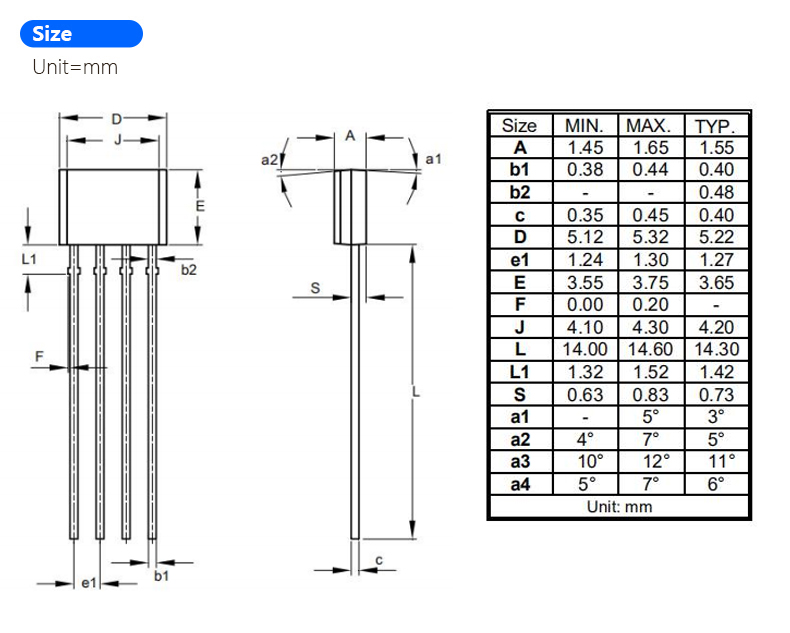

package:UA(SIP-4L/TO-94S)
Power current:1.0-6.0mA
Output high level leakage current:10 uA
Output low level voltage:250/500mV
Output short circuit current:75-175mA
Short circuit protection response time:100-200uS
Back magnetic field strength range:-300~+4000Gs
Magnetic switching point hysteresis:15-30-45Gs

BL-HE-GH1827 is a drain open circuit complementary output structure with short circuit protection. In practical applications, the output end needs to be externally connected with a pull-up resistor. The output switch tube has a maximum current capacity of 50mA, and the output level is easily compatible with any logic circuit.

Parameter	symbol	magnitude	unit
supply voltage	Vdd	-0.3~+40	V
output voltage	VOUT(OFF)	-0.3~+40,Output tube shutdown	V
Output low-level current	IOUT(SINK)	50	mA
Maximum allowable power consumption	PD	150	mW
Operating temperature range	Top	-40~+150	℃
Maximum junction temperature	Tj(max)	+165 (1000 hours)	℃
Storage temperature	Tst	-65~+170	℃

1.Q:Can I get sample from you?

A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.

2.Q:Do you accept customization?

A:Yes,customization is acceptable,please contact our sales staffs for consult.

3.Q:Can you provide help for technical issues?

A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us

4.Q:How many types of switches do you have,and what about your quality?

A:We have 10 different types of switches for your choice,all our products is passed the ROHS and REACH,please trust we definitely could meet your quality stander.

5.Q:What are the advantages of your photoelectric switch?

A:Our photoelectric switch is non-mechanical triggering makes the signal more stable and reliable,and precision built-in angle guide structure,high triggering angle consistency.
