hall effect sensor smd

GBeelee magnetic hall effect sensor apply to PCB hall sensor smd for charging station

BL-HE-GH1271
minimum order
1 piece
Quantity:
Contact Now
add to cart
  • Model Number:BL-HE-GH1271
  • Place of Origin:Guangdong, China
  • Brand Name:Beelee
  • Supply Voltage:7V
  • Reverse Battery Voltage:-0.5V
  • Output Voltage:-0.5V
  • Continuous Output Current:10mA
  • Operating Ambient Temperature:-40~125℃
  • Storage Temperature:-50~150℃
  • Type: Hall Effect Sensor SMD

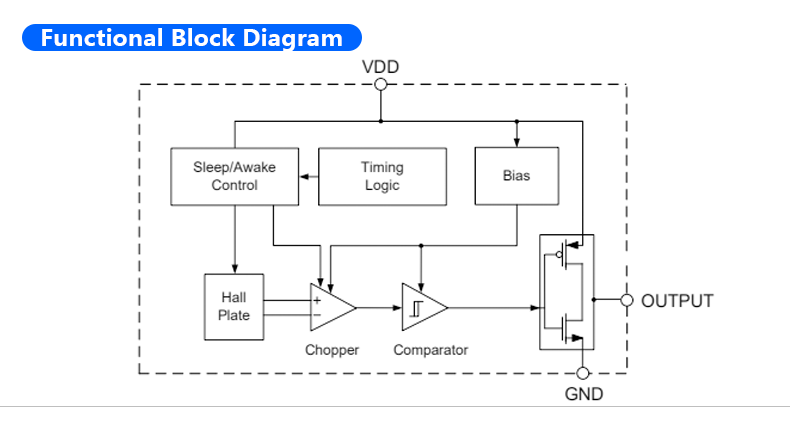

The BL-HE-MT634X family is produced with monolithic technology. Which built AMR sensor & ASIC on one chip. The IC internally includes a Wheatstone bridge with magnetic film, a voltage regulator for operating with supply voltage from 1.8V to 5.5V, a sleep/awake logic for low power consumption requirement, small signal amplifier and Schmitt trigger comparator with dynamic offset cancellation, and an output driver with push-pull output.

01.The BL-HE-MT634X family is produced with monolithic technology. Which built AMR sensor & ASIC on one chip. The IC internally includes a Wheatstone bridge with magnetic film, a voltage regulator for operating with supply voltage from 1.8V to 5.5V, a sleep/awake logic for low power consumption requirement, small signal amplifier and Schmitt trigger comparator with dynamic offset cancellation, and an output driver with push-pull output.

02. When combined with a magnet, it becomes a noncontact switch with low power consumption, high sensitivity and high reliability. A horizontal magnetic
field parallel to the electrode of the package can be detected by an arbitrary polarity.

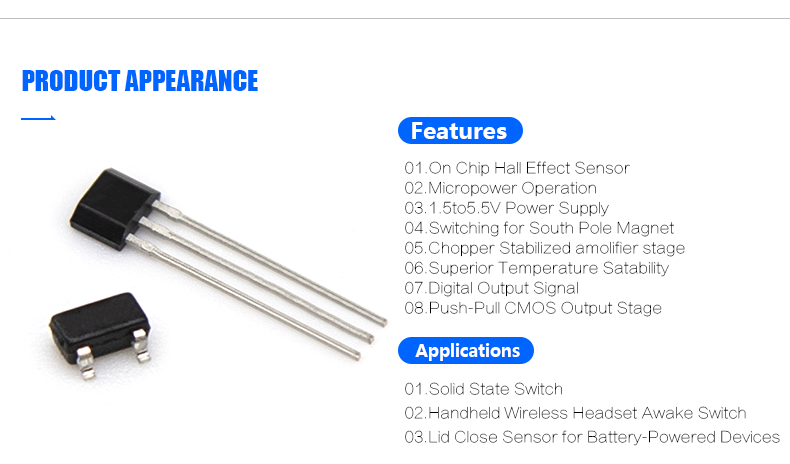

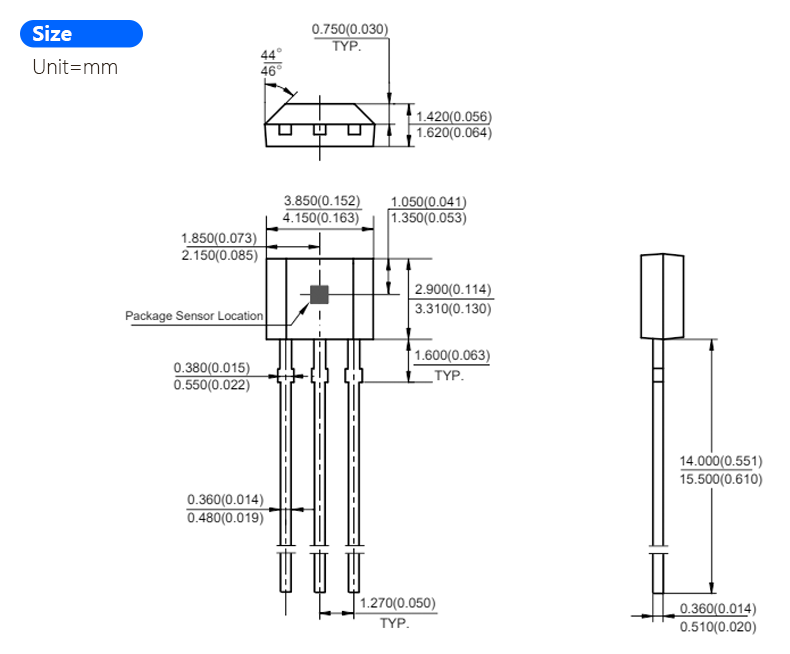

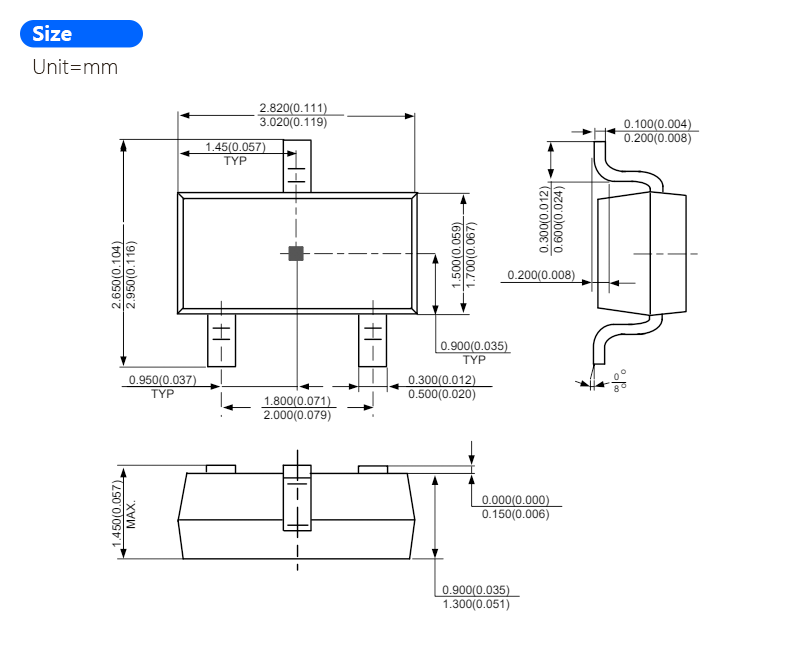

03.The BL-HE-MT634X family provides a variety of packages to customers: SOT-23 for surface mount and flat TO-92 for through-hole mount. All packages are RoHS compliant.

ParameterSymbolMin.Max.Units
Supply VoltageVCC-7V
Reverse Battery VoltageVRCC-0.5-V
Output Voltage VOUT-0.57V
Continuous Output Current IOUT-10mA
Operating Ambient TemperatureTA-40125℃
Storage Temperature TS-50150℃
Junction TemperatureTJ-165℃
Flux DensityB3000Gs

1.Q:Can I get sample from you?

A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.

2.Q:Do you accept customization?

A:Yes,customization is acceptable,please contact our sales staffs for consult.

3.Q:Can you provide help for technical issues?

A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us
