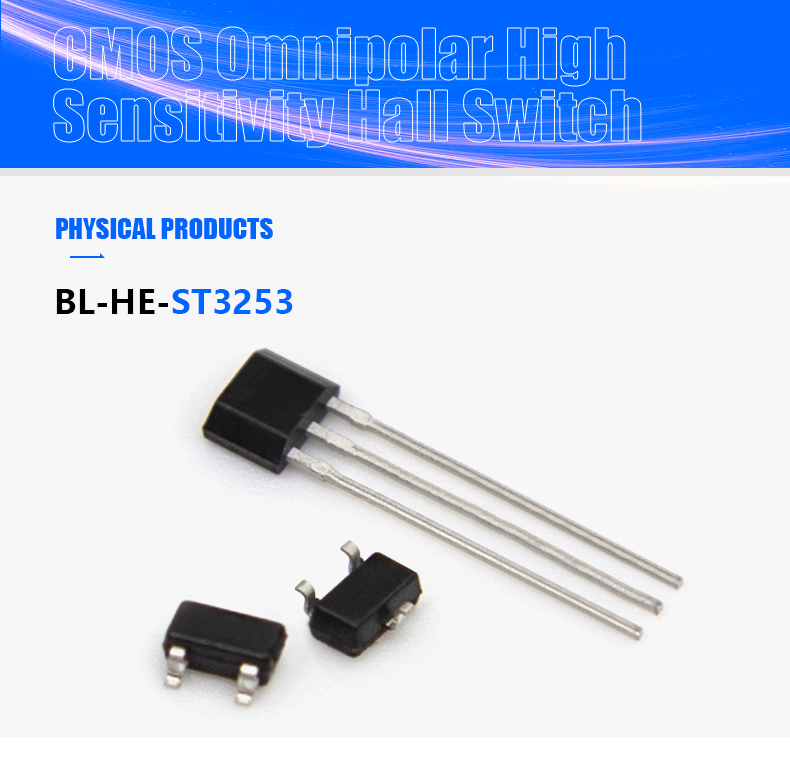

BL-HE-ST3253 electronic Components Hall Effect / Magnetic Sensors New Original Electronic Components Hall Effect Sensor Sot23-3

01.This Hall-effect switch is monolithic integrated circuits with tighter magnetic specifications, designed to operate continuously over extended temperatures to +150°, and is more stable with both temperature and supply voltage changes. The negative compensation slope is optimized to match the negative temperature coefficient of low cost magnets.

02.Band gap regulation provides extremely stable operation over 3.8 to 30 VDC supply voltage range. ST8514 is capable of continuous 40 mA sinking output, and may be cycled as high as 60 mA maximum.

1.Q:Can I get sample from you?

A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.

2.Q:Do you accept customization?

A:Yes,customization is acceptable,please contact our sales staffs for consult.

3.Q:Can you provide help for technical issues?

A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us

4.Q:How many types of switches do you have,and what about your quality?

A:We have 10 different types of switches for your choice,all our products is passed the ROHS and REACH,please trust we definitely could meet your quality stander.

5.Q:What are the advantages of your photoelectric switch?

A:Our photoelectric switch is non-mechanical triggering makes the signal more stable and reliable,and precision built-in angle guide structure,high triggering angle consistency.
