Hall sensor switch BL-HE-AH49E low power consumption high sensitivity unipolar hall effect current sensor

• Whether the smart:NO
• Place of Origin:Guangdong, China
• Brand Name:BeeLee
• Model Number:BL-HE-AH49E
• Max. Current:6mA
• Max. Voltage:6V
• Power supply voltage:4.5 V~6 V
• Static voltage:2.3-2.7V
• Supply current:-15~15mV
• sensitivity:3-8mA
• Sensitivity temperature drift:14~20mV/mT
• Linear region:0.06~0.18℃/%
• Reverse supply voltage:-90~+90mT
• Certification:ISO9001

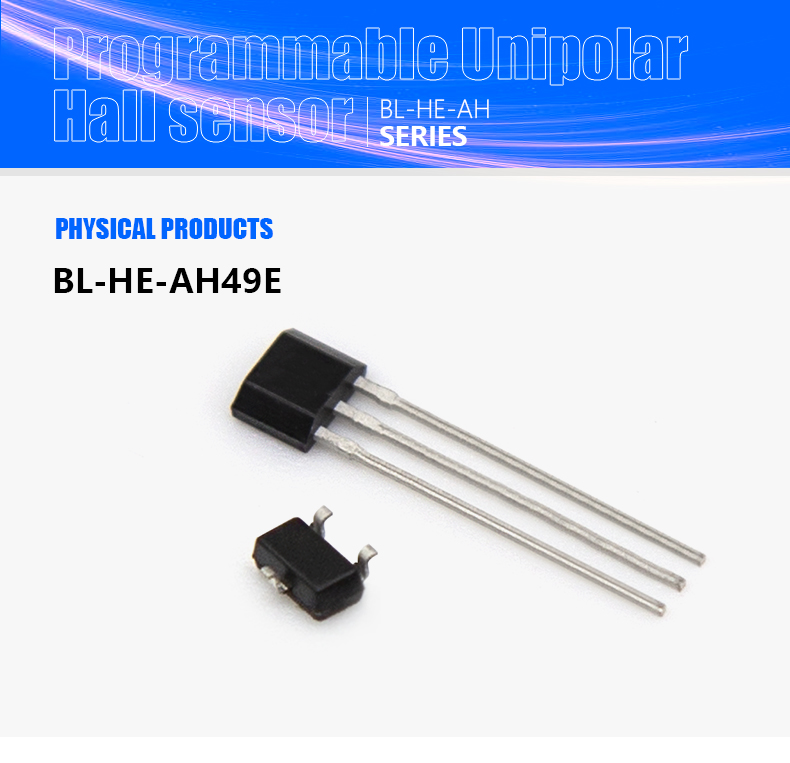

BeeLee Hall Switch Sensor Switch

Product Description

Bl-HE-AH49E Hall sensor is a Hall integrated circuit with analog signal output. The output voltage increases with The intensity of the magnetic field varies. The sensor chip has built-in reverse voltage protector, voltage regulator, temperature compensation circuit Hall voltage generator, signal amplifier and other circuit units. Excellent voltage regulator and temperature compensation circuit ensure Ensure that the sensor works stably in a wide voltage range and temperature range, and the reverse voltage protection circuit avoids the sensor Damaged by reverse voltage.

Electrical Characteristics

1.Q:Can I get sample from you?

A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.

2.Q:Do you accept customization?

A:Yes,customization is acceptable,please contact our sales staffs for consult.

3.Q:Can you provide help for technical issues?

A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us

4.Q:How many types of switches do you have,and what about your quality?

A:We have 10 different types of switches for your choice,all our products is passed the ROHS and REACH,please trust we definitely could meet your quality stander.

5.Q:What are the advantages of your photoelectric switch?

A:Our photoelectric switch is non-mechanical triggering makes the signal more stable and reliable,and precision built-in angle guide structure,high triggering angle consistency.
