high sensitivity hall switch

Beelee linear hall effect sensor smt type high sensitivity hall switch for electronic dictionary PCB

BL-HE-MT613X
minimum order
1 piece
Quantity:
Contact Now
add to cart
  • Model Number:BL-HE-MT613X
  • Place of Origin:Guangdong, China
  • Brand Name:Beelee
  • Supply Voltage:7V
  • Reverse Battery Voltage:-0.4V
  • Output Voltage:7V
  • Continuous Output Current:20mA
  • Operating Ambient Temperature:125 ℃
  • Storage Temperature:-50 ℃-150℃
  • Junction Temperature:165 ℃
  • Magnetic Flux Density:1200Gs

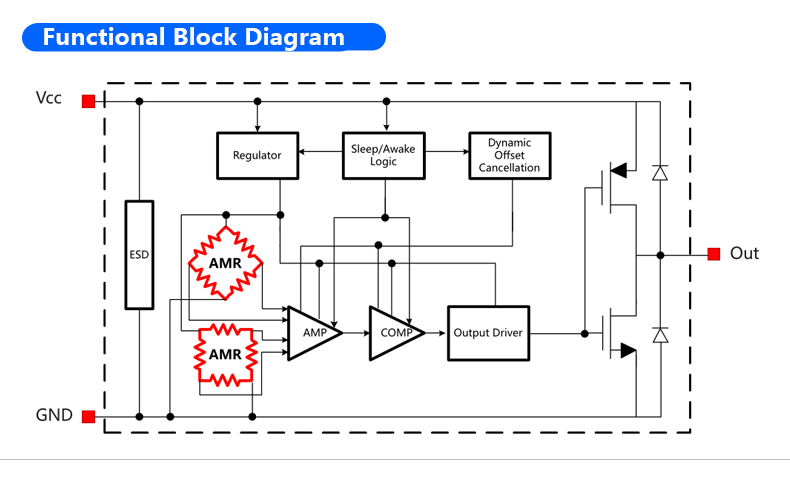

The BL-HE-MT613X family is produced with monolithic technology,which builds AMR sensor & ASIC on one chip. The IC internally includes a wheatstone bridge with magnetic film, a current regulator for operating with supply voltage from 1.65V to 5.0V, a sleep/awake logic for low power consumption requirement, small signal amplifier and Schmitt trigger comparator with dynamic offset cancellation, and an output driver with push pull output.


01.The BL-HE-MT613X family is produced with monolithic technology,which builds AMR sensor & ASIC on one chip. The IC internally includes a wheatstone bridge with magnetic film, a current regulator for operating with supply voltage from 1.65V to 5.0V, a sleep/awake logic for low power consumption requirement, small signal amplifier and Schmitt trigger comparator with dynamic offset cancellation, and an output driver with push pull output.


02.When combined with a magnet, it becomes a noncontact switch with low power consumption, high sensitivity and high reliability. All directions of horizontal magnetic field parallel to the electrode of the package can be detected by an arbitrary polarity.

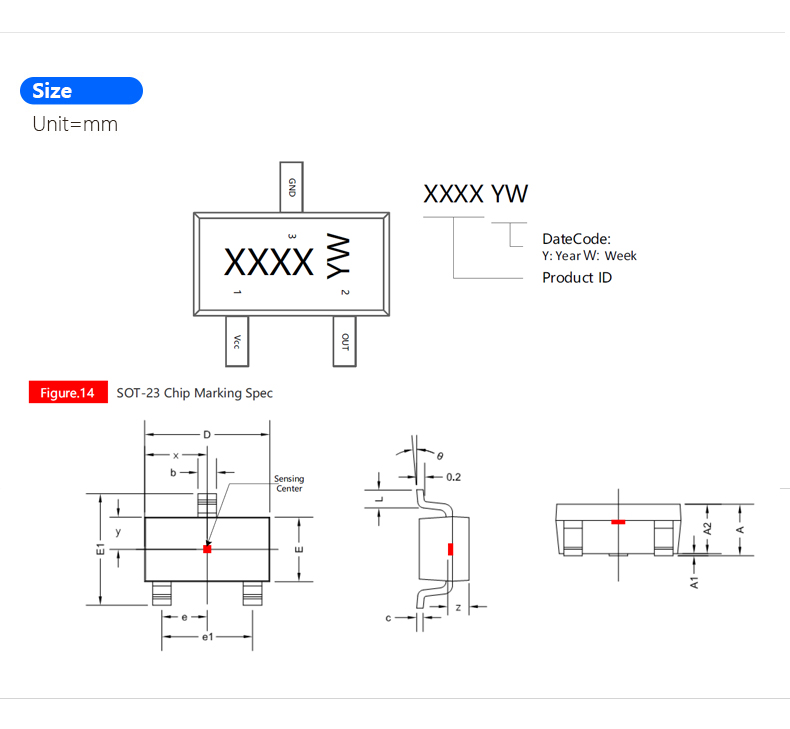

03.The BL-HE-MT613X family provide SOT-23 for surface mount,RoHS compliant.




































































ParameterSymbol  Min. Max.  Units
Supply VoltageVCC-7V
Reverse Battery VoltageVRCC-0.4-V
Output Voltage VOUT-7V
Continuous Output Current IOUT -20mA
Operating Ambient TemperatureTA 0125 ℃
Storage Temperature TS-50150 ℃
Junction TemperatureTJ-165 ℃
Magnetic Flux DensityB1200Gs



1.Q:Can I get sample from you?


A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.


2.Q:Do you accept customization?


A:Yes,customization is acceptable,please contact our sales staffs for consult.


3.Q:Can you provide help for technical issues?


A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us
