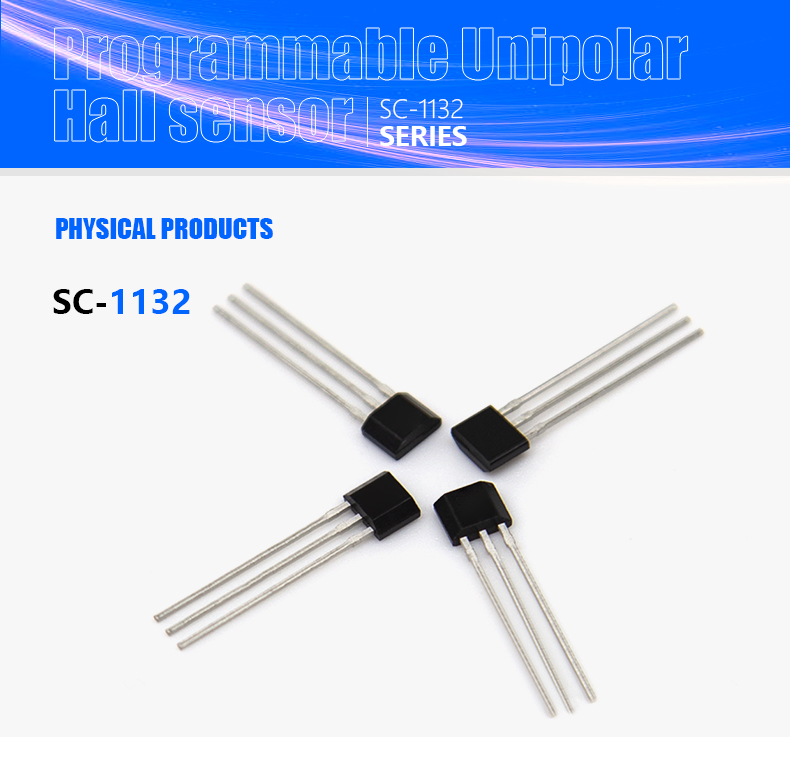

BL-SC1132 Dip type position detecting Door lock hall sensor

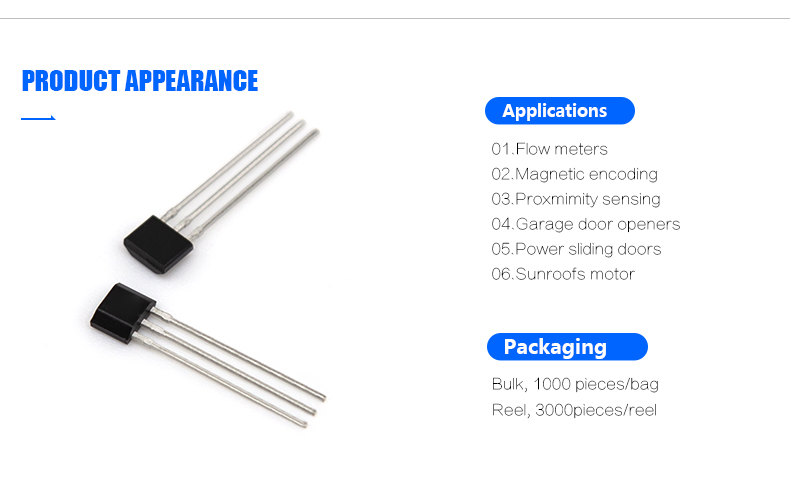

• BL-SC1132 hall sensor Dip type position detecting used in Door lock , car window, Electric toothbrushes, sterilizers, flip phones,with ISO9001, RoHs etc
• Model:BL-SC1132
• Type:hall sensor
• Product name:Door lock hall sensor
• Certificate:ROHS ISO9001
• Name:Door lock hall sensor
• Keywords:hall sensor
• Application:Door lock
• Voltage:6V
• Item:car window
• Brand:BeeLee
• Place of Origin:CN
• Brand Name:BEELEE
• Model Number:BL-SC1132

The BL-SC1132 Hall-Effect switch series is monolithic integrated circuits with tighter magnetic specifications, designed to operate continuously over extended temperatures to +150℃, and are more stable with both temperature and supply voltage changes. The negative compensation slope is optimized to match the negative temperature coefficient of low
cost magnets.

01.The SC1132 Hall-Effect switch series is monolithic integrated circuits with tighter magnetic
specifications, designed to operate continuously over extended temperatures to +150℃, and are
more stable with both temperature and supply voltage changes. The negative compensation slope
is optimized to match the negative temperature coefficient of low cost magnets.

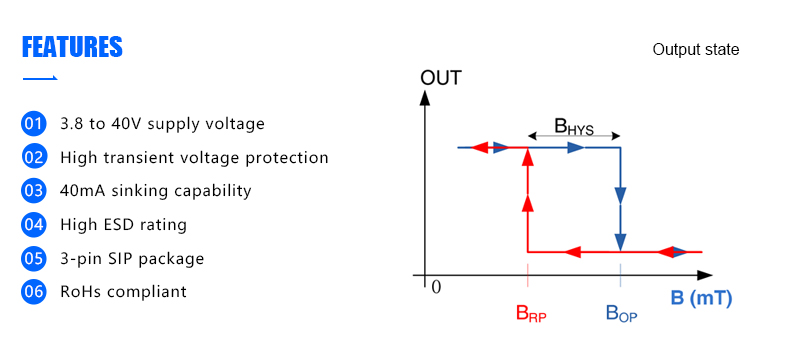

02.Each device includes a voltage regulator for operation with supply voltages of 3.8 to 40V volts,
quadratic Hall-voltage generator, temperature compensation circuitry, small-signal amplifier,
Schmitt trigger, and an open-collector output to sink up to 40mA.
