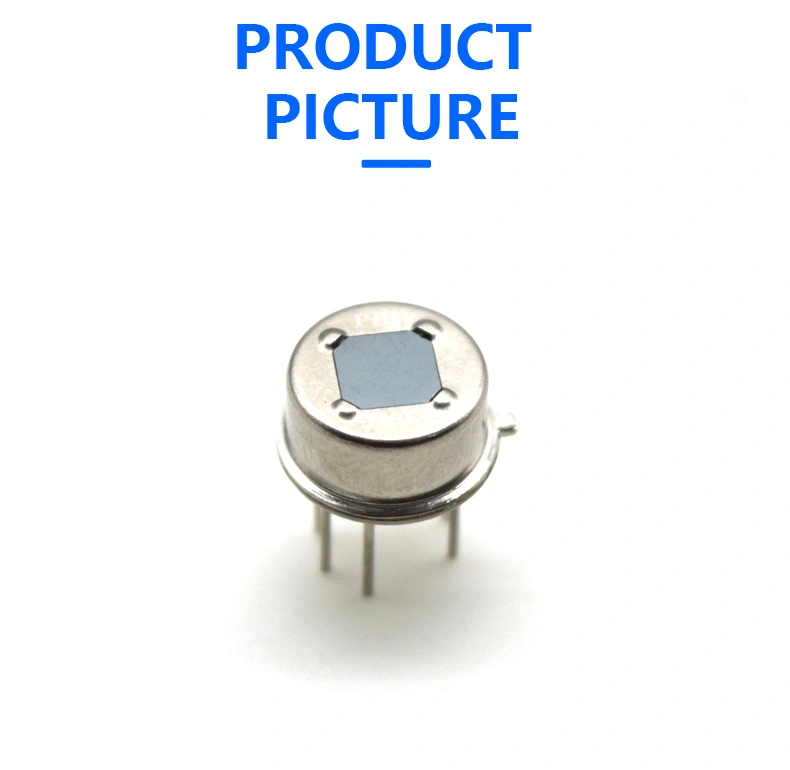

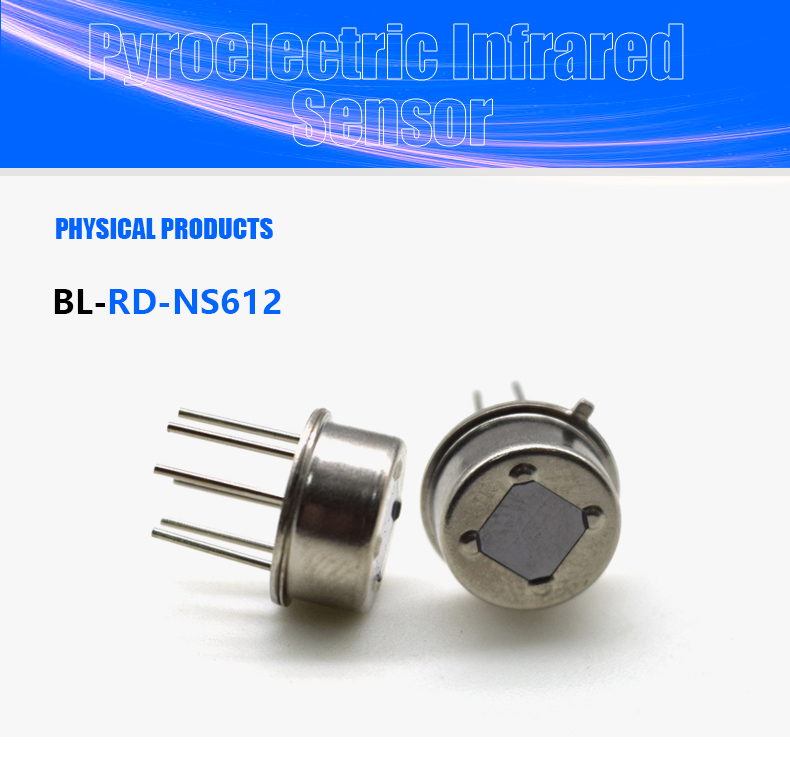

BL-RD-NS612 Human Pyroelectric Infrared Sensor
BL-RD-NS612
minimum order
1 piece
Quantity:
- Series:Pyroelectric Infrared Sensor
- Features:Digital signal processing, Contact Us
- Mounting Type:Digital signal output, Contact Us
- Description:BL-RD-NS612
- Model Number:BL-RD-NS612
- Place of Origin:Guangdong, China
- Brand Name:GBeelee
- Usage:mobile phone,WiFi,etc.
- Theory:Digital signal processing
- Output:no drift and aging
- Brand:Contact Us
- Amplifier Type:Contact Us
- Voltage - Supply:2.2~3.7V
- Output Type:0V
- Current - Supply:9μA
- Operating Temperature:-30~70
- Resolution (Bits):%
- Current - Supply (Max):15μA
- Packaging:Contact Us
- Frequency:7
- Output Configuration:0.44Hz
- Current:12μA
- Voltage Rating:0.4V~1.2V
- Operating Force:Contact Us
- Oxygen Range:Contact Us
- Humidity Range:Contact Us
- Size:Contact Us

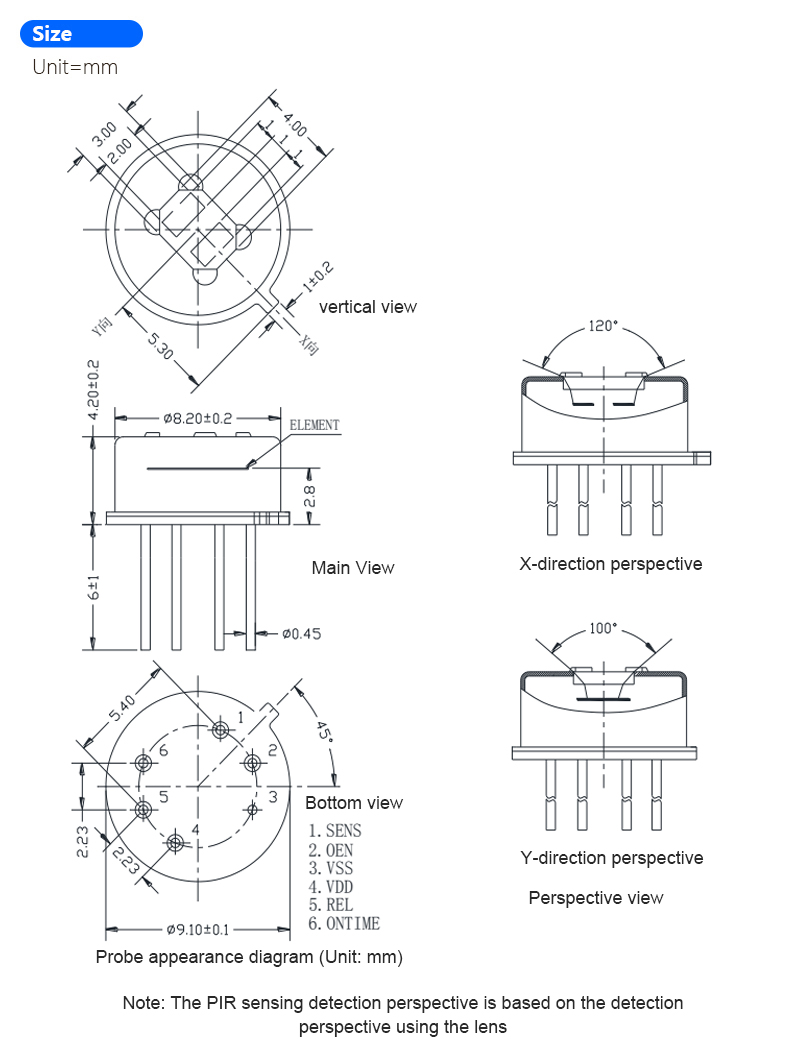

- Size / Dimension:3*4mm
- Measuring Range:Contact Us
- Resolution:Contact Us
- Interface:Contact Us
- Technology:Contact Us
- Sensing Range:12M (lens SB-F-02)
- Current - Output (Max):2.2-3.7V
- Bandwidth:Contact Us
- Function:Contact Us
- Acceleration Range:Contact Us
- Sensitivity (LSB/g):100μV
- Sensitivity (mV/g):100~1900μV
- Sensitivity (LSB/(°/s)):100~1900μV
- Sensitivity (mV/°/s):100~1900μV
- Sensing Distance:12M (lens SB-F-02)
- Current - Output:-10~10MA
- Power - Rated:Contact Us
- Voltage - Output Difference (Typ) @ Distance:Contact Us
- Voltage - Output (Typ) @ Distance:Contact Us
- Voltage - Max:Contact Us
- Voltage - DC Reverse (Vr) (Max):Contact Us
- Power - Max:Contact Us
- Sensing Object:Contact Us
- Sensing Light:Contact Us
- Resistance:Contact Us
- Resistance Tolerance:Contact Us
- Sensing Temperature - Local:Contact Us
- Sensing Temperature - Remote:Contact Us
- Current Rating - AC:Contact Us
- Current Rating - DC:Contact Us
- Tolerance:Contact Us
- Voltage - Rated:Contact Us
- Flow Sensor Type:Contact Us
- Voltage - Input:Contact Us
- Application:Contact Us
- Output Function:Contact Us
- D/C:Contact Us
- Cross Reference:Contact Us
- Operating Temp:-30~70 ℃
- Current into any pin:-100~100 mA
- Storage Temp:-40 ~80 ℃
- Regular voltage:2.2~3.7 V
- Supply current:9 ~11 μA
- Sensitivity threshold:90~2000 μV
- Detective Wavelength:5~14 um
- Output current low:10mA
- Output current high:-10mA
- Low REL output locking time:2s

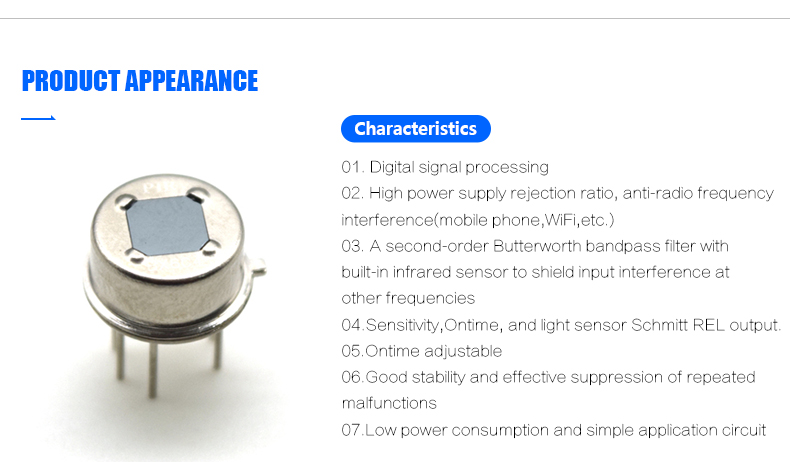

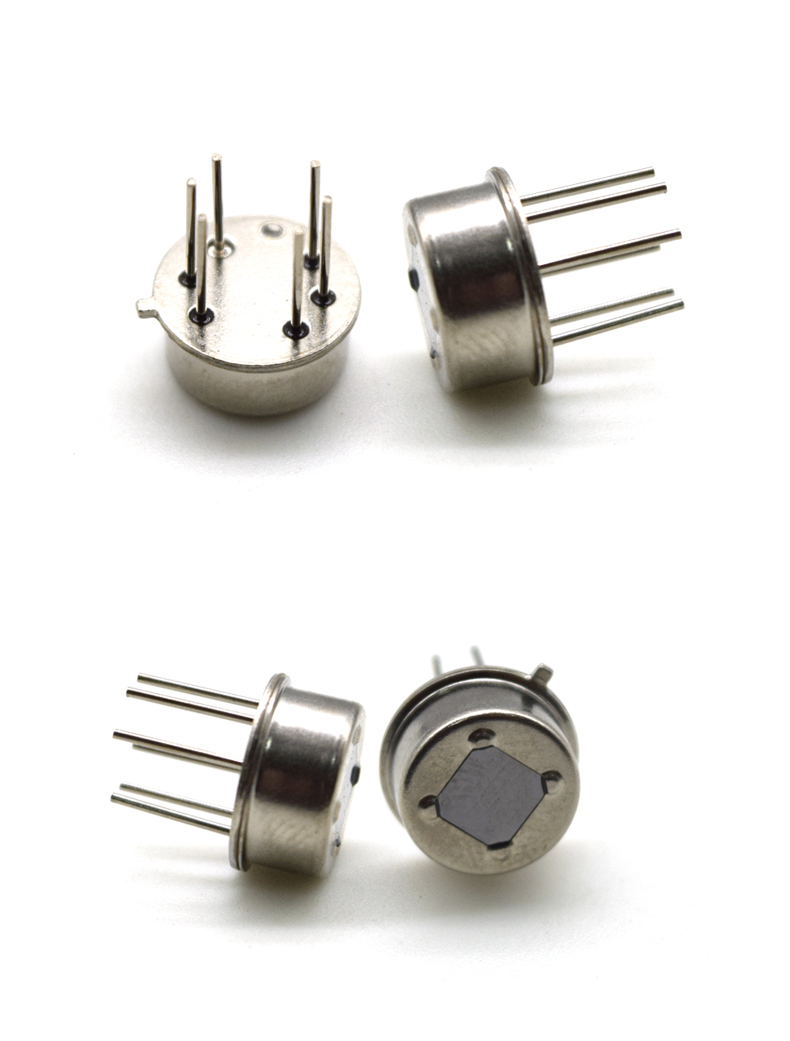

BL-RD-NS612 is a type of PIR sensor which integrates a digital control circuit and a human detection sensor in an electromagenetic shielding housing.The human body detection sensor couples the sensed human movement signal to the digital intelligent integrated circuit chip through a very high impedance differential input circuit, and the digital intelligent integrated circuit converts the signal into an ADC digital signal.When the PIR signal exceeds the selected digital threshold, there is a timed REL level output. OEN enable terminal enables REL output or automatic control through light sensor. Sensitivity and time parameters are set through a partial voltage resistor. All the signal processing is done on the chip.
1.Absolute Maximum Ratings | ||||||||||||
Electrical characteristics(beyond those listed below may cause permanent damage to the device. Exposure to absolute maximum ratings may affect the device reliability. ) | ||||||||||||
Parameter | Symbol | Min | Max | Unit | Remarks | |||||||
Operating Temp | TST | -30 | 70 | ℃ | ||||||||
Current into any pin | Into | -100 | 100 | mA | ||||||||
Storage Temp | TST | -40 | 80 | ℃ | ||||||||
2. Operating Conditions (T=25°C, Vdd=3V，unless stated otherwise) | ||||||||||||
Parameter | Symbol | Min | Type | Max | Unit | Remarks | ||||||
Regular voltage | VDD | 2.2 | 3 | 3.7 | V | |||||||
Supply current | IDD | 9 | 9.5 | 11 | μA | |||||||
Sensitivity threshold | VSENS | 90 | 2000 | μV | ||||||||
Detective Wavelength | λ | 5 | 14 | um | ||||||||
Outputs REL | ||||||||||||
Output current low | IOL | 10 | mA | VOL<1V | ||||||||
Output current high | IOH | -10 | mA | VOH>(VDD-1V) | ||||||||
Low REL output locking time | TOL | 2 | s | Non-adjustable | ||||||||
High REL output delay time | TOH | 2 | 3600 | s | ||||||||
Inputs SENS, ONTIME | ||||||||||||
Input voltage range | 0 | VDD1/2 | V | Adjustable between 0V and VDD/2 | ||||||||
Input leakage current | -1 | 1 | μA | |||||||||
Input OEN | ||||||||||||
Input low voltage | VIL | 0.8V-1.2V (Hysteresis zone) | 0.8 | V | Voltage threshold from high to low | |||||||
Input high voltage | VIH | 1.2 | V | Voltage threshold from low to high | ||||||||
Input current | II | -1 | 1 | μA | VSS | |||||||
