Pyroelectric Infrared Sensor

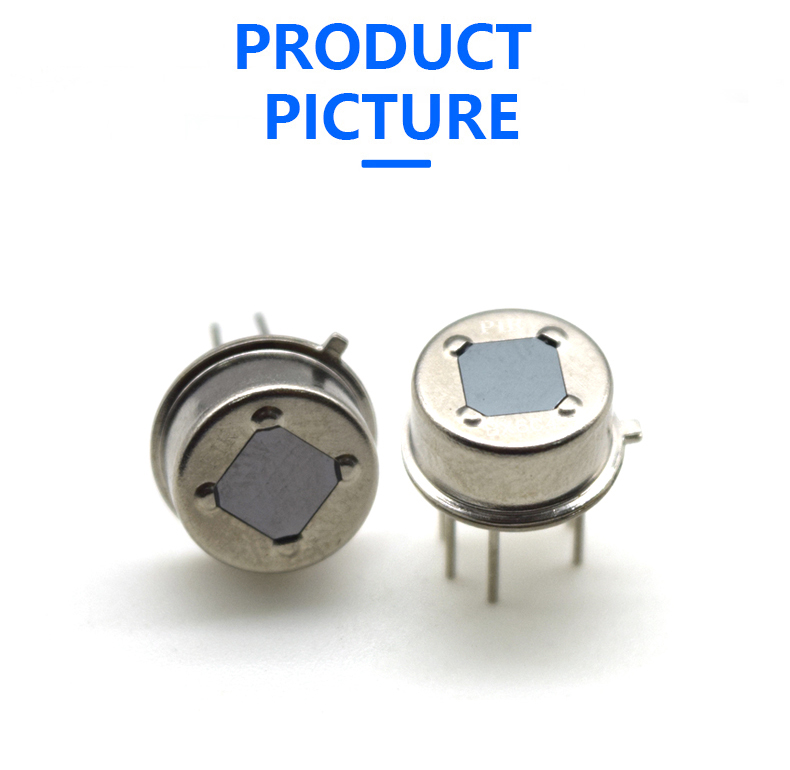

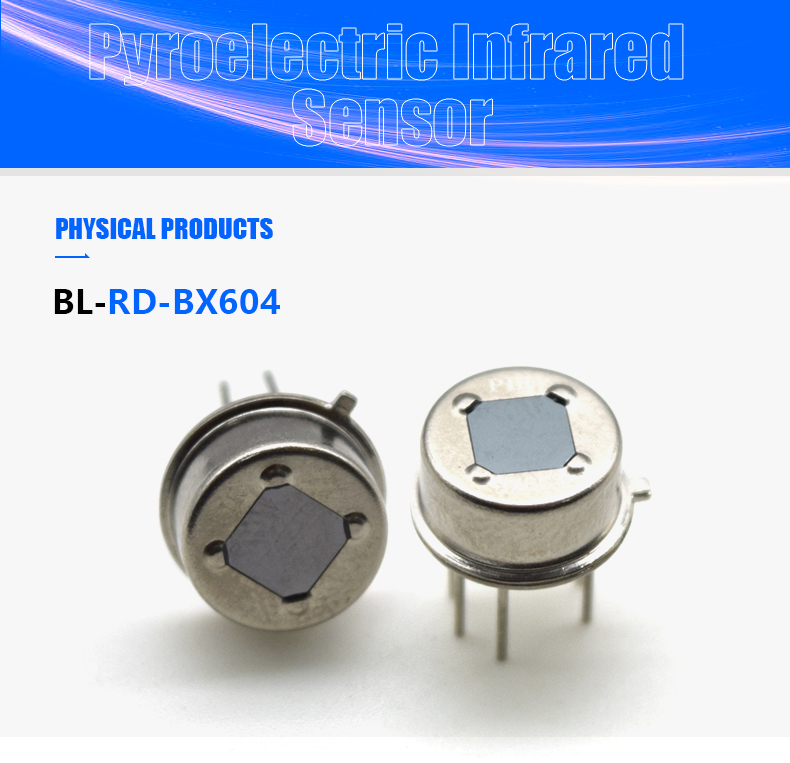

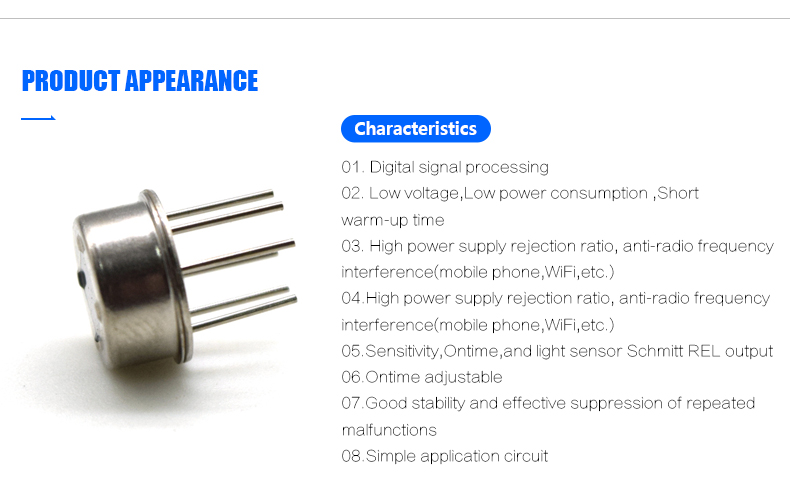

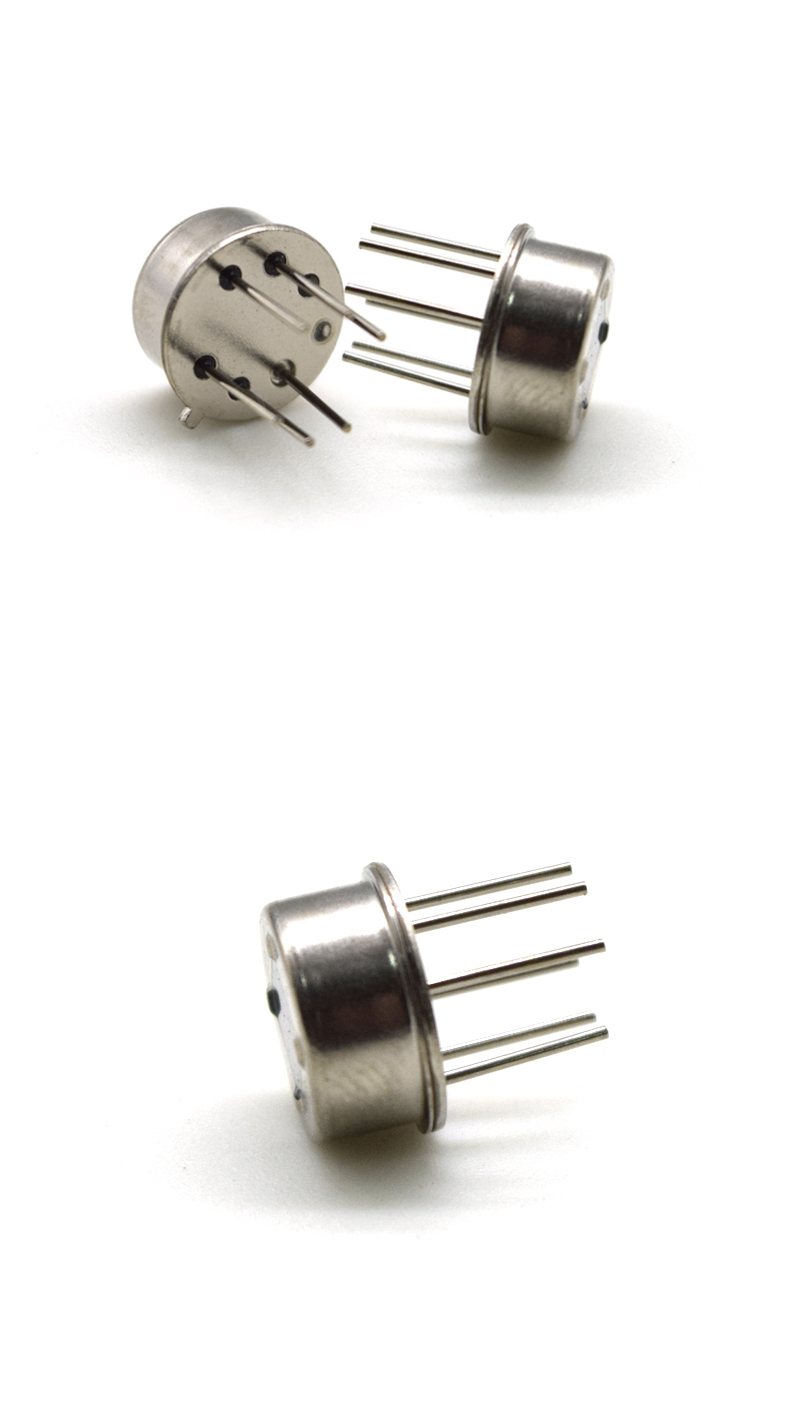

BL-RD-BX604 Pyroelectric Infrared Sensor

BL-RD-BX604
minimum order
1 piece
Quantity:
Contact Now
add to cart
  • Series:Pyroelectric Infrared Sensor
  • Features:Digital signal processing, 4 Elements PIR motion sensor
  • Mounting Type:Digital signal output, PTH
  • Description:Intelligent Pyroelectric Infrared Motion Sensor
  • Model Number:BL-RD-BX604
  • Place of Origin:Guangdong, China
  • Brand Name:GBeelee
  • Usage:Consu Electronics/smart home/Security/Lighting
  • Theory:Detect human infrared ray
  • Output:Digital signal
  • Brand:Pyroelectric Infrared Sensor
  • Amplifier Type:Contact Us
  • Voltage - Supply:Contact Us
  • Output Type:2.2~3.7V
  • Current - Supply:Contact Us
  • Operating Temperature:-30~70
  • Resolution (Bits):%
  • Current - Supply (Max):11μA
  • Current:9~11μA
  • Voltage Rating:2.2~3.7V
  • Operating Force:Contact Us
  • Oxygen Range:Contact Us
  • Humidity Range:-40~80 degree
  • Size:Contact Us

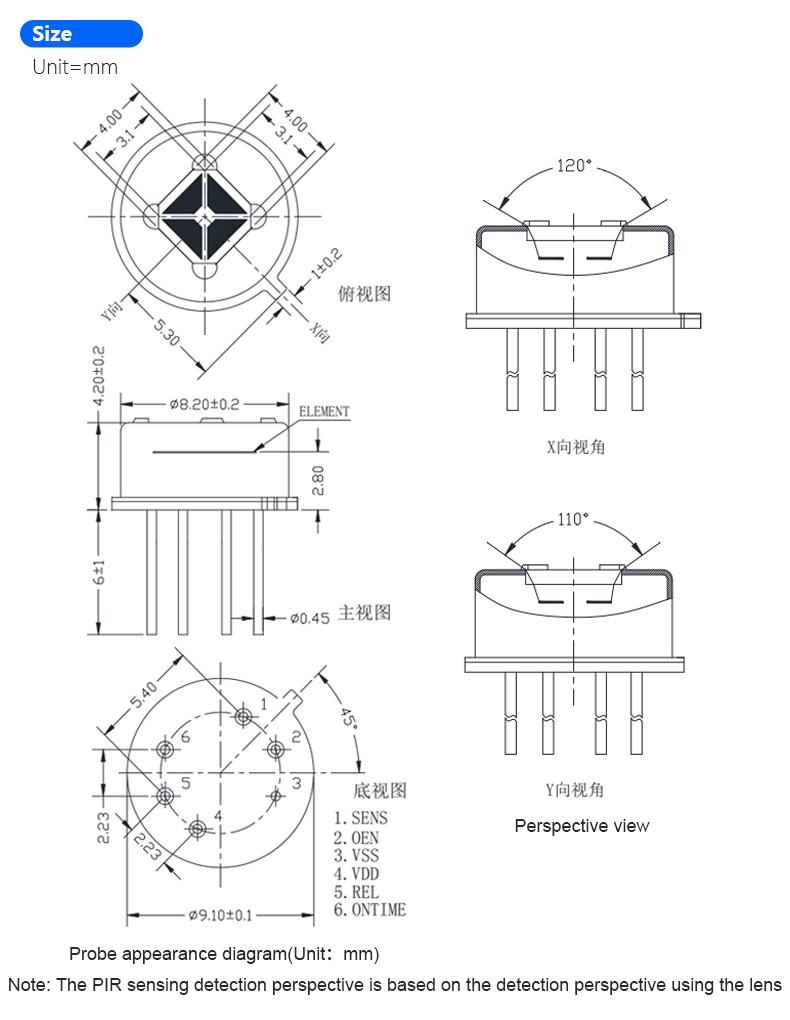

  • Size / Dimension:Window Size: 4*4mm
  • Resolution:Contact Us
  • Interface:Contact Us
  • Technology:Contact Us
  • Sensing Range:120° (horizontal direction)
  • Current - Output (Max):2.2-3.7V
  • Bandwidth:Contact Us
  • Function:Contact Us
  • Acceleration Range:Contact Us
  • Sensitivity (LSB/g):Contact Us
  • Sensitivity (mV/g):Contact Us
  • Sensitivity (LSB/(°/s)):Contact Us
  • Sensitivity (mV/°/s):Contact Us
  • Sensing Distance:12M (lens SB-F-02)
  • Current - Output:-10~10MA
  • Power - Rated:Contact Us
  • Voltage - Output Difference (Typ) @ Distance:Contact Us
  • Voltage - Output (Typ) @ Distance:Contact Us
  • Voltage - Max:Contact Us
  • Voltage - DC Reverse (Vr) (Max):Contact Us
  • Power - Max:Contact Us
  • Sensing Object:Human
  • Sensing Light:Infrared ray
  • Resistance:Contact Us
  • Resistance Tolerance:Contact Us
  • Sensing Temperature - Local:Contact Us
  • Sensing Temperature - Remote:Contact Us
  • Current Rating - AC:Contact Us
  • Current Rating - DC:Contact Us
  • Tolerance:Contact Us
  • Voltage - Rated:Contact Us
  • Flow Sensor Type:Contact Us
  • Voltage - Input:Contact Us
  • Application:Contact Us
  • Output Function:Contact Us
  • D/C:Contact Us
  • Cross Reference:Contact Us
  • Operating Temp:-30~70 ℃
  • Current into any pin:-100~100 mA
  • Storage Temp:-40 ~80 ℃
  • Regular voltage:2.2~3.7 V
  • Supply current:9 ~11 μA
  • Sensitivity threshold:90~2000μV
  • Detective Wavelength:5~14 um
  • Output current low:10mA
  • Output current high:-10mA
  • LPF cutoff frequency:7Hz




BL-RD-BX604 is a pyroelectric infrared sensor that integrates a digital intelligent control circuit and a human detection sensor in an electromagnetic shielding housing. The human body detection sensor couples the sensed human movement signal to the digital intelligent integrated circuit chip through a very high impedance differential input circuit, which converts the signal into an ADC digital signal, and when the PIR signal exceeds the selected digital threshold, there is a timed REL level output. The OEN enable allows the REL output to be automatically controlled via a light sensor. The sensitivity and time parameters are set by a voltage divider resistor. All signal processing is done on the chip.





1.Absolute Maximum Ratings
Electrical characteristics(beyond those listed below may cause permanent damage to the device. Exposure to absolute maximum ratings may affect the device reliability. )
Parameter
Symbol
Min
Max
Unit
Remarks
Operating Temp
TST
-30
70
℃
Current into any pin
Into
-100
100
MA
Storage Temp
TST
-40
80
℃
2.Operating Conditions (T=25°C, Vdd=3V，unless stated otherwise)
Parameter
Symbol
Min
Type
Max
Unit
Remarks
Regular voltage
VDD
2.2
3
3.7
V
Supply current
IDD
9
9.5
11
μA
Sensitivity threshold
VSENS
90
2000
μV
Detective Wavelength
λ
5
14
um
Outputs REL
Output current low
IOL
10
mA
VOL<1V
Output current high
IOH
-10
mA
VOH>(VDD-1V)
Low REL output locking time
TOL
2
s
Non-adjustable
High REL output delay time
TOH
2
3600
s

Inputs ONTIME
Input voltage range
0
VDD1/2
V
Adjustable between 0V and VDD/2
Input leakage current
-1
1
μA
Oscillator and Filter
LPF cutoff frequency
7
Hz
HPF cutoff frequency
0.44
Hz
Enable OEN
Low input voltage(off)
VIL
Hysteresis region between 0.8v and 1.2v
0.8
V
Threshold level of OEN voltage from high to low
High input voltage(on)
VIH
1.2
V
Threshold level of OEN voltage from low to high
Current input
II
-1
1
μA
VSS
