XL6009

XST-MZ-432 Adjustable DC-DC Boost Power Converter Module XL6009

XST-MZ-432
The XL6009 adjustable power boost module uses XL6009, which can completely replace the LM2577. This module has lower cost and better performance. Built-in 4A high-efficiency MOSFET switch tube, making the efficiency up to 94%. The working voltage range is 5~32V, the output voltage is 5V~35V, and the maximum frequency is 400KHZ.
minimum order
1 piece
Quantity:
Contact Now
add to cart
  • Model Number:XST-MZ-432
  • Type:DC To DC Boost Module
  • Place of Origin:Guangdong, China
  • Brand Name:Xunster
  • Chipset:XL6009
  • Application:All kinds of Electronic Products
  • Model Name:DSN6009 boost module
  • Module nature:Non-isolation voltage (boost)
  • Input voltage:3V-32V
  • Output voltage:5V-35V
  • Output current:4A
  • Conversion efficiency:<94%
  • On-off level:400kHz
  • Output ripple:50mv
  • Load Regulation:± 0.5%
  • Operating temperature:-40 ℃ to+85 ℃

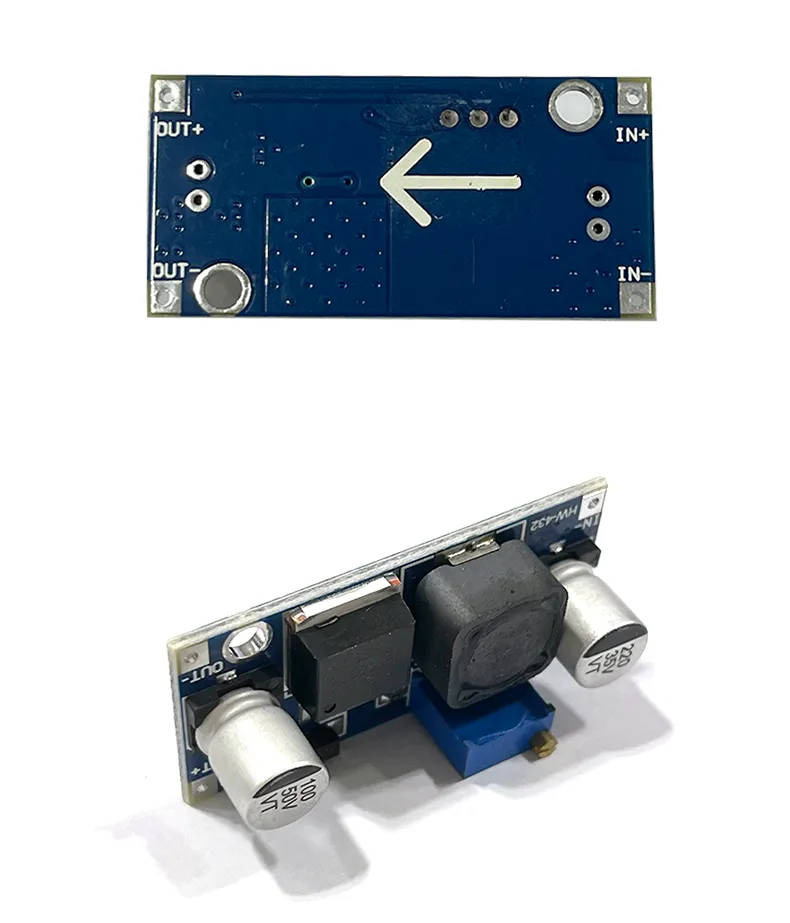

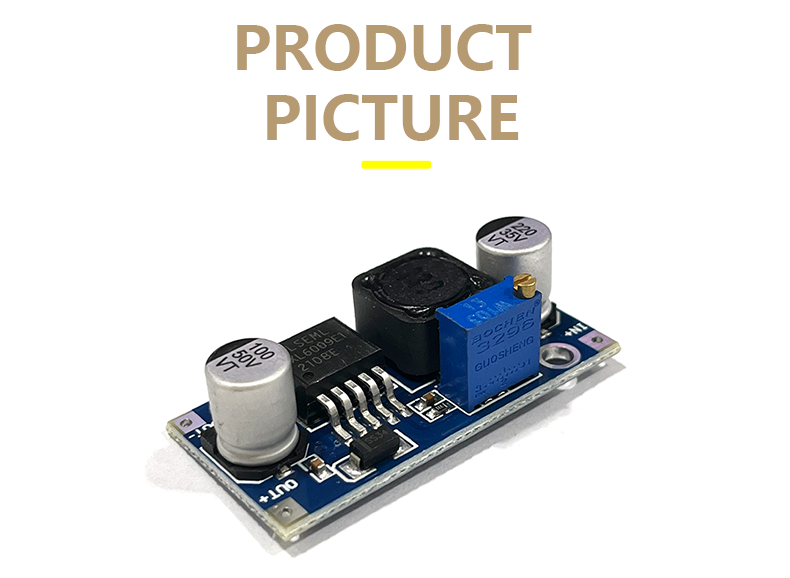

XL6009 400KHz 4A switch current boost module



Product Description:



Itis a high -performance boost (BOOST) module of a 4A switch current. The module uses the XL6009E1 of the second -generation high -frequency switch technology as the core chip, and its performance far exceeds the LM2577 of the first -generation technology. The cost of XL6009 boost module is lower and more outstanding, and the LM2577 module is about to be eliminated.



Ultra -wide input voltage 3V ~ 32V, the best working voltage range is 5 ~ 32V;



Ultra -wide output voltage 5V ~ 35V;



Built -in 4A high -efficiency MOSFET switch tube to make the efficiency up to 94%; (LM2577 current is only 3A)



The ultra -high switching frequency is 400kHz, which can achieve very good results with a small -capacity filter capacitor. The ripples are smaller and the volume is smaller. (LM2577 frequency is only 50kHz)








Model NameXL6009 boost module
Module natureNon-isolation voltage (boost)
Rectification methodNon-synchronous rectification
Input voltage3V-32V
Output voltage5V-35V
Output current4A (maximum), empty load 18mA
(The higher the voltage, the larger the air load current.)
Conversion efficiency<94%
(the larger the pressure difference, the lower the efficiency)
On-off level400kHz
Output ripple50mv
(the higher the voltage, the larger the current, the larger the ripple)
Load Regulation± 0.5%
Voltage adjustment± 2.5%
Operating temperature-40 ℃ to+85 ℃
Peripheral43*21*14 (long*width*height) (mm)
