normally closed reed switches

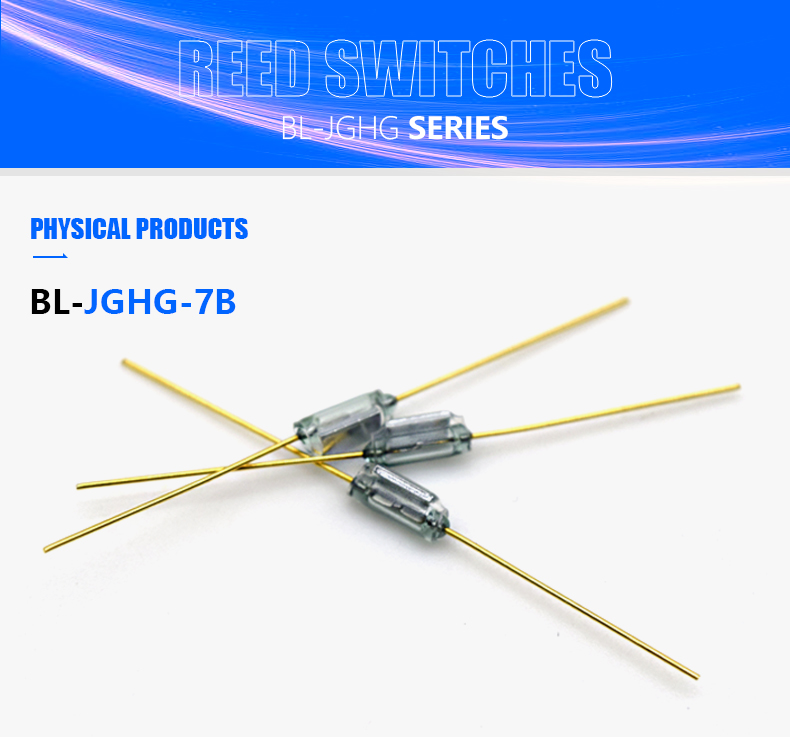

Micro Glass Reed Switche BL-JGHG-7B Normally closed glass magnet reed Switch

BL-JGHG-7B
minimum order
1 piece
Quantity:
Contact Now
add to cart
  • Certification:ISO9001
  • Whether the smart:Yes
  • Place of Origin:Guangdong, China
  • Brand Name:BeeLee
  • Model Number:BL-JGHG-7B
  • Max. Current:0.1A
  • Max. Voltage:24VDC
  • Contact Form:B
  • Operation type:magnetic type
  • Max Switching Rating:1W
  • Max Switching Voltage:24VDC
  • Breakdown Voltage:110/150 VDC
  • Switching Current:0.1A
  • Carry Current:0.3A
  • Contact Resistance:200mΩ

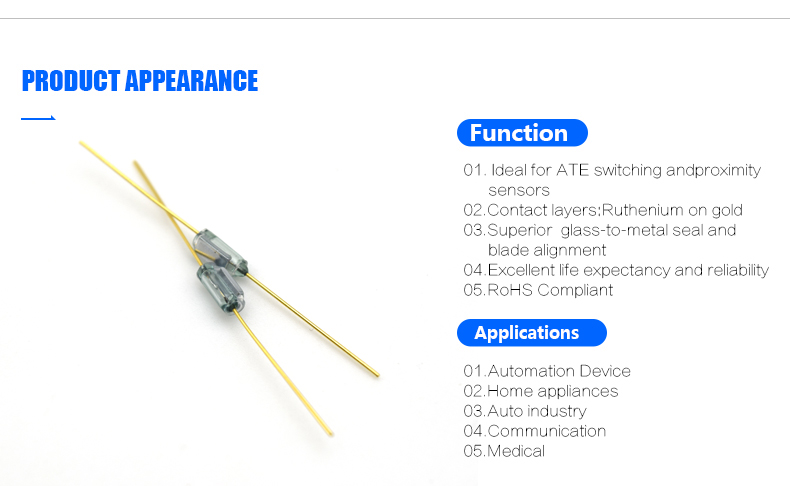

01.Micro changeover dry-reed switch hermetically sealed in a gas- filled enve-lope.Single-pole, double-throw (SPST-NC) type, having a normally open and a normally closed contact.

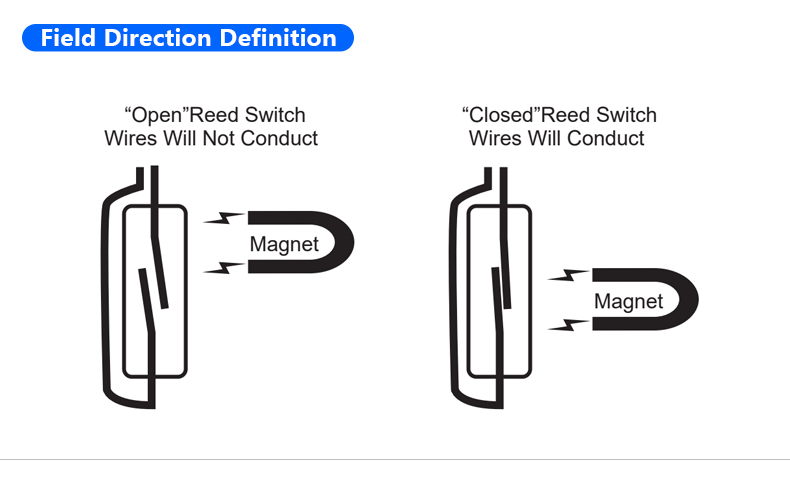

02.The switch may be actuated by an electromagnet, a permanent magnet or a combination of both.The device is intended for use in sensors, relays, pulse counters or similar devices.

ParametersUnitBL-JGHG-7B
Contact FormB
Switching RatingW1
Switching VoltageVDC24
Breakdown VoltageVDC110150
Switching CurrentA0.1
Carry CurrentA0.3
Intial Contact ResistanceMΩ200
Insulation ResistanceGΩ1
Operating timems0.3
Release timems0.1
Resonant FrequencyHz12000
Operating FrequencyHz400
Switching current frequencykHZ10
Pull in ValueAT7-35
Release rangeAT4
Contact CapacitancePF0.4
Weightg0.07
Operating temperature℃-60~125
Humidity98%
