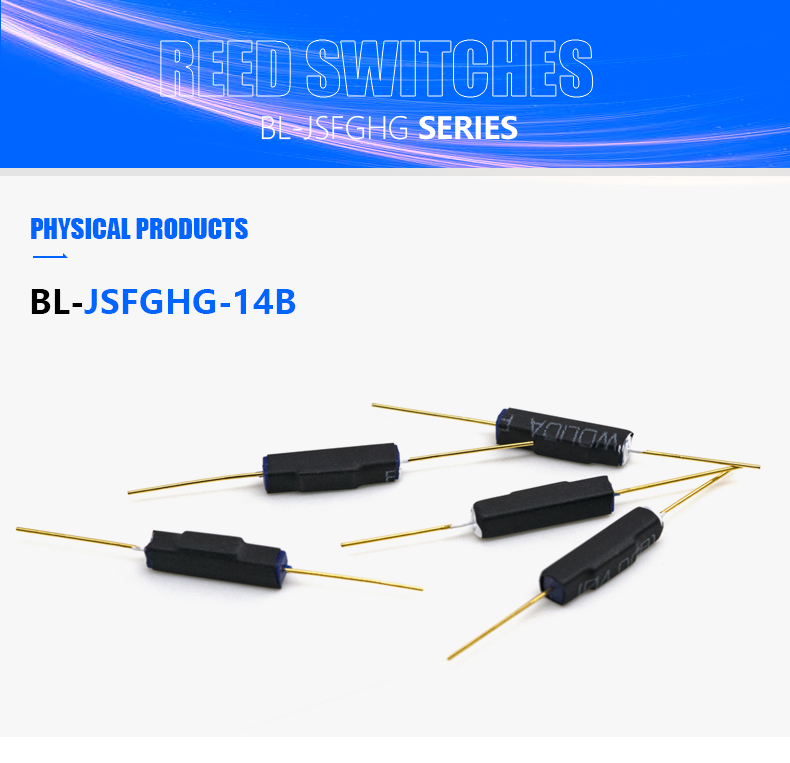

BL-JSFGHG-14B Plastic Reed switch import dry reed magnetic Normally closed anti-vibration and damage-proof magnetic control

BL-JSFGHG-14B

minimum order

1 piece

Quantity:

Contact Now

add to cart

Certification:ISO9001
Whether the smart:Yes
Place of Origin:Guangdong, China
Brand Name:BeeLee
Model Number:BL-JSFGHG-14B
Max. Current:DC400/AC280
Max. Voltage:175V DC/125V AC
Name:Reed switch
Operation type:magnetic type
Model:BL-JSFGHG-14B
Max switch Voltage:175V DC/125V AC
Switching Current:DC400/AC280 mA
Contact Resistance:120mΩ
Breakdown Voltage:200V
Pull in Value:10-20AT

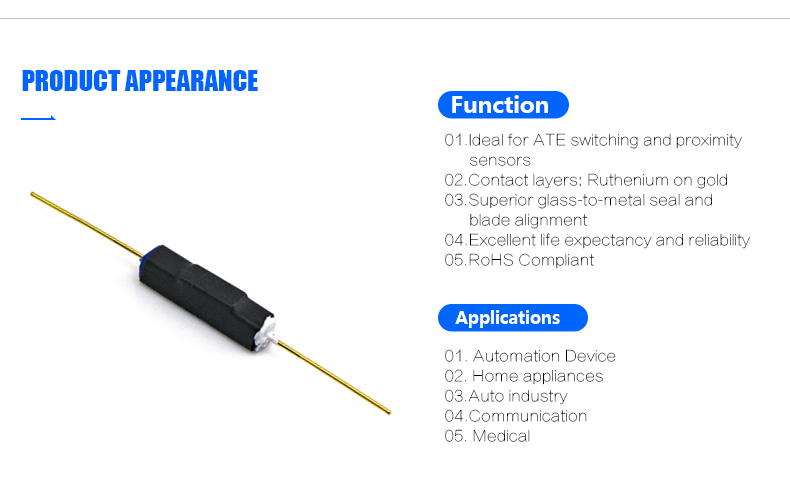

01.Micro changeover reed switch hermetically sealed in gas fulled envelope.Single-pole, double-throw (SPST-NO) type, normally open and normally closed contact.
02.The switch may be actuated by an electromagnet, a permanent magnet or a combination of both.The device is intended for use in sensors, relays, pulse counters or similar devices.

Parameters	Unit	BL-JSFGHG-14B

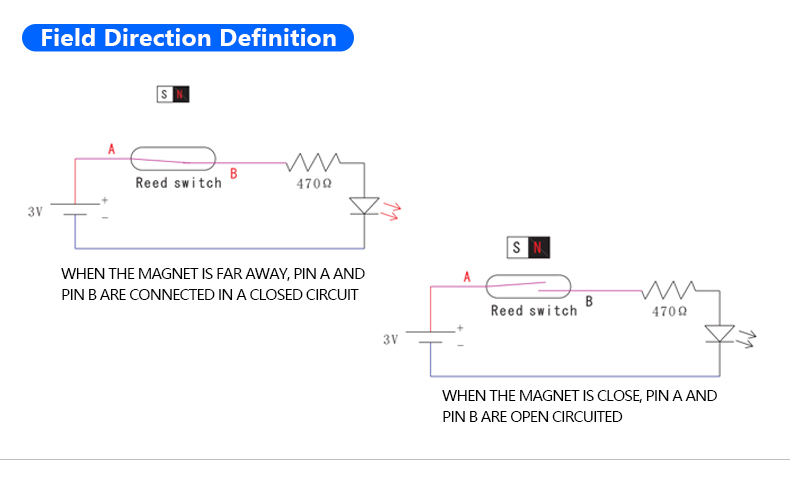

Contact Form		B
Contact material		Ru
Contact Rating	W	5
Switching Voltage	V(DC/AC)	175/125
Switching Current	mA	DC400/AC280
Contact Resistance	MΩ	120
Breakdown Voltagece	V	200
Insulation Resistance	Ω	10⁶
Pull in Value	AT	10-20
Contact Capacitance	PF	0.8
Resonant frequency		TBD
Oprating Temperature	℃	-55~120
