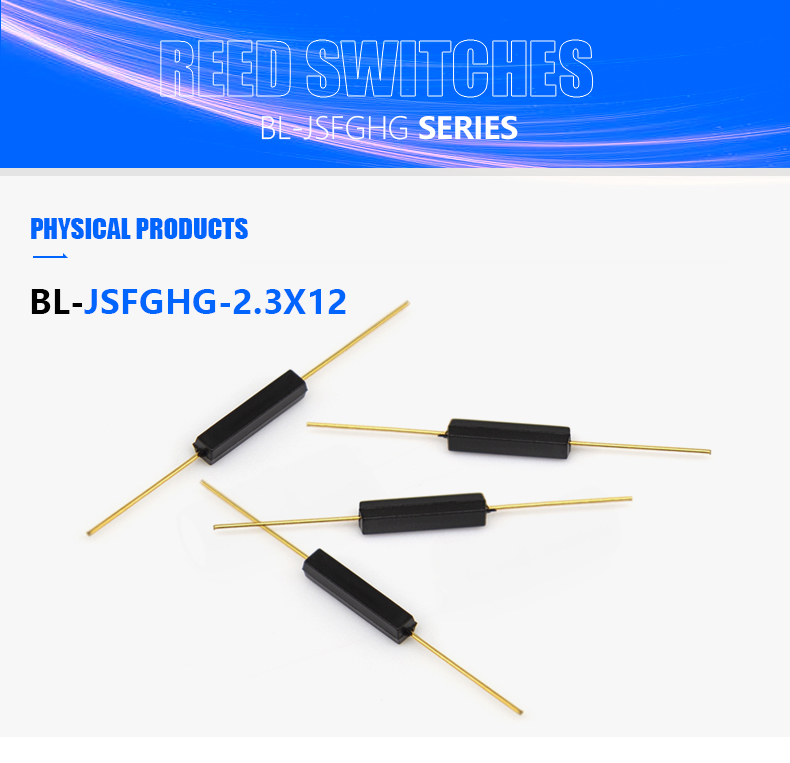

Normally open Magnetic reed switch 5mm/7mm/10mm/14mm/20mm/50mm AT(8-40) sensor for alarm system

BL-JSFGHG-2.3X12

Bailing electronic reed switch manufacturer, providing glass reed switch, plastic seal reed switch, high pressure reed switch, magnetic reed switch, magnetic switch, support program customization, email to amanda@bl28.com.

minimum order

1 piece

Quantity:

Contact Now

add to cart

Certification:RoHS
Whether the smart:NO
Place of Origin:Guangdong, China
Brand Name:Beelee
Model Number:BL-JSFGHG-2.3X12
Max. Current:0.5A
Max. Voltage:100V
Max.Switching Rating:1W
Max.Switching Voltage:100V
Max.Switching Current:5*10^-6...0.5
Max.Carry Current:0.5A
Max.Contact Resistancence:0.15Ohms
Min.Breakdown Voltagence:AC110/DC150V

01. Micro changeover dry-reed switch hermetically sealed in a gas- filled envelope.Single-pole, double-throw (SPST-NO) type, having a normally open and a normally closed contact.

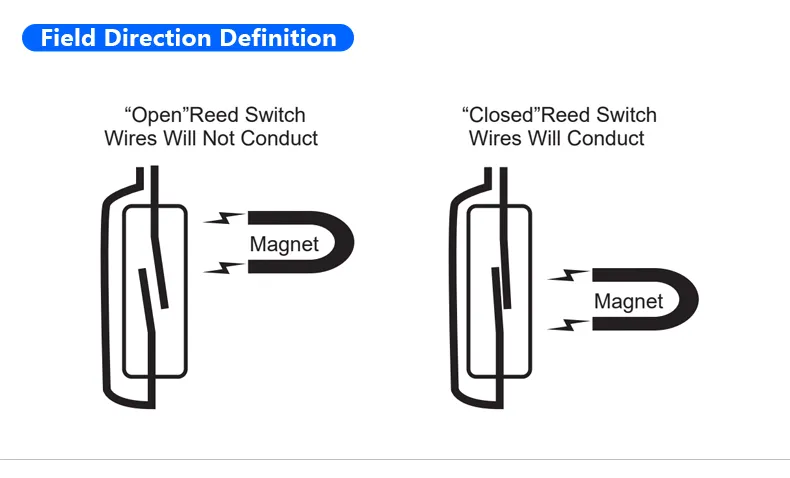

02.The switch may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in sensors, relays, pulse counters or similar devices.

Parameters	Unit	BL-JSFGHG-2.3X12
Contact Form		A
Contact Rating	W	24
Switching Voltage	VDC	250
Breakdown Voltage	VDC	250
Switching Current	A	1
Carry Current	A	2
Intial Contact Resistance	MΩ	150
Insulation Resistance	Ω	10¹²
Pull in Value	AT	50-80
Drop Out Value	FT	25
Contact Capacitance	PF	0.3
Electrcal Life (Resistive Loads)		1*10⁶(24VDC,0.2mA)

About us

1.Q:Can I get sample from you?

A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.

2.Q:Do you accept customization?

A:Yes,customization is acceptable,please contact our sales staffs for consult.

3.Q:Can you provide help for technical issues?

A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us

4.Q:How many types of switches do you have,and what about your quality?

A:We have 10 different types of switches for your choice,all our products is passed the ROHS and REACH,please trust we definitely could meet your quality stander.
