reed switch normally open

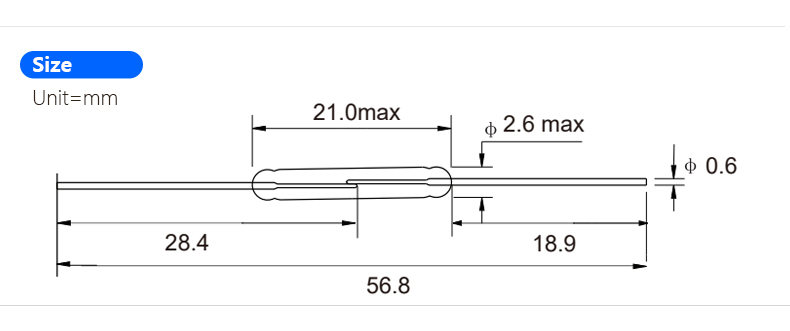

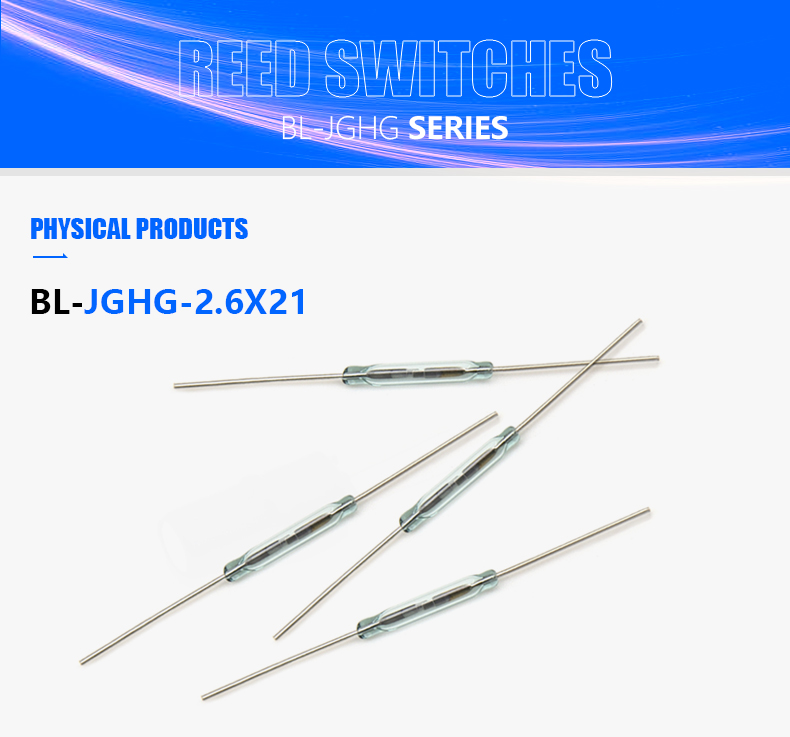

Reed Switch 2.6 *21mm AT(15-70) Magnetic Control Switch Green Glass Reed Switches Glass Normally Open Contact For Sensors

BL-JGHG-2.6X21
Bailing electronic reed switch manufacturer, providing glass reed switch, plastic seal reed switch, high pressure reed switch, magnetic reed switch, magnetic switch, support program customization, email to amanda@bl28.com.
minimum order
1 piece
Quantity:
Contact Now
add to cart
  • Magnetic sensor,Magnetic Control Switch,Reed Switch,Reed sensor,Reed switch,SMD plastic reed witch, reed pipe sensor,
  • Certification:RoHS
  • Whether the smart:NO
  • Place of Origin:Guangdong, China
  • Brand Name:BeeLee
  • Model Number:BL-JGHG-2.6X21
  • Max. Current:1.0A
  • Max. Voltage:1000VDC
  • Contact Form:1A
  • Contact Position:C
  • Contact Rating:25W
  • Switching Voltage:1000 VDC
  • Switching Current:1.0A
  • Initial Contact Resistance:100mΩ
  • Pull in Value:15-70 AT
  • Drop out Value:6AT
  • Breakdown Voltage:2300VDC
  • Contact Capacitance:0.4pF

01. Product Features Micro changeover dry-reed switch hermetically sealed in a gas-?lled enve- lope.Single-pole,double-throw w (SPST-NO) type,having a normally open and a normally closed contact.

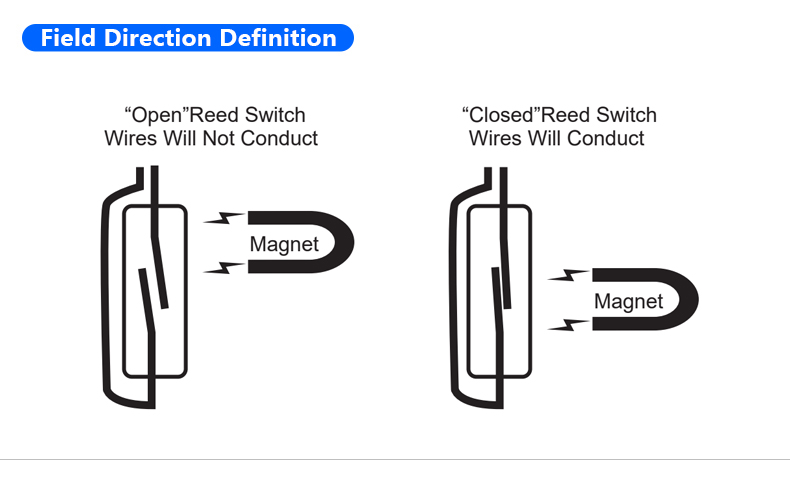

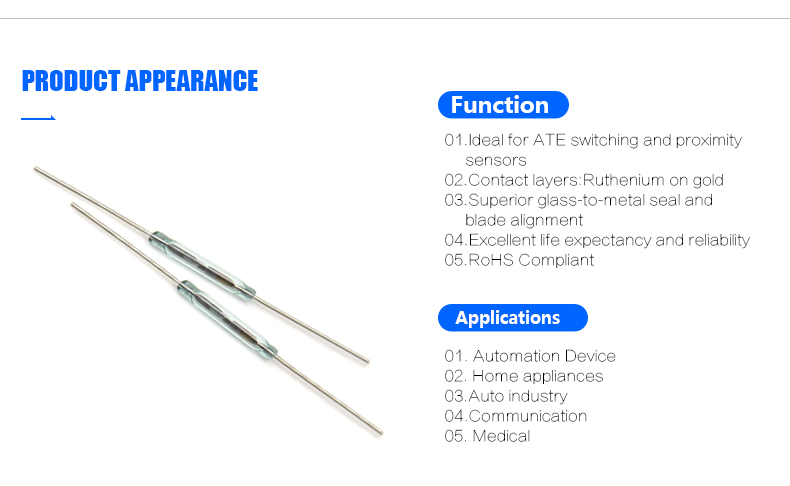

02.The switch may be actuated by an electromagnet,a permanent magnet or a combination of both.The device is intended for use in sensors,relays,pulse counters or similar devices.

ParametersUnitBL-JGHG-2.6X21
Contact Form1A
Contact PositionC
Contact MaterialRhodium
Contact RatingW25
Switching VoltageVDC1000
Switching CurrentA1
Intial Contact ResistancemΩ100
Pull in ValueAT15-70
Drop Out ValueAT6
Breakdown VoltageVDC2300
Contact CapacitancePF0.4
Insulation ResistanceΩ1011
Electrcal Life (Resistive Loads)2*106(DC1000V, 10mA)
Test CoilTC-0502A
FeaturesVacuum,High Power,
High breakdown voltage

Q1:Do you accept OEM or ODM?

A1:Yes,OEM&ODM both acceptable,please contact our salesman for more information.

Q2:Can you send the sample for test?

A2:Yes,we can provide samples for you to test,If you don't know how to get the sample, please contact our sales staff.

Q3:Can you provide help for technical issues?

A3:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us
