micropower hall switch

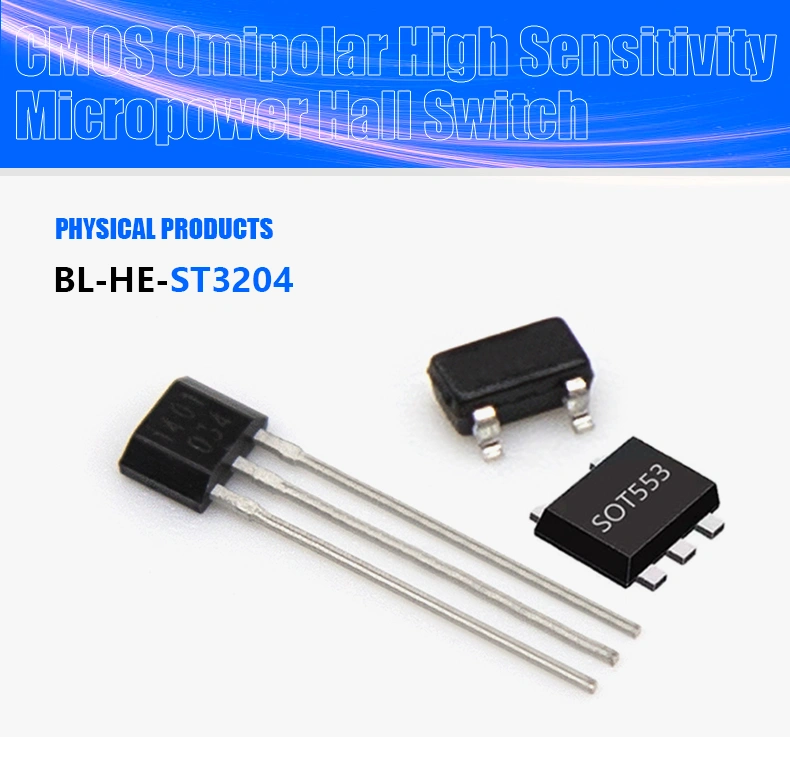

Magnetic Sensors 1.65 to 5.5V BL-HE-ST3204 CMOS Omipolar High Sensitivity Micropower Hall Switch

BL-HE-ST3204
minimum order
1 piece
Quantity:
Contact Now
add to cart

BL-HE-ST3204 is a Hall-effect switch built on mixed-signal CMOS technology. The die integrates an on-chip Hall voltage generator, a 1.8–5.5 V regulator, low-power sleep/wake logic, temperature compensation, a small-signal amplifier, a dynamic offset cancellation system, a Schmitt trigger and an output stage. At 3.3 V the total operating consumption is typically 15 µW, which is what makes the part usable in battery-powered designs that must stay powered continuously.

Key Specifications

  • Supply voltage VDD: 1.8–5.5 V (3.3 V typical)
  • Average supply current: 20 µA at 1.8 V, 35 µA at 3.0 V
  • Supply current during startup: 0.7 mA at 1.8 V, 0.8 mA at 3.0 V
  • Standby current: 1.4 µA at 1.8 V, 2 µA at 3.0 V
  • Output high VOH: VDD − 0.2 V at IOUT = −0.5 mA
  • Output low VOL: 0.2 V at IOUT = +0.5 mA
  • Wake-up time TAW: 15 µs; sleep time TSL: 500–1000 µs
  • Operating temperature: −40 °C to +85 °C
  • Storage temperature: −50 °C to +150 °C; ESD sensitivity 4,000 V

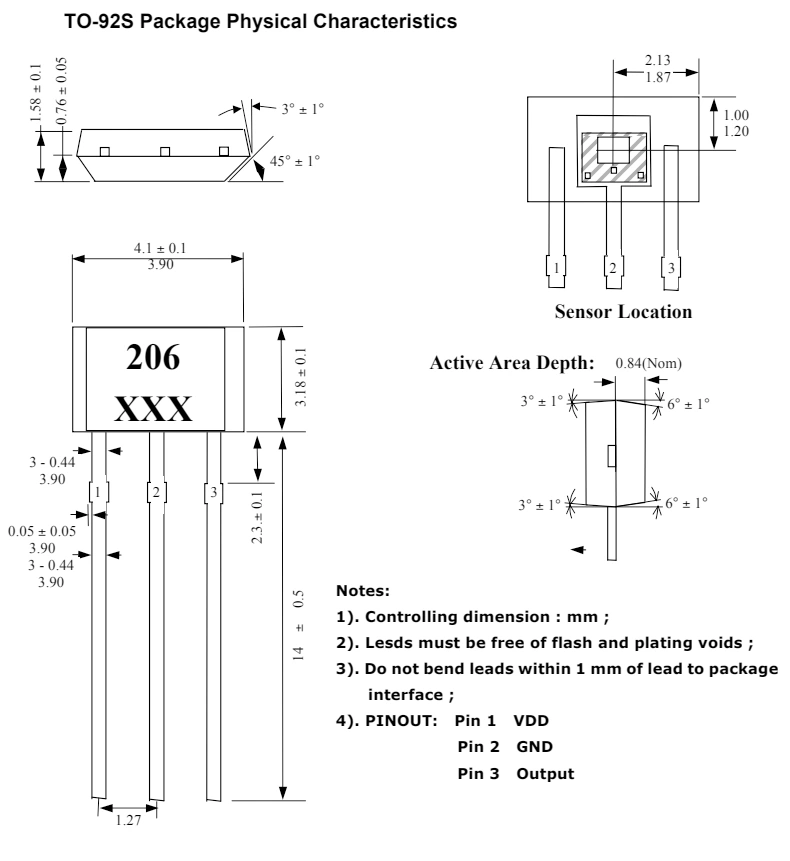

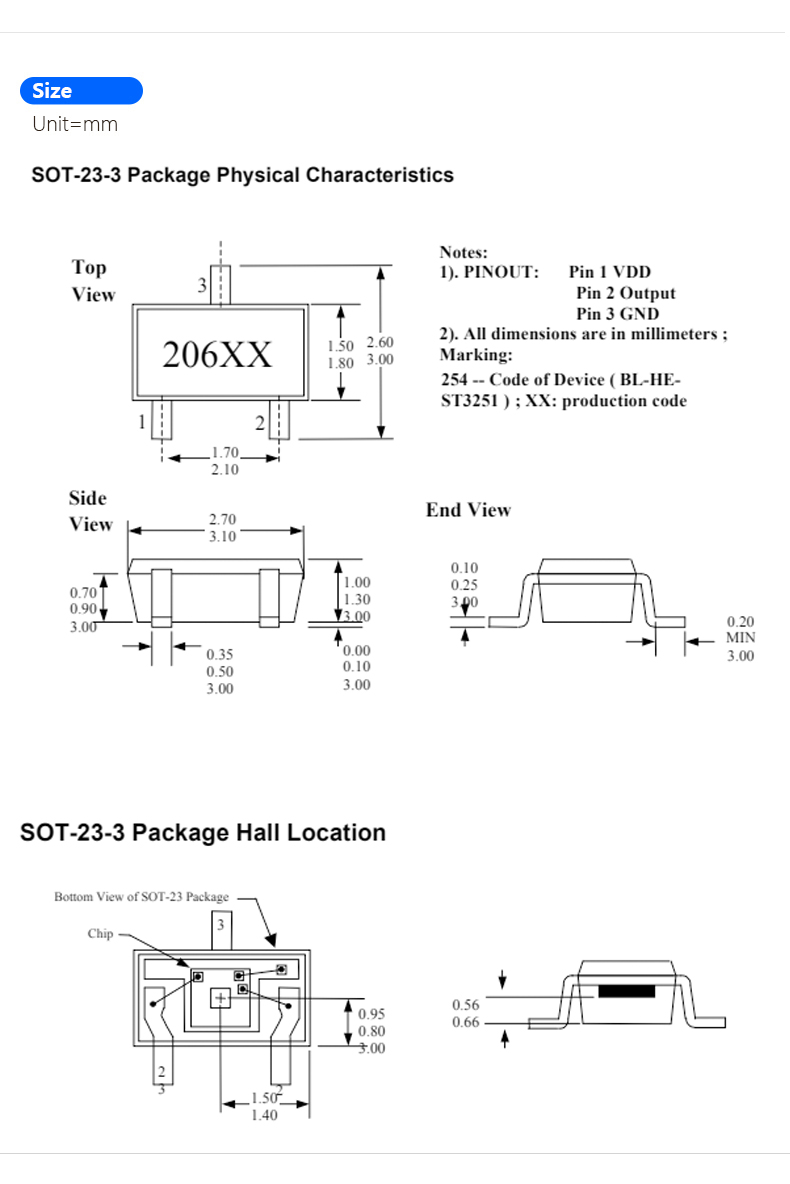

  • Packages: TO-92S, SOT23-3, SOT553, DFN1216-4L

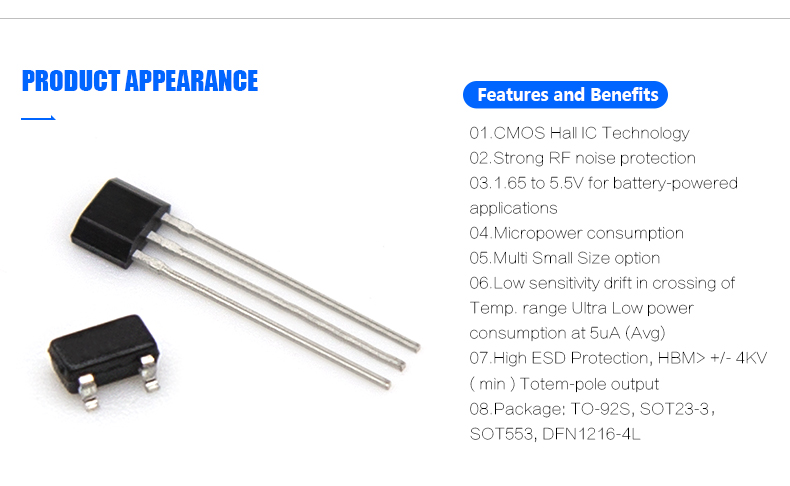

Key Features

  • Micropower sleep/wake architecture — 1.4–2 µA standby, 15 µW total at 3.3 V
  • Omnipolar response — a north pole or a south pole of sufficient strength both turn the output on
  • Dynamic offset cancellation plus a Schmitt trigger for stable, chatter-free switching
  • Temperature-compensated sensing with strong RF noise protection
  • Wide 1.8–5.5 V supply, covering coin cells and single-cell lithium designs
  • −40 to +85 °C operating range in a compact TO-92S package

Typical Applications

  • Lid, cover and door position detection in battery-powered handheld devices
  • Rotor position and speed feedback in small BLDC fans and motors
  • Wake-up control for IoT nodes, wearables and wireless peripherals
  • Non-contact end-stop sensing where mechanical switches wear out

Why Buy from GBeelee

GBeelee is the export brand of Dongguan Bailing Electronics, a national high-tech enterprise that has manufactured sensors for more than 18 years and serves over 20,000 customers. Production is RoHS compliant, and OEM/ODM support is available for custom leads, housings and sensitivity. Hall-effect parts are supplied with full electrical characteristics, so the sleep/wake timings can be checked against your duty-cycle budget before tooling.

Related product lines:Hall-effect sensor range·Omnipolar Hall switches

FAQ

What is the standby current?
1.4 µA at 1.8 V and 2 µA at 3.0 V in sleep mode, with a 15 µs wake-up time — the basis of the 15 µW figure at 3.3 V.

What output type does it have?
The data sheet gives the output levels as VOH = VDD − 0.2 V and VOL = 0.2 V. Descriptions of this part differ on whether the output stage is open-drain or push-pull, so we do not state one on this page. Tell us the load and the pull-up you plan to use and we will confirm the output stage of the exact variant supplied to you.

Which magnetic polarity does it respond to?
Either. This is an omnipolar switch: a south pole or a north pole of sufficient strength both turn the output on, and the output holds that state until the flux density falls below the release point. There is no particular pole to orient the magnet towards, which removes one assembly mistake from the line.

  • Series:hall sensor
  • Features:CMOS Omipolar Hall Sensor
  • Mounting Type:TO-92S, SOT23-3
  • Description:Micropower consumption
  • Model Number:BL-HE-ST3204
  • Type:Strong RF noise protection
  • Place of Origin:Guangdong, China
  • Brand Name:GBeelee
  • Use:Micropower consumption
  • Theory:CMOS Hall IC Technology
  • Output:HBM> +/- 4KV( min ) Totem-pole output
  • Supply Voltage(operating):6 V
  • Supply Current:1mA
  • Output Voltage:6 V
  • Output Curent:1mA
  • Operating Temperature Range:-40 to 85 ℃
  • Storage Temperature Rang:-50 to 150 ℃
  • ESD Sensitivity:4000 V
  • Operating voltage:1.8-5.5V
  • Output High Voltage:VDD-0.2
  • Output Low Voltage:0.2







01.The BL-HE-ST3204is fabricated from mixed signal CMOS technology. It internally includes an on-chip Hall voltage generator, a voltage regulator for operation with supply voltages of 1.8 to 5.5V, a sleep/awake logic for low power consumption, temperature compensation circuitry, small-signal amplifier, Hall sensor with dynamic offset cancellation system, Schmitt trigger and an open-drain output. Both south pole and north pole of sufficient strength will turn the sensor output on. The output will be turned off under no magnetic field. While the magnetic flux density (B) is larger than operating point (Bop), the output will be turned on (low), the output is held until B is lower than release point (Brp), and then turned off.
02.The total power consumption in normal operation is typically 15µW with a 3.3V power source. Operating temperature range of the BL-HE-ST3204 is from -40°C to 85°C.





















































































































ParameteSymboTest ConditionMinTypMaxUnit
Operating
voltag
VDDOperating1.83.35.5V
Output High
Voltag
VOHBVDD-0.2----
Output Low
Voltag
VOLBopS----0.2
Supply
current
IDD1(AVG)VDD = 1.8 v,Average--20--µA
Supply
Current During
Startup Time
IDD1(EN)VDD=1.8V,During
Startup Time Value
--0.7--mA
Supply
Current During
Standby Time
IDD1(DIS)VDD=1.8V,During
Standby Time Value
--1.4--µA
Supply currentIDD1(AVG)VDD =3v, Average--35--µA
Supply
Current During
Startup Time
IDD1(EN)VDD=3.0V, During
Startup Time Value
--0.8--mA
Supply
Current During
Standby Time
IDD1(DIS)VDD=3.0V, During
Standby Time Value
--2--µA
Awake mode timeTAWOperating--15--µS
Sleep mode timeTSLOperating--5001000µS
