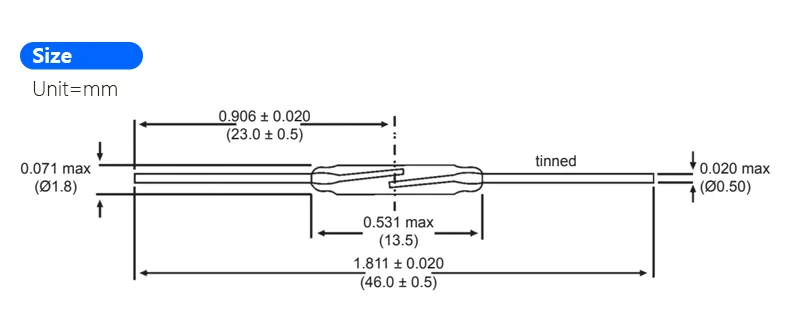

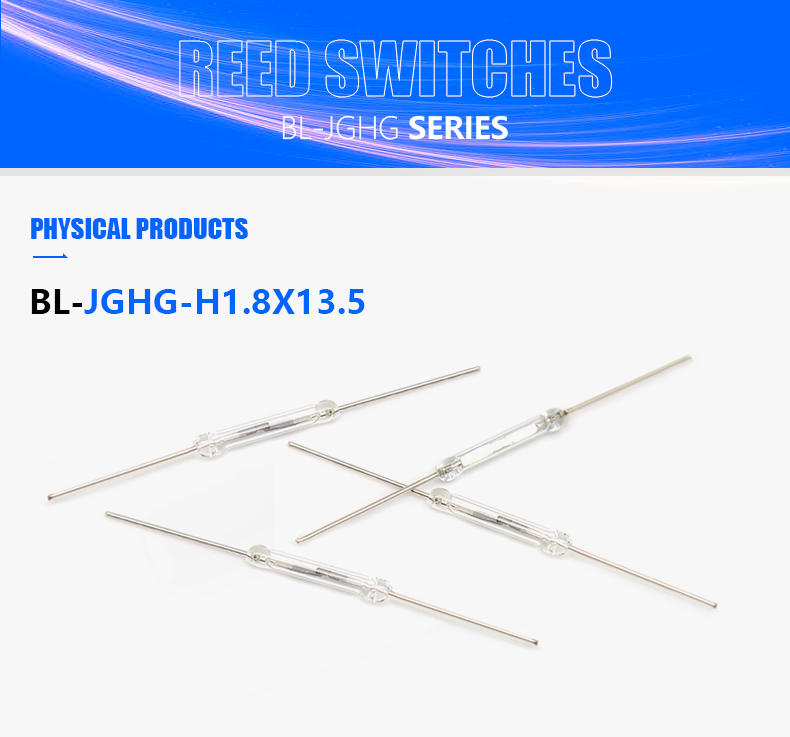

GBeelee Magnetic Reed Switch Original New 1.8X13.5mm Normally Opened cylindrical sealed proximity for PCB board

BL-JGHG-H1.8X13.5

minimum order

1 piece

Quantity:

Contact Now

add to cart

Certification:RoHS
Whether the smart:NO
Place of Origin:Guangdong, China
Brand Name:Beelee
Model Number:BL-JGHG-H1.8X13.5
Max. Current:1.25A
Max. Voltage:200V
Bounce Time (typ.):0.05ms
Release Time (max):30μs
Switched Power (max):15W
Switched Voltage DC (max):200V
Switched Current DC (max):1000mA
Carry Current DC (max):1.25A
Breakdown Voltage (min):250V

DESCRIPTION

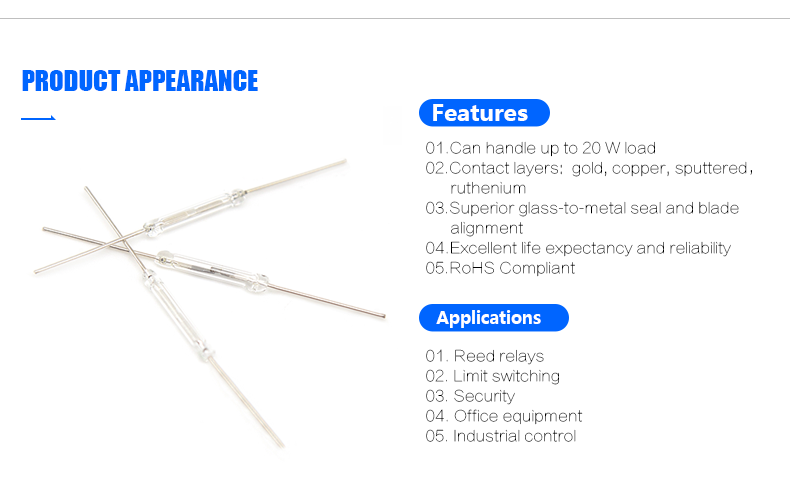

01.Micro changeover reed switch hermetically sealed in gas fulled envelope.Single-pole, double-throw (SPST-NO) type, normally open and normally closed contact.

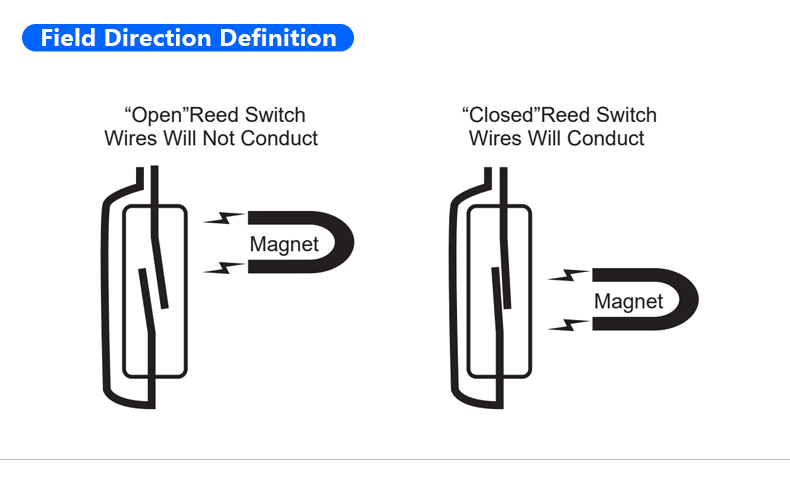

02.The switch may be actuated by an electromagnet, a permanent magnet or a combination of both.The device is intended for use in sensors, relays, pulse counters or similar devices.

parameter	Unit	BL-JGHG-H1.8X13.5AA	BL-JGHG-H1.8X13.5A
Operate Range	AT	16-25	3.3-5.0V
Release Range	AT	5-18	＜0.3V
Operate Time - including Bounce (typ.)	ms	0.25	＞4.6V
Bounce Time (typ.)	ms	0.05	＜3mA
Release Time (max)	μs	30	-20℃~80℃
Resonant Frequency (typ.)	Hz	6500	-40℃~100℃
Switched Power (max)	W	15	50000H
Switched Voltage DC (max)	V	200	200
Switched Voltage AC, RMS value (max)	V	140	140
Switched Current DC (max)	mA	1000	1000
Switched Current AC, RMS value (max)	mA	1000	1000
Carry Current DC (max)	A	1.25	1.25
Breakdown Voltage (min)	V	250	280
Contact Resistance (initial max.)	mΩ	115	115
Contact Resistance (initial typ.)	mΩ	90	90
Contact Capacitance (max)	pF	0.3	0.25
Insulation Resistance (min)	MΩ	10⁶	10⁶

Q1:How can I get more information about your product?
A1:Please send the inquiry for us, and then we can send the detail including spec and offer to you.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.
Q3:What is the payment way of your company?
A3:100% T/T in advance before shipping,(We can accept payment such as T/T, Paypal,Western Union,Alibaba trade assurance,Etc. )
Q4:What is the shipping way?
A4: Usually by air (DHL,UPS,TNT, FedEx etc).
Q5:How long for manufacturing once we place order?
A5: 10000pcs within 5-10days
Q6:How long for samples order?
A6: Usually within 24hour
