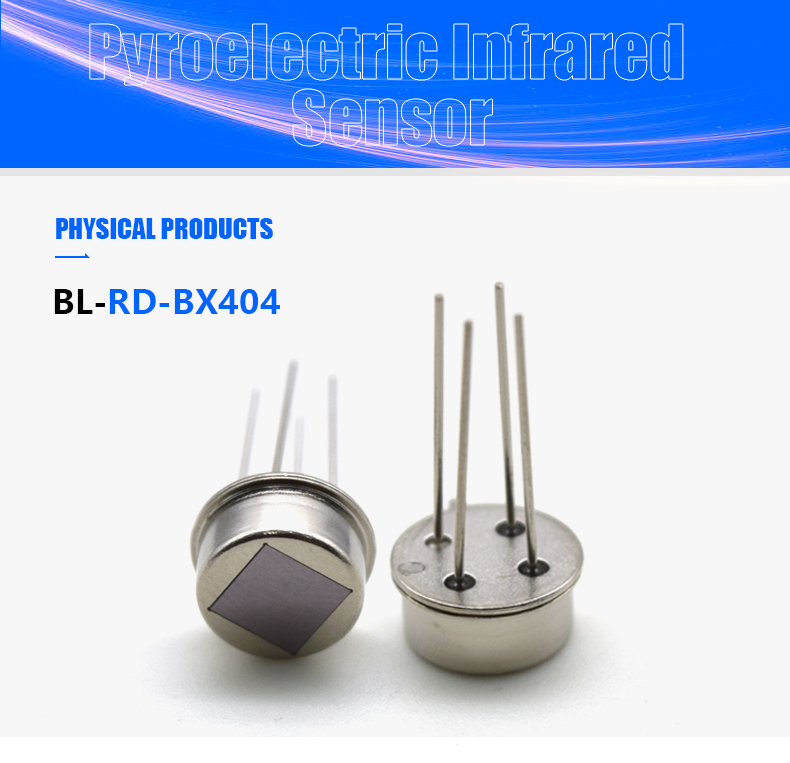

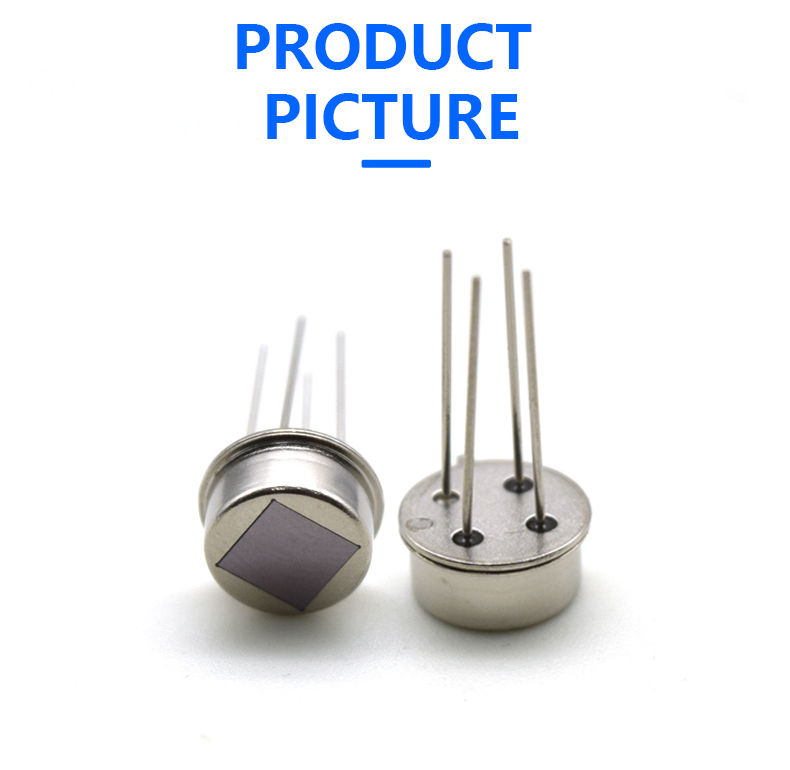

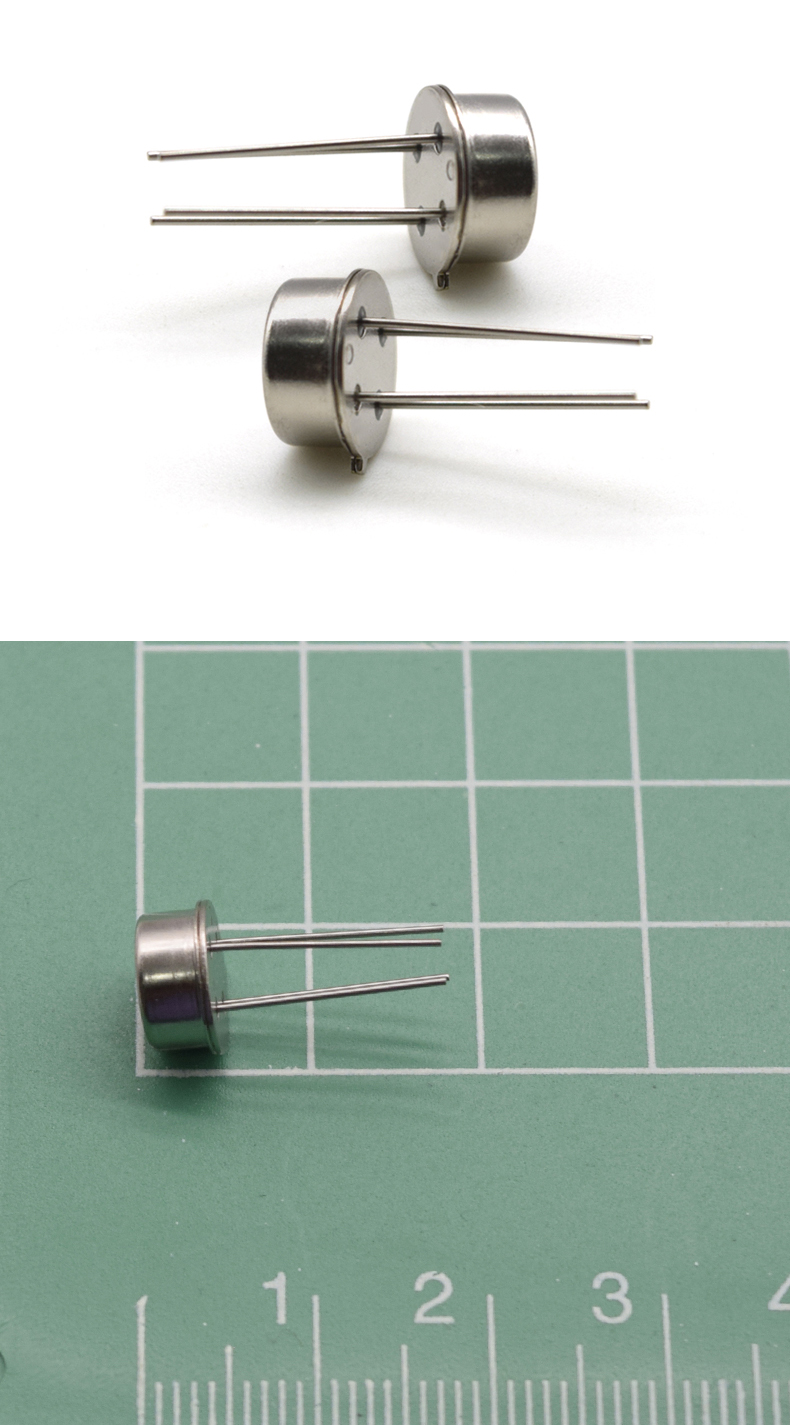

BL-RD-BX404 Human Pir Sensor
BL-RD-BX404
minimum order
1 piece
Quantity:
- Series:Pyroelectric Infrared Sensor
- Features:Digital signal processing, Contact Us
- Mounting Type:Digital signal output, Contact Us
- Description:BL-RD-BX404
- Model Number:BL-RD-BX404
- Place of Origin:Guangdong, China
- Brand Name:GBeelee
- Usage:mobile phone,WiFi,etc.
- Theory:Digital signal processing
- Output:no drift and aging
- Brand:Contact Us
- Amplifier Type:Contact Us
- Voltage - Supply:2.2~3.7V
- Output Type:0V
- Current - Supply:9~11μA
- Operating Temperature:-20~85
- Resolution (Bits):%
- Current - Supply (Max):11μA
- Packaging:Contact Us
- Frequency:7
- Output Configuration:0.44Hz
- Current:11μA
- Voltage Rating:2.2~3.7V
- Operating Force:Contact Us
- Oxygen Range:Contact Us
- Humidity Range:Contact Us
- Size:Contact Us
- Size / Dimension:Window Size: 4*4mm
- Measuring Range:Contact Us
- Resolution:Contact Us
- Interface:Contact Us
- Technology:Contact Us
- Sensing Range:12M (lens SB-F-02)
- Current - Output (Max):2.2-3.7V
- Bandwidth:Contact Us
- Function:Contact Us
- Acceleration Range:Contact Us
- Sensitivity (LSB/g):90~2000μV
- Sensitivity (mV/g):90~2000μV
- Sensitivity (LSB/(°/s)):90~2000μV
- Sensitivity (mV/°/s):90~2000μV
- Sensing Distance:12M (lens SB-F-02)
- Current - Output:-10~10MA
- Power - Rated:Contact Us
- Voltage - Output Difference (Typ) @ Distance:Contact Us
- Voltage - Output (Typ) @ Distance:Contact Us
- Voltage - Max:Contact Us
- Voltage - DC Reverse (Vr) (Max):Contact Us
- Power - Max:Contact Us
- Sensing Object:Contact Us
- Sensing Light:Contact Us
- Resistance:Contact Us
- Resistance Tolerance:Contact Us
- Sensing Temperature - Local:Contact Us
- Sensing Temperature - Remote:Contact Us
- Current Rating - AC:Contact Us
- Current Rating - DC:Contact Us
- Tolerance:Contact Us
- Voltage - Rated:Contact Us
- Flow Sensor Type:Contact Us
- Voltage - Input:Contact Us
- Application:Contact Us
- Output Function:Contact Us
- D/C:Contact Us
- Cross Reference:Contact Us
- Operating Temp:-30~70 ℃
- Current into any pin:-100~100 mA
- Storage Temp:-40 ~80 ℃
- Regular voltage:2.2~3.7 V
- Supply current:9 ~11 μA
- Sensitivity threshold:90~2000 μV
- Detective Wavelength:5~14 um
- Output current low:10mA
- Output current high:-10mA
- Low REL output locking time:2s

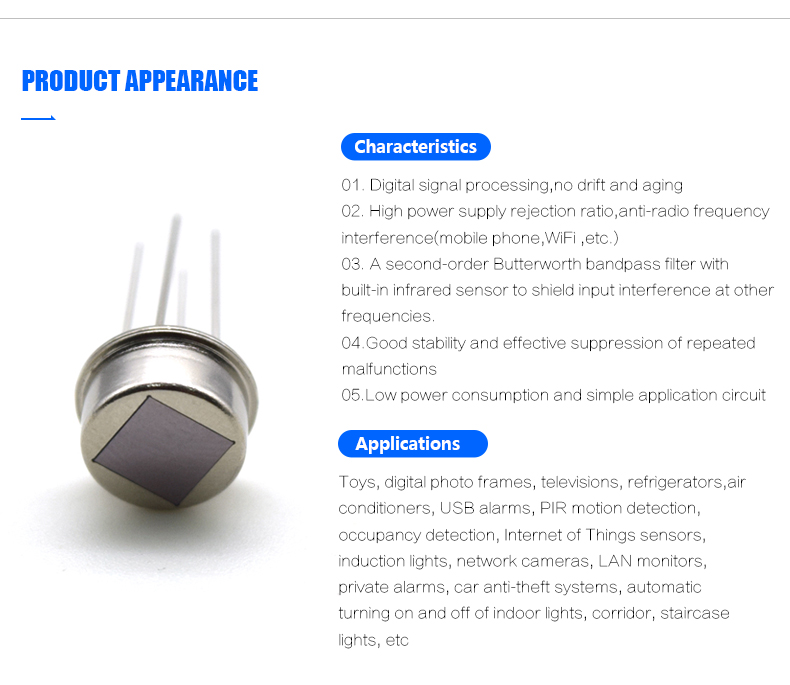

The product is a type of intelligent PIR sensor which integrates digital circuit and sensitive element in a hermetically sealed package. It interfaces directly with up two conventional PIR sensors via a high impedance differential input. The PIR signal is converted to a digital value on chip. A REL output indicates whenever the PIR Signal is above the selected threshold. The parameters for timing is set by connecting the corresponding inputs to DC voltages. All signal processing is performed digitall

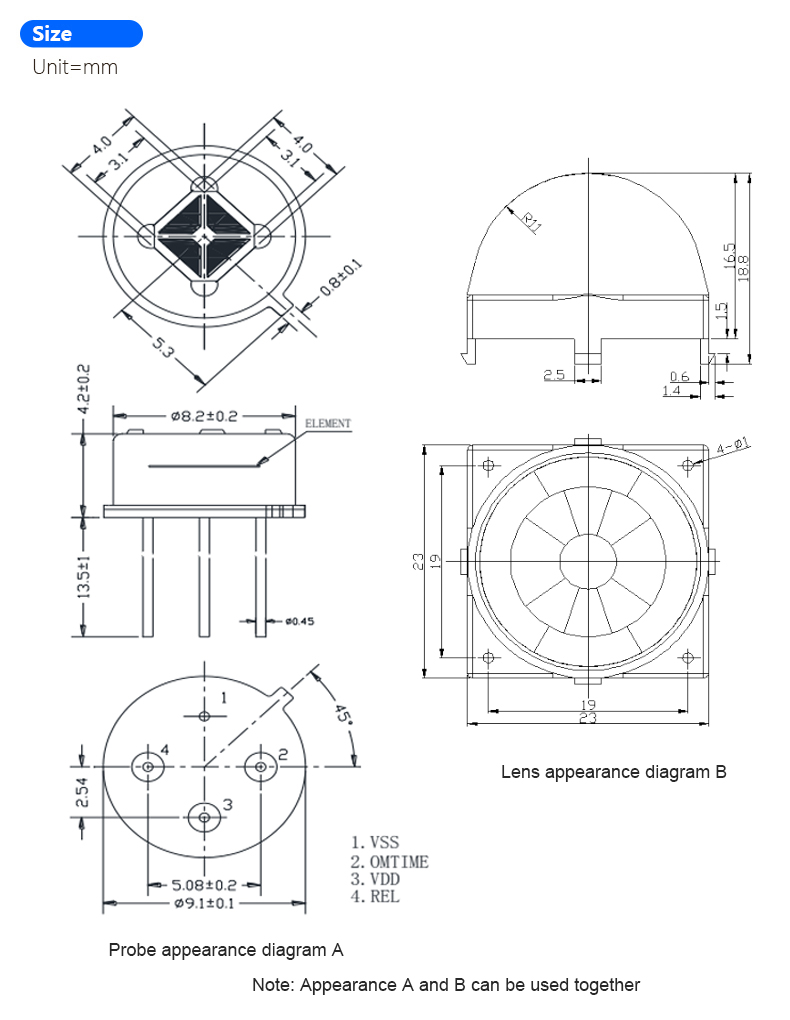

1.Absolute Maximum Ratings | ||||||||||||
Electrical characteristics(beyond those listed below may cause permanent damage to the device. Exposure to absolute maximum ratings may affect the device reliability. ) | ||||||||||||
Parameter | Symbol | Min | Max | Unit | Remarks | |||||||
Operating Temp | TST | -30 | 70 | ℃ | ||||||||
Current into any pin | Into | -100 | 100 | mA | ||||||||
Storage Temp | TST | -40 | 80 | ℃ | ||||||||
2. Operating Conditions (T=25°C, Vdd=3V，unless stated otherwise) | ||||||||||||
Parameter | Symbol | Min | Type | Max | Unit | Remarks | ||||||
Regular voltage | VDD | 2.2 | 3 | 3.7 | V | |||||||
Supply current | IDD | 9 | 9.5 | 11 | μA | |||||||
Sensitivity threshold | VSENS | 90 | 2000 | μV | ||||||||
Detective Wavelength | λ | 5 | 14 | um | ||||||||
Outputs REL | ||||||||||||
Output current low | IOL | 10 | mA | VOL<1V | ||||||||
Output current high | IOH | -10 | mA | VOH>(VDD-1V) | ||||||||
Low REL output locking time | TOL | 2 | s | Non-adjustable | ||||||||
SENS 32 Level | Adjustable | |||||||||||
Inputs SENS, ONTIME | ||||||||||||
Input voltage range | 0 | VDD1/2 | V | Adjustable between 0V and VDD/2 | ||||||||
Input leakage current | -1 | 1 | μA | |||||||||
Oscillator and Filter | ||||||||||||
LPF cutoff frequency | 7 | Hz | ||||||||||
HPF cutoff frequency | 0.44 | Hz | ||||||||||
On chip oscillator frequency | FCLK | 64 | kHz | |||||||||
