BL-QT-AO-08 Partial pressure electrochemical Oxygen Sensor
BL-QT-AO-08
BL-QT-AO-08 partial pressure electrochemical oxygen sensor is commonly used to monitor gas mixtures, such as in industrial processes, gas analysis, and some medical equipment. They respond relatively quickly to oxygen, and because they measure the partial pressure of oxygen and are not affected by other gases, they are very useful in certain applications.
minimum order
1 piece
Quantity:
BL-QT-AO-08 is a partial pressure electrochemical oxygen sensor (also called oxygen partial pressure sensor). This type of sensor is usually used to measure the partial pressure of oxygen in a gas mixture, rather than directly measuring the oxygen concentration. Its working principle is the same as Similar to ordinary electrochemical oxygen sensors, partial-pressure electrochemical oxygen sensors include a working electrode, usually composed of a noble metal (such as platinum) or other catalyst-covered material.
The outside of the O2 sensor is usually in contact with the external gas through a semipermeable membrane or a gas permeable membrane. These membranes allow oxygen to penetrate but restrict the passage of other gases. When oxygen comes into contact with the working electrode through the semipermeable membrane, it will occur on the working electrode. Oxygen reduction reaction, resulting in the transfer of electrons. This results in a current on the working electrode, the magnitude of which is proportional to the partial pressure of oxygen. By measuring this current, the sensor can determine the partial pressure of oxygen in the gas mixture.
BL-QT-AO-08 has the characteristics of long life and fast response speed. Designed with a molded body specifically designed for medical use. Best of all, it costs less to manufacture than the sensor it replaces, resulting in greater cost savings while delivering superior quality.
The use of this product is limited to system monitoring, these sensors are not suitable for breath-by-breath analysis of respiratory gases.
- Model Number:BL-QT-AO-08
- Type:Gas Sensor
- Usage:measures oxygen concentration
- Output:9 mV to 13 mV in 21%O²
- Response Time:<15s
- Operating Temperature Range:0°C~ +50°C
- Operating Pressure Range:0.5 Bar~Bar
- Operating Humidity Range:0% to 99% RH noncondensin
- Temperature Compensation:<2% O² equivalent(0°C-40°C)
- Measurement Range:0~100 Vol.% O²

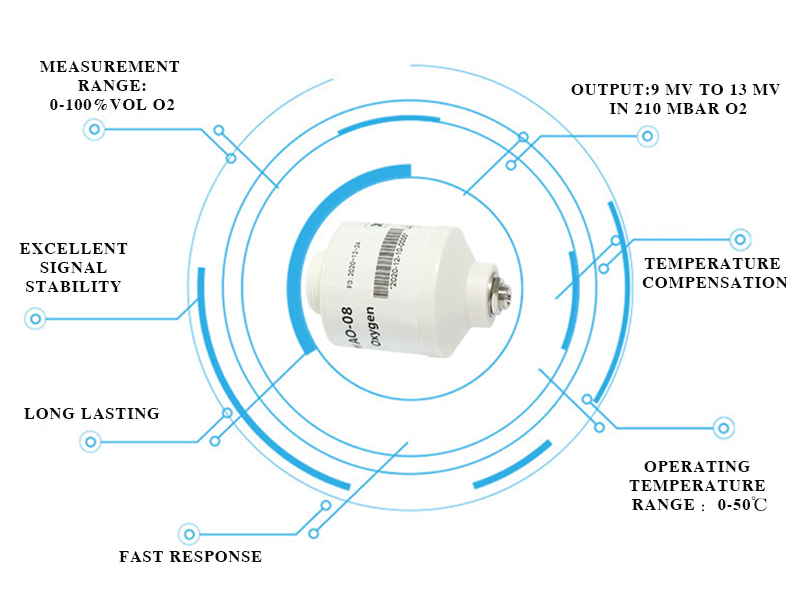

MEASUREMENT | |
Operating Principle | Partial pressure electrochemical |
Output | 9 mV to 13 mV in 210 mBar O2 |
Measurement Range | 0 - 100 Vol.% O2 |
Response Time (T 90 ) | <15 s |
Baseline Offset | ＜200μV |
Accuracy | meets ISO 80601-2-55 requirements |
Cross interference | meets ISO 80601-2-55 requirements |
ELECTRICAL | |
Temperature Compensation | ＜2% O2 equivalent（0℃-40℃） |
External Load Resistor | ≥ 10 kΩ |

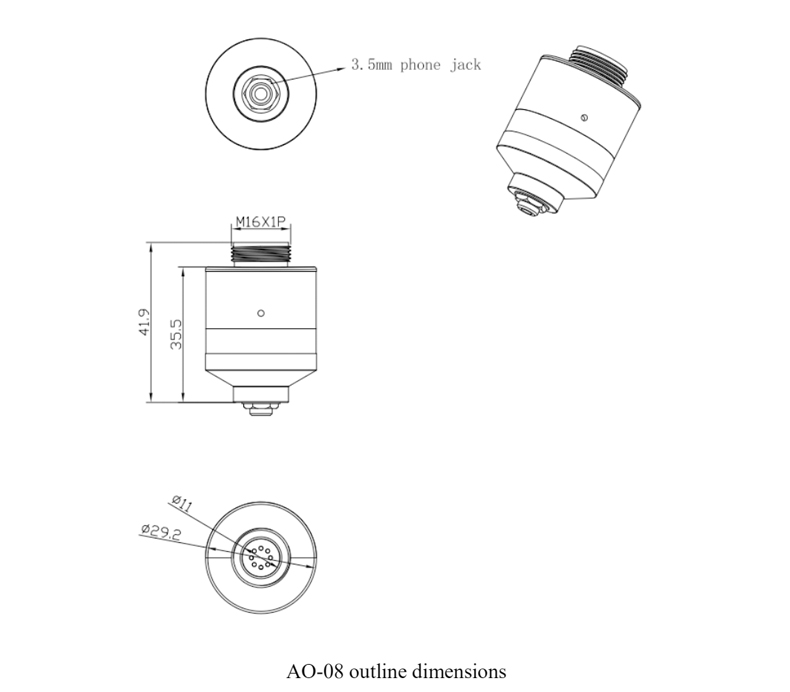

Connector | 3.5 mm phone jack |
MECHANICAL | |
Housing Material | White ABS |
Weight | 38 g (nominal) |
Orientation | Any |
Influence of Mechanical Shock | < 1 % relative after a fall from 1 m |
ENVIRONMENTAL | |
Typical Applications | Critical care anesthesia |
Operating Temperature Range | 0℃ ~ +50℃ |
Operating Pressure Range | 0.5 Bar - 2.0 Bar |
Operating Humidity Range | 0% to 99% RH noncondensing |
LIFETIME | |
Long-Term Ouput Drift in 100% O2 | < 5% signal loss/year |
Recommended Storage Temperature | 10℃ - 30℃ |
Expected Operating Life： 20℃ 40℃ | 1.5 x 106%O2 hours 0.8 x 106%O2 hours |
Standard Warranty | 13 months from date of despatch |
