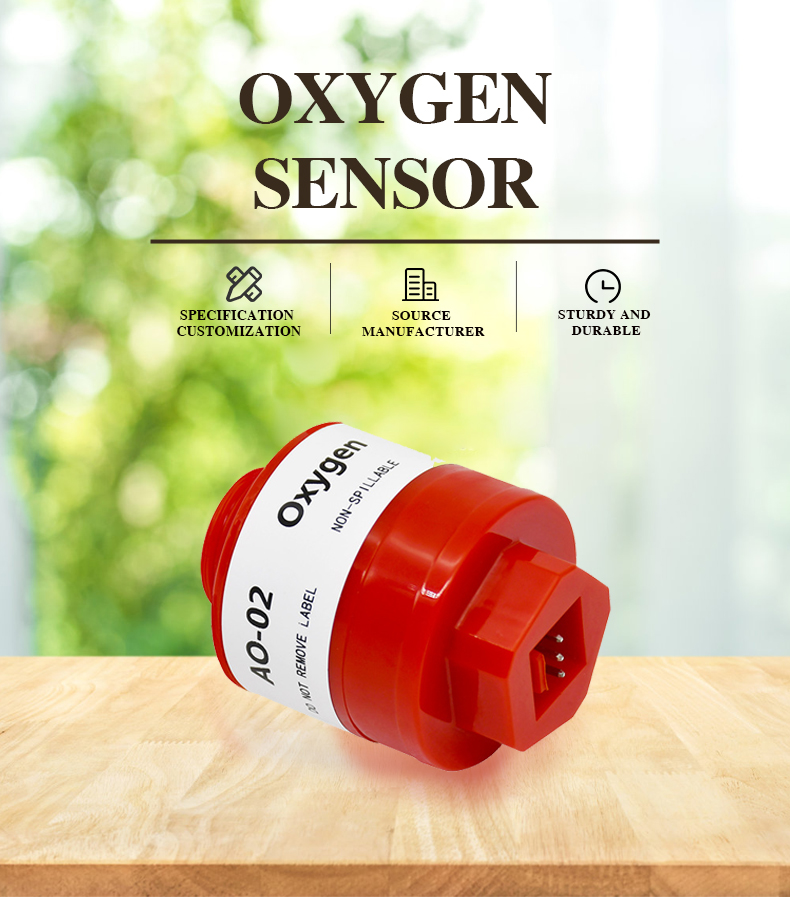

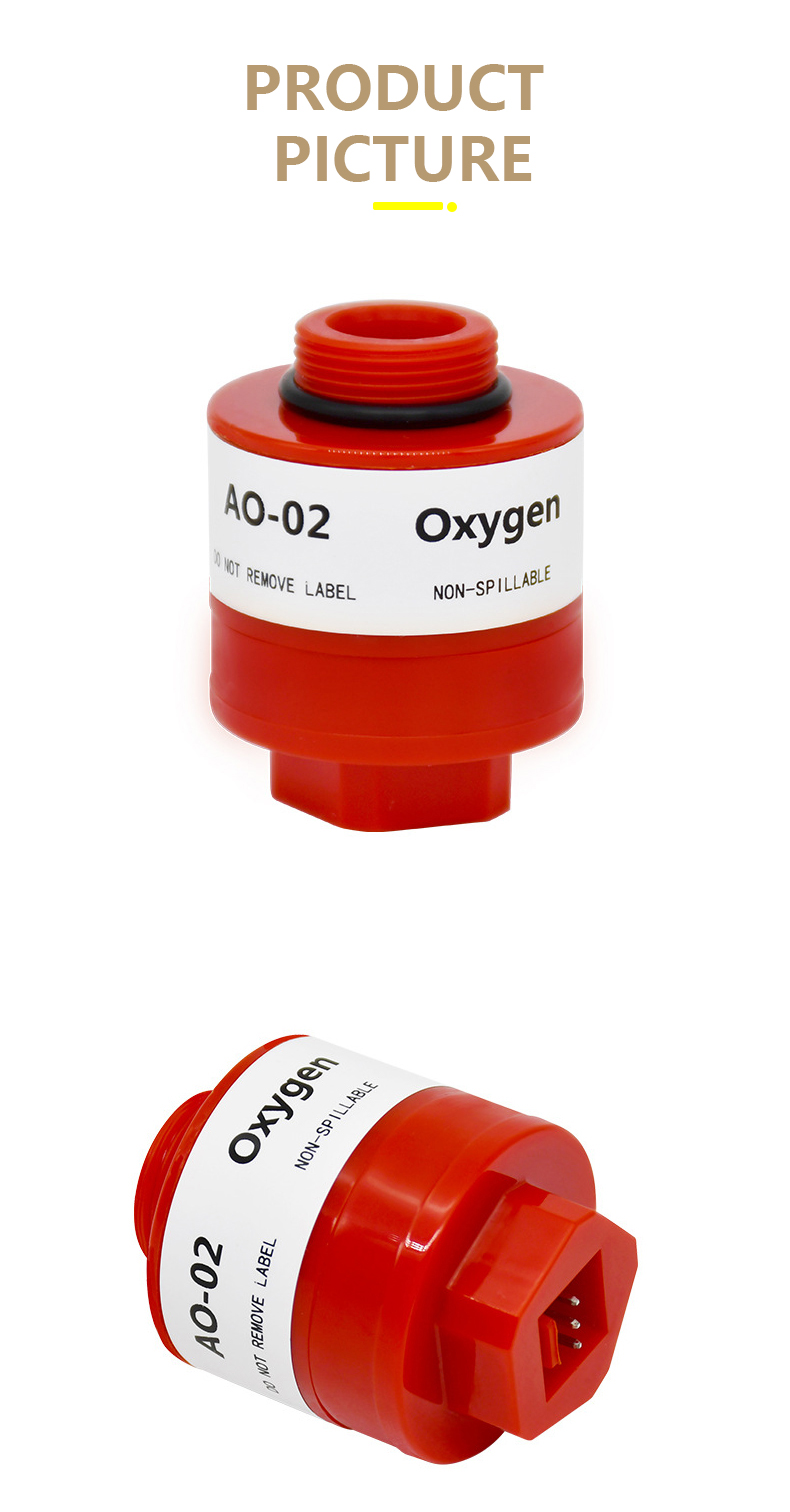

BL-YQ-AO 02 O2 Oxygen Sensor
BL-YQ-AO-02
BL-YQ-AO-02 oxygen sensor is a high-quality electrochemical sensor used for oxygen concentration detection. It adopts a molded body design and has the advantages of fast response and durability. Its structure and temperature compensation are optimized to achieve excellent performance at low cost.
minimum order
1 piece
Quantity:
BL-YQ-AO-02 is an electrochemical o2 sensor designed for use in various instruments related to oxygen detection, such as motor vehicle exhaust detection equipment, exhaust gas environmental protection detection equipment, oxygen index detection equipment, etc. Its use is limited to system monitoring. The data provided in this product is valid for 3 months from the date of gas sensors manufacture at 20°C, 50% RH and 1013 mBar. Please strictly follow the oxygen analyzer operating instructions and replace the oxygen sensor.
Advantages of electrochemical oxygen sensors include high sensitivity, short response times, and relatively low power consumption. This makes them widely used in medical equipment, industrial process control, environmental monitoring and other fields. However, regular calibration is required to ensure accuracy, and some specific models may be sensitive to humidity and temperature.
- Model Number:BL-YQ-AO-02
- Type:O2 Gas Sensor
- Usage:oxygen concentration detection
- Output:9 mV to 13 mV in AirLinear output from 0 to 100%
- Response Time:<5 s (T90)
- Operating Temperature Range:0°C to +50°C
- Operating Pressure Range:0.5 Bar~2.0 Bar
- Operating Humidity Range:0% to 99% RH non-condensing
- Temperature Compensation:<2% O² equivalent variation from 0°C to 40°C
- Measurement Range:0~100 Vol.% O²
| Measurement | |
Operating Principle | Partial Pressure Electrochemical |
Output | 9 - 13 mV in Air |
Measurement Range | 0 - 100%Vol.O2 |
Response Time (T 90 ) | <5 s |
Response Time (T 99.5 )2 | <40 s |
Baseline Offset | <20 μV |
Linearity | Linear 0-100%Vol.O2 |
Electrical | |
Temperature Compensation | <2% O2 equivalent variation from 0 °C to 40 °C |
External Load Resistor | ≥ 10 kΩ |

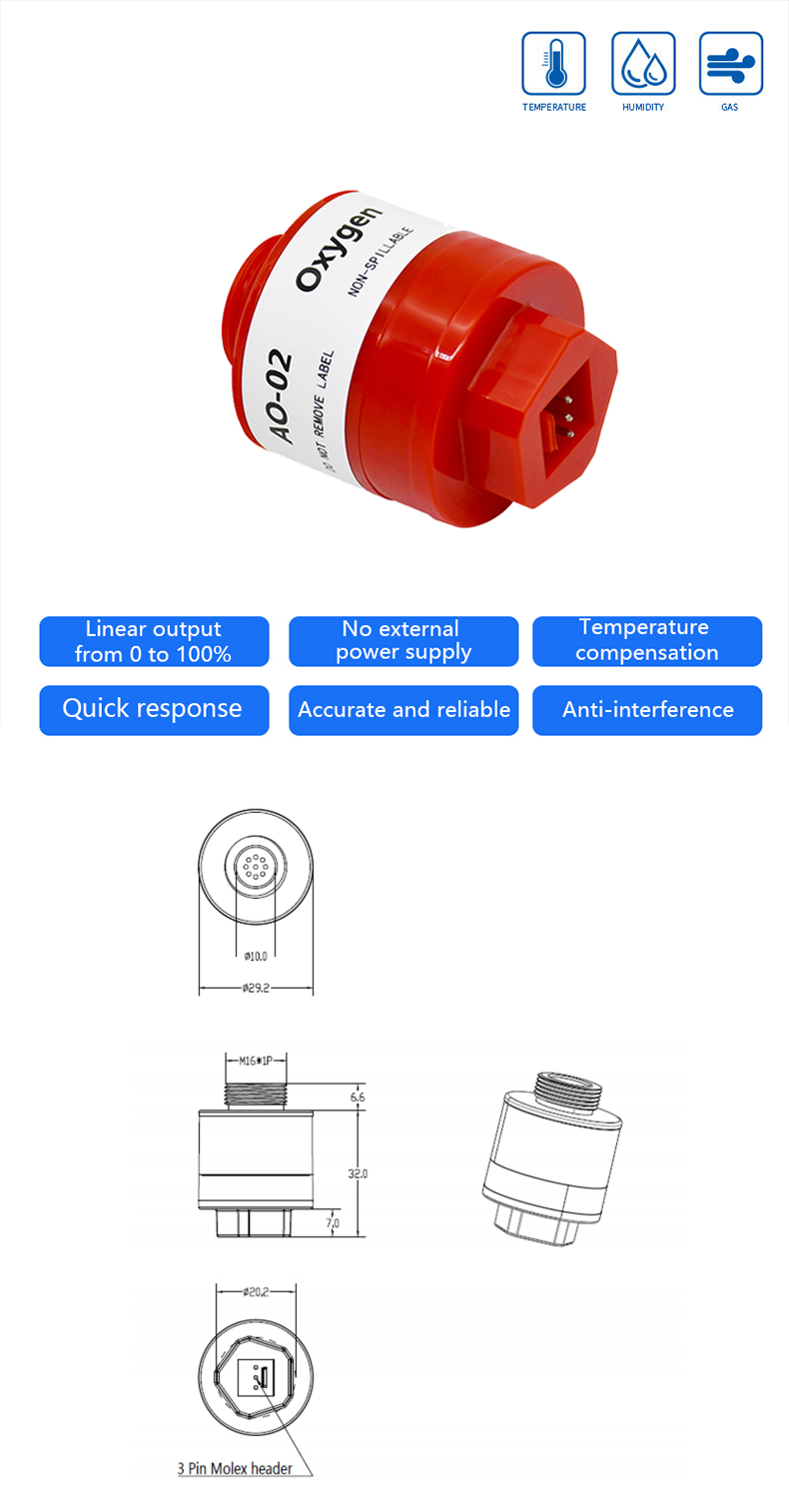

Connector | 3 Pin Molex header (MOLEX 22-29-2031) |
Recommended Mating Part3 | Molex 3-Way Housing (MOLEX 22-01-2035) Molex Crimp Terminals (MOLEX 08-45-0110) |
Mechanical | |
Housing Material | Red ABS |
Weight | 40 g (nominal) |
Orientation | Any |
Environmental | |
Operating Temperature Range | 0 °C to +50 °C |
Operating Pressure Range | 0.5 - 2.0 Bar |
Differential Pressure Rang | 0 - 500 mBar |
Operating Humidity Range | 0 - 99% RH non-condensing |
Lifetime | |
Long Term Output Drift in 100% O2 4 | < 10% signal loss/year |
Expected Operating Life | 3.6 × 105% O2 hours at 20 °C 2.86 × 105% O2 hours at 40 °C 2 years in air at STP |
Packaging | Sealed blister |
