Reed Switch

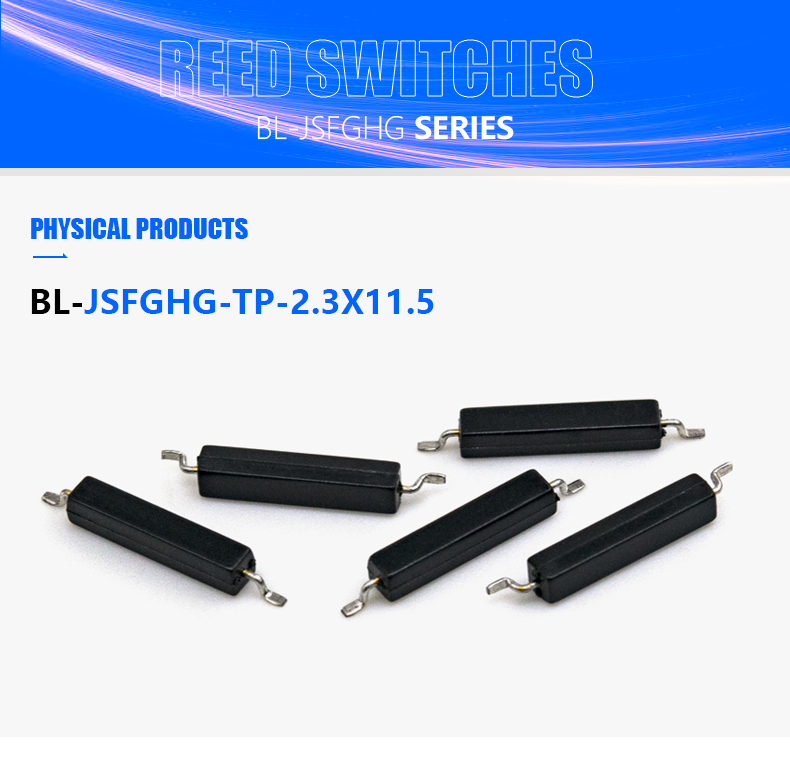

BL-JSFGHG-TP-2.3X11.5 magnetic normally open surface mount reed switch sensor 0.5A smd plastic reed switches

BL-JSFGHG-TP-2.3X11.5
Bailing electronic reed switch manufacturer, providing glass reed switch, plastic seal reed switch, high pressure reed switch, magnetic reed switch, magnetic switch, support program customization, email to amanda@bl28.com.
minimum order
1 piece
Quantity:
Contact Now
add to cart
  • Certification:RoHS
  • Whether the smart:NO
  • Place of Origin:Guangdong, China
  • Brand Name:Beelee
  • Model Number:BL-JSFGHG-TP-2.3X11.5
  • Max. Current:0.5A
  • Max. Voltage:100V
  • Max.Contact Rating:10W
  • Max.Switching Current:0.5A
  • Max.Switching Voltage:100V
  • Max.Carry Current:0.5A
  • Breakdown Voltage:110/150 V
  • Pull in (at 20℃):7-15
  • Contact Resistancence:150mΩ

01.Micro changeover reed switch hermetically sealed in gas fulled envelope.Single-pole, double-throw (SPST-NO) type, normally open and normally closed contact.

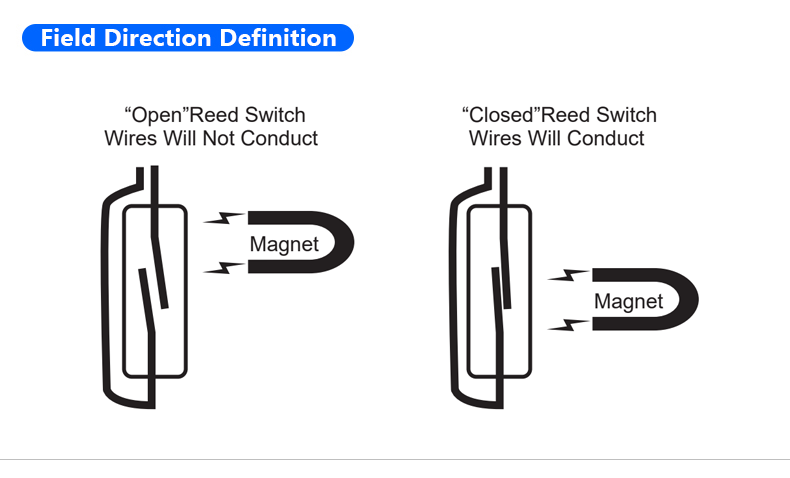

02.The switch may be actuated by an electromagnet, a permanent magnet or a combination of both.The device is intended for use in sensors, relays, pulse counters or similar devices.

ParametersUnitBL-JSFGHG-TP-2.3X11.5
Contact FormA
Contact RatingW10.0
Switching VoltageV100
Switching CurrentA0.5
Carry CurrentA0.5
Contact ResistancenceMΩ150
Breakdown VoltagenceV110/150
Pull in ValueAT7-15
Insulation ResistanceMΩ10000
Operating temperature℃-40~125

About us

About us

1.Q:Can I get sample from you?

A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.

2.Q:Do you accept customization?

A:Yes,customization is acceptable,please contact our sales staffs for consult.

3.Q:Can you provide help for technical issues?

A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us

4.Q:How many types of switches do you have,and what about your quality?

A:We have 10 different types of switches for your choice,all our products is passed the ROHS and REACH,please trust we definitely could meet your quality stander.
