surface mount reed switch

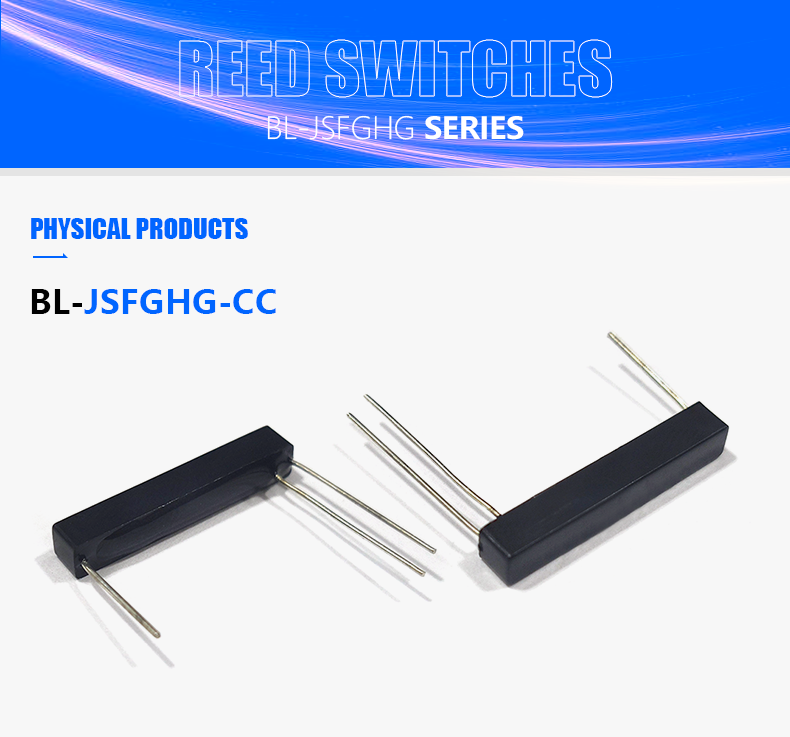

BL-JSFGHG-CC magnetic reed switch sensor Transfer surface mount reed switch 0.4A smd plastic reed switches

BL-JSFGHG-CC
Bailing electronic reed switch manufacturer, providing glass reed switch, plastic seal reed switch, high pressure reed switch, magnetic reed switch, magnetic switch, support program customization, email to amanda@bl28.com.
minimum order
1 piece
Quantity:
Contact Now
add to cart
  • Certification:RoHS
  • Whether the smart:NO
  • Place of Origin:Guangdong, China
  • Brand Name:Beelee
  • Model Number:BL-JSFGHG-CC
  • Max. Current:0.4A
  • Max. Voltage:200VDC
  • Operate Range:10-20AT
  • Contact Rating:5W
  • Switching Voltage:175 Vdc / Vac
  • Switched Vdc/Vac (max):200/140
  • Contact Currence (max):0.5A
  • Carry Current (max):0.4A
  • Breakdown Voltage:120mΩ

01. Micro changeover reed switch hermetically sealed in gas fulled envelope.Single-pole, double-throw(SPST-NO/NC) type, normally open and normally closed contact.

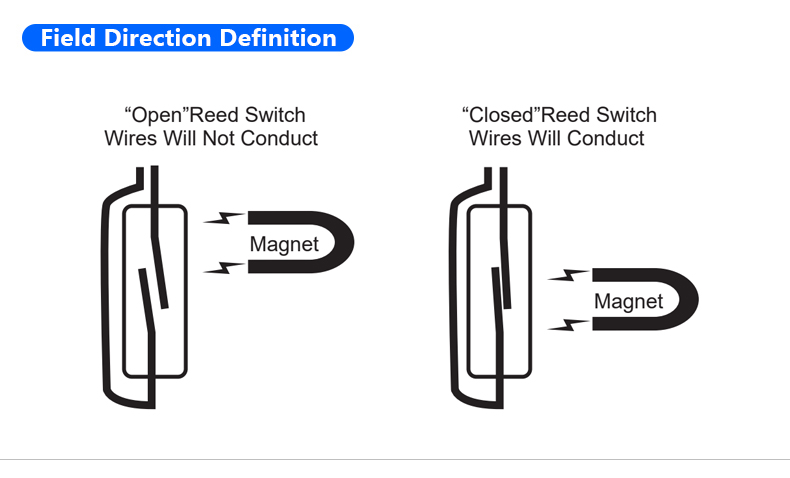

02.The switch may be actuated by an electromagnet,a permanent magnet or a combination of both.The device is intended for use in sensors,relays,pulse counters or similar devices.

ParametersUnitBL-JSFGHG-CC
Contact FormForm C
Max.Contact RatingW5
Max.Switching VoltageVdc / Vac175
Max.Switching CurrentA0.4
Max.Contact CurrenceA0.5
Max.Contact ResistanceV200
Min.Breakdown VoltagemΩ120
Pull-in SensitivityAT10-20

About us

About us

1.Q:Can I get sample from you?

A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.

2.Q:Do you accept customization?

A:Yes,customization is acceptable,please contact our sales staffs for consult.

3.Q:Can you provide help for technical issues?

A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us

4.Q:How many types of switches do you have,and what about your quality?

A:We have 10 different types of switches for your choice,all our products is passed the ROHS and REACH,please trust we definitely could meet your quality stander.
