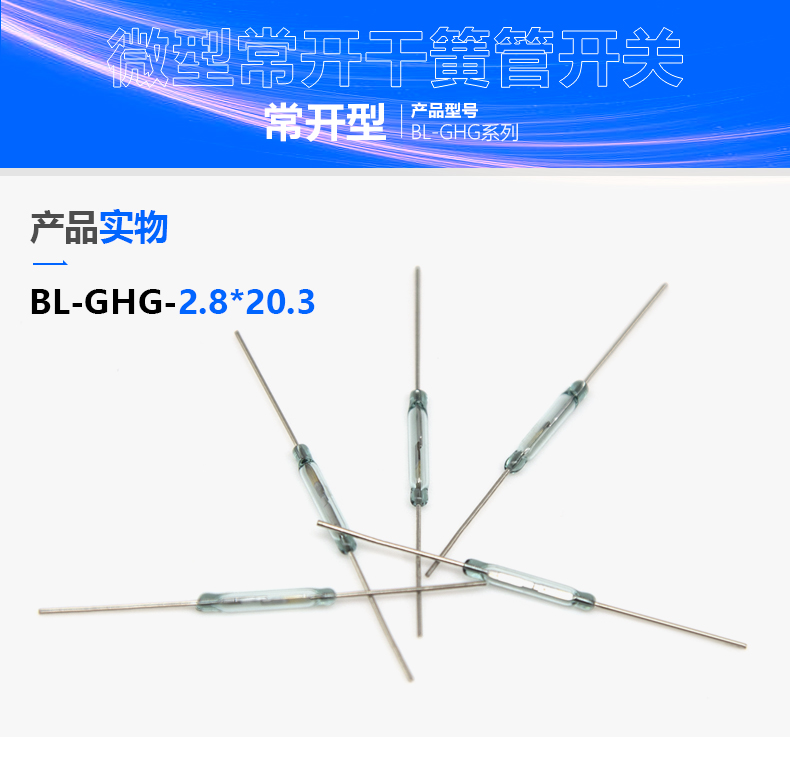

BL-GHG-2.8X20.3 Normally Open Green Tube Water Meter Magnetic Reed Switch Micro Reed Sensors

• BL-GHG-2.8X20.3  Reed switch is the magnetically controlled magnetic switch normally open 4*28mm with green glass tube gold/silver pin, Application for water meter, doors, car and etc.
• Type:magnetic reed switch sensor
• Place of Origin:CN
• Certification:RohS
• Brand Name:Beelee
• Model Number:BL-GHG-2.8X20.3
• Max. Current:0.5A
• Max. Voltage:220VDC

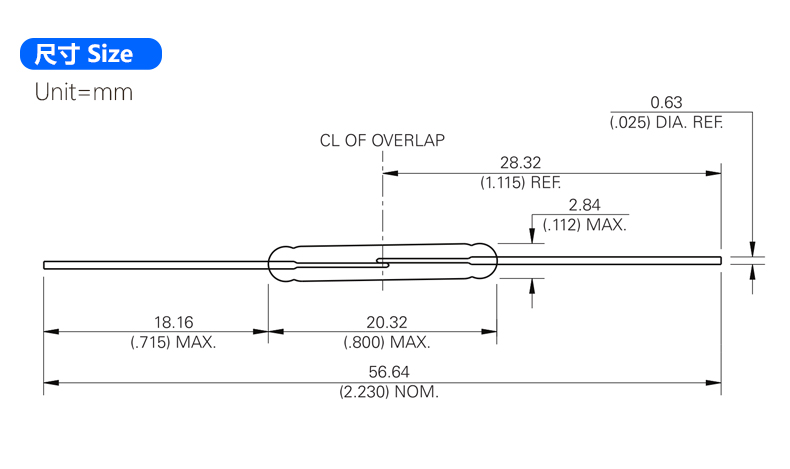

BL-GHG-2.8*20.3 Dry Reed Tube is a miniature normally open switch with a glass case 20.32 mm long x 2.84 mm diameter (0.800 * x 0.112 *) capable of 265VAC high voltage and power switching at 50VA.

01.BL-GHG-2.8*20.3 Dry Reed Tube is a miniature normally open switch with a glass case 20.32 mm long x 2.84 mm diameter (0.800 * x 0.112 *) capable of high voltage and power switching of 265 VAC at 50VA.BL-GHG-2.8*20.3 has a high insulation resistance of at least 10 ohm and a contact resistance of less than 100 mOhms.

02. Sealed switch contacts are not affected by or affected by the external environment.

03.Miniature switch with high voltage and high power.
