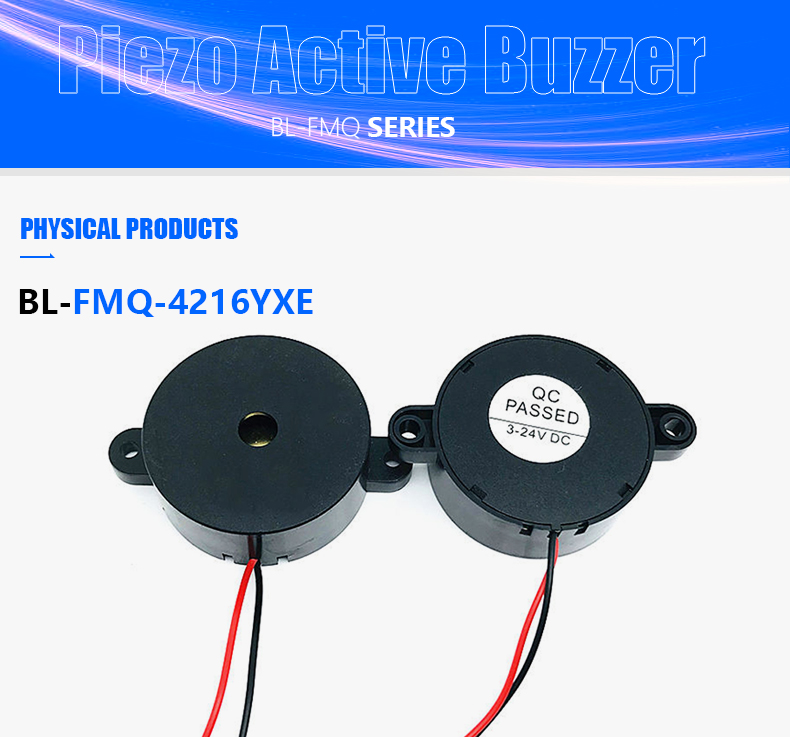

BL-FMQ-4216YXE DC 95db round Electronic Active warning 24v 5v 12v Piezo buzzer alarm for Intelligent wearability and other aspec
- Model Number:BL-FMQ-4216YXE
- Type:Buzzer
- Place of Origin:Guangdong, China
- Brand Name:Beelee
- D/C:contact us
- Material:Plastic
- Color:black
- Packaging:contact us
- Input Type:AC, DC
- Voltage - Rated:contact us
- Voltage Range:contact us
- Frequency:contact us
- Technology:Piezo
- Operating Mode:Not Applicable
- Duration:Variable
- Current - Supply:contact us
- Operating Temperature:-20℃~85℃
- Mounting Type:Wire Lead
- Termination:None
- Size / Dimension:contact us
- Height - Seated (Max):9±0.3
- Voltage - Input (Max):Not Applicable
- Impedance:contact us
- Capacitance @ Frequency:Not Applicable
- Output Type:Not Applicable
- Frequency Range:contact us
- Height (Max):contact us
- Frequency - Self Resonant:contact us
- Efficiency - Type:Sensitivity
- Power - Rated:contact us
- Power - Max:contact us
- Rated Voltage:contact us
- Cross Reference:contact us
- Sound Pressure Level:Min95/10cm
- Resonant Frequency:2700±500 Hz
- Rated current:Max12 mA
- Operating Voltage:3~24DC(V)
- Weight:15gram
Buzzer is an electronic buzzer with integrated structure, which is powered by DC voltage.
01.Buzzer is an electronic buzzer with integrated structure, which is powered by DC voltage.
02.It has the characteristics of stable performance, good consistency and sensitive response.
03.It is widely used as a sounding device in electronic products such as computers, printers, copiers, alarms, electronic toys, automotive electronic equipment, telephones, timers and so on.
| Item | Unit | BL-FMQ-4216YXE |
| Rated Voltage | DC(V) | 12 |
| Operating Voltage | DC(V) | 3-24 |
| Rated Current | mA | Max12 |
| Sound Pressure Level | dB | Min95/10cm |
| Resonant Frequency | Hz | 2700±500 |
| Operation Temperature | ℃ | -20℃~+85℃ |
| Weight | g | 15g |
1.Q:Can I get sample from you?
A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.
2.Q:Do you accept customization?
A:Yes,customization is acceptable,please contact our sales staffs for consult.
3.Q:Can you provide help for technical issues?
A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us
4.Q:How many types of switches do you have,and what about your quality?
A:We have 10 different types of switches for your choice,all our products is passed the ROHS and REACH,please trust we definitely could meet your quality stander.
