Beelee 22.7*10mm buzzer piezo active SMD piezo buzzer 85dB 90dB

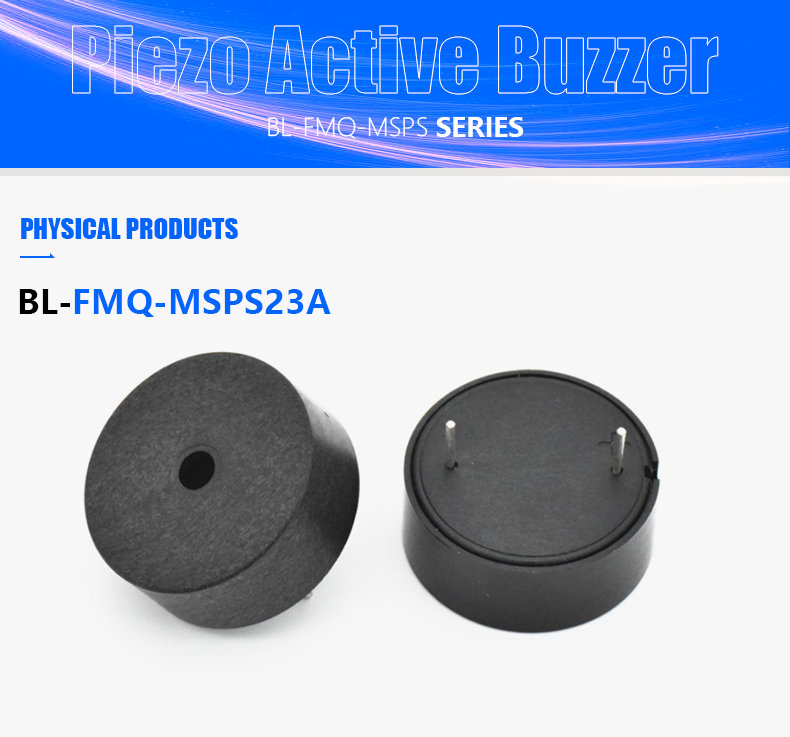

• Model Number:BL-FMQ-MSPS23A
• Type:Buzzer
• Place of Origin:Guangdong, China
• Brand Name:Beelee
• Material:Plastic
• Color:Black
• Input Type:AC, DC
• Voltage - Rated:6Vdc
• Voltage Range:6V~12V
• Technology:Piezo
• Operating Temperature:-20~60℃
• Mounting Type:Surface Mount
• Termination:None

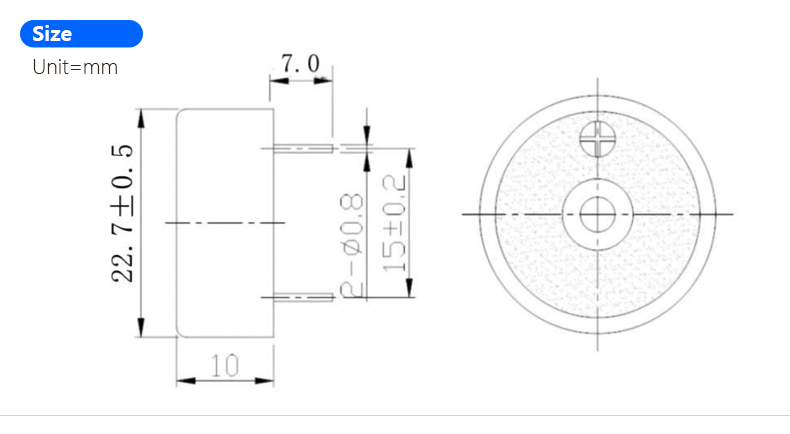

• Size / Dimension:22.7*10mm
• Output Type:Not Applicable
• Rated Voltage:6V
• Sound Pressure at 10cm:≥85dB
• Resonant Frequency:4.5±0.5kHz
• Rated current:≤15mA
• Operating Voltage:≤24Vdc
• Weight:5gram

Buzzer is an electronic buzzer with integrated structure, which is powered by DC voltage.

01.Buzzer is an electronic buzzer with integrated structure, which is powered by DC voltage.

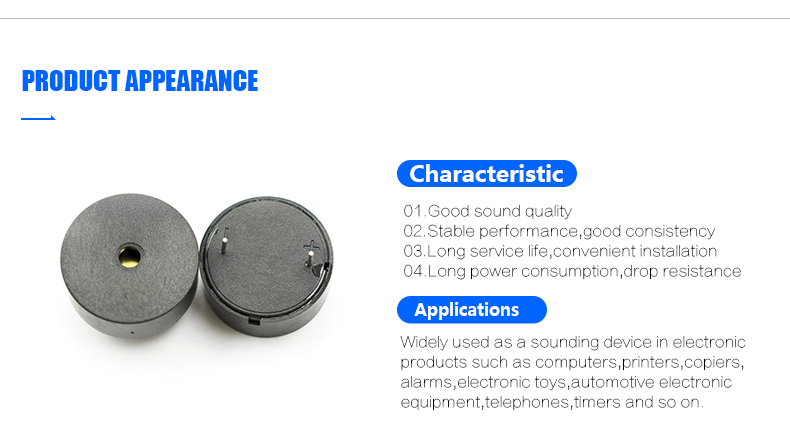

02.It has the characteristics of stable performance, good consistency,low power consumption and drop resistanceand.
03.It is widely used as a sounding device in electronic products such as computers, printers, copiers, alarms, electronic toys, automotive electronic equipment, telephones, timers and so on.
