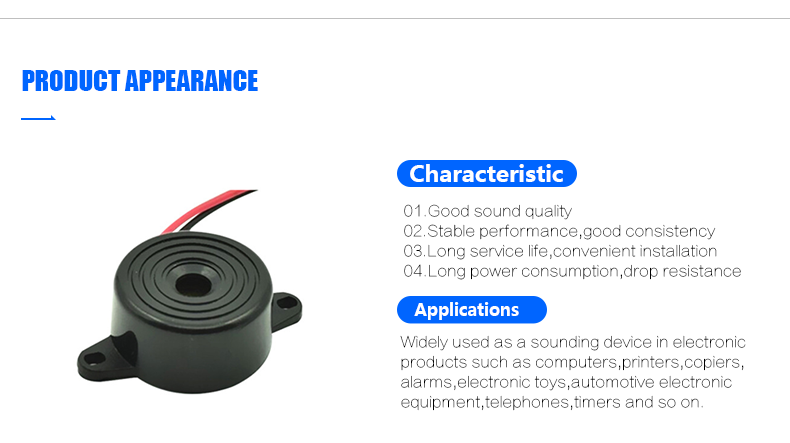

piezo active buzzer

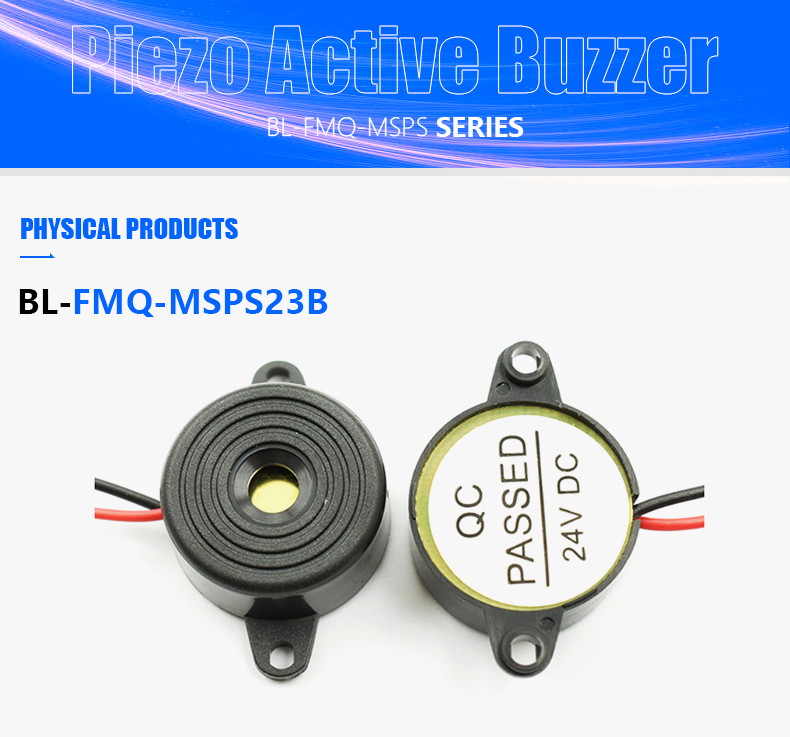

Beelee piezo active buzzer smd 12Vdc buzzer for electronic toys

BL-FMQ-MSPS23B
minimum order
1 piece
Quantity:
Contact Now
add to cart
  • Model Number:BL-FMQ-MSPS23B
  • Type:Buzzer
  • Place of Origin:Guangdong, China
  • Brand Name:Beelee
  • Material:Plastic
  • Color:Black
  • Input Type:AC, DC
  • Voltage - Rated:12Vdc
  • Technology:Piezo
  • Operating Temperature:-20~60℃
  • Mounting Type:Surface Mount
  • Termination:None

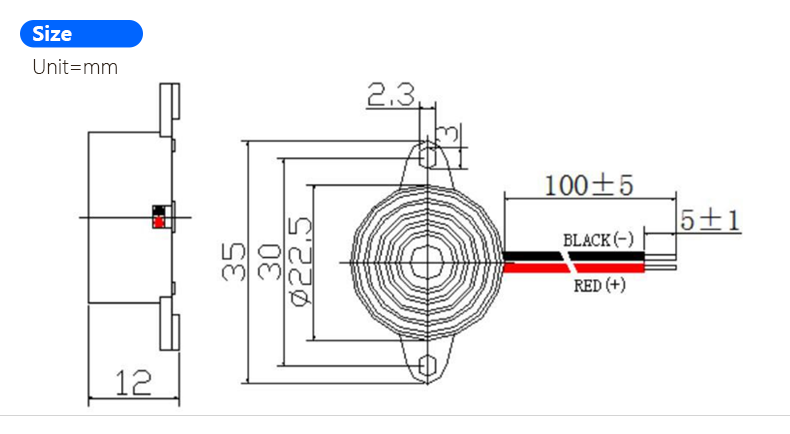

  • Size / Dimension:35*12mm
  • Output Type:Not Applicable
  • Sound Pressure at 10cm:≥95dB
  • Resonant Frequency:3.3±0.5kHz
  • Rated current:≤12mA
  • Operating Voltage:1.5~24Vdc
  • Weight:4gram

ItemUnit12Vdc
Sound Pressure at 10cmdB≥95
Resonant FrequencykHz3.3±0.5
Rated currentmA≤12
Operating VoltageVdc1.5~24
Operation Temperature℃-20~60℃
Weightgram4
About us

1.Q:Can I get sample from you?

A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.

2.Q:Do you accept customization?

A:Yes,customization is acceptable,please contact our sales staffs for consult.

3.Q:Can you provide help for technical issues?

A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us

4.Q:How many types of switches do you have,and what about your quality?

A:We have 10 different types of switches for your choice,all our products is passed the ROHS and REACH,please trust we definitely could meet your quality stander.
