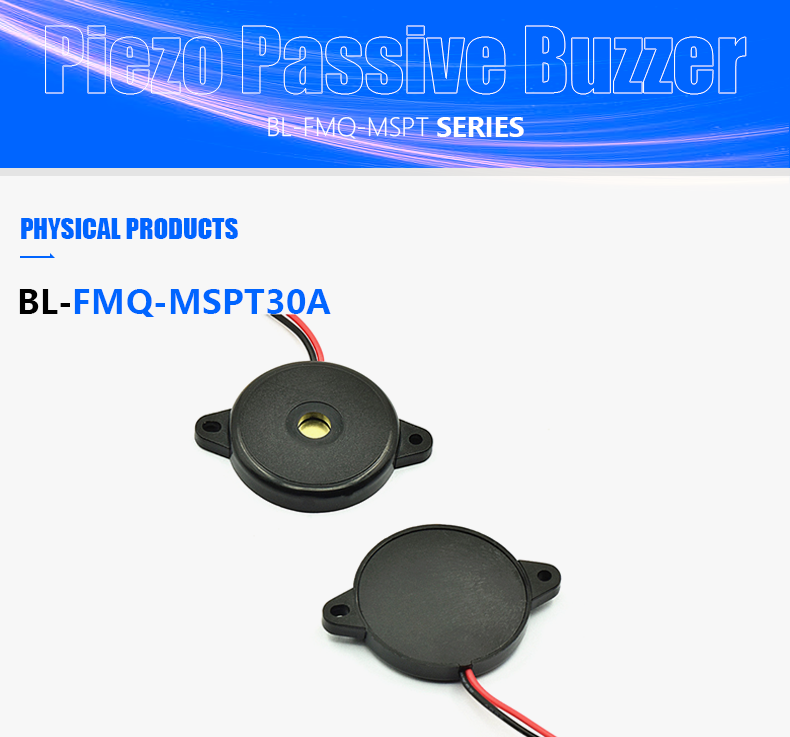

Beelee buzzer with wire piezo 12Vdc active buzzer BL-FMQ-MSPT30A

BL-FMQ-MSPT30A

minimum order

1 piece

Quantity:

Contact Now

add to cart

Model Number:BL-FMQ-MSPT30A
Type:Buzzer
Place of Origin:Guangdong, China
Brand Name:Beelee
Material:Plastic
Color:Black
Input Type:AC, DC
Technology:Piezo
Operating Temperature:-20℃~60℃
Mounting Type:Wire Lead
Termination:None

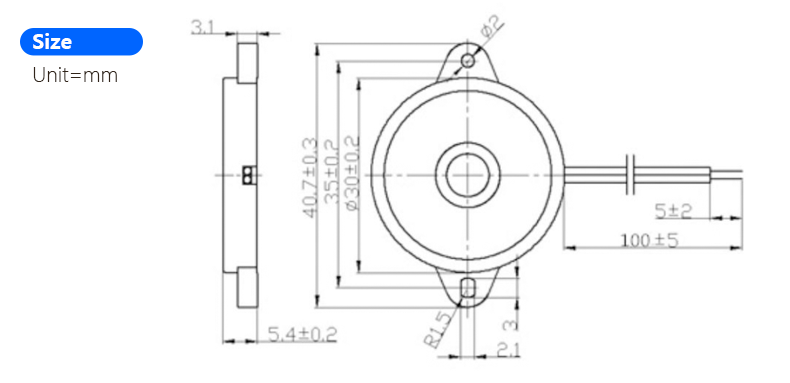

Size / Dimension:40.7*5.4mm
Output Type:Not Applicable
Efficiency - Type:Sensitivity
Sound pressure at 10cm:≥85dB
Resonant Frequency:1.3±0.5kHz
Rated current:≤3.5mA
Operating Voltage:1~40Vp-p
Weight:3.5gram

Buzzer is an electronic buzzer with integrated structure, which is powered by DC voltage.

01.Buzzer is an electronic buzzer with integrated structure, which is powered by DC voltage.

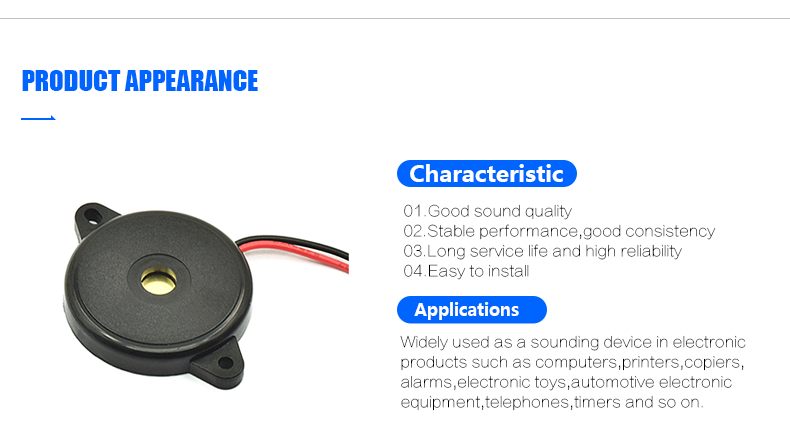

02.It has the characteristics of stable performance, good consistency and sensitive response.
03.It is widely used as a sounding device in electronic products such as computers, printers, copiers, alarms, electronic toys, automotive electronic equipment, telephones, timers and so on.

Item	Unit	12Vdc	9Vdc
Sound pressure at 10cm	dB	≥85	≥88
Resonant Frequency	kHz	1.3±0.5	3.5±0.5
Rated current	mA	≤3.5	≤3
Operating Voltage	Vp-p	1~40
Operation Temperature	℃	-20~60
Weight	gram	3.5
