BL-0214 Magnetic switches reed sensor glass reed switch
B-0214

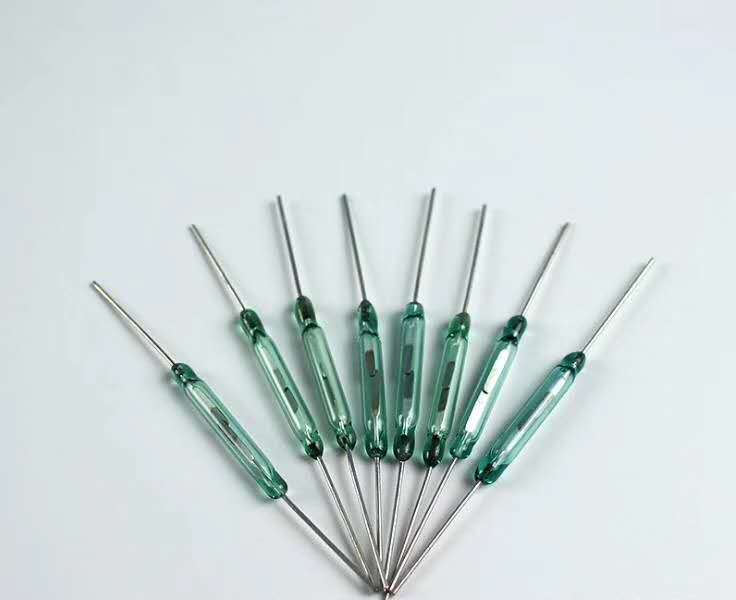

BL-0214 Reed switch is a special magnetic sensitive switch with small size 2*14mm green glass silver pin, which is the main component of Reed relay and proximity Switch.
Application for water meter, automative machine,car and etc.
Application for water meter, automative machine,car and etc.
Quantity:

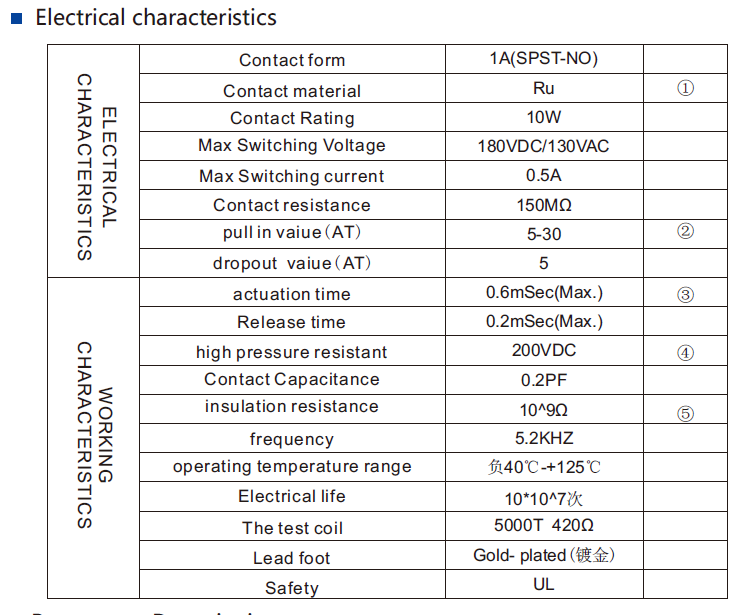

- Product name:Reed switch

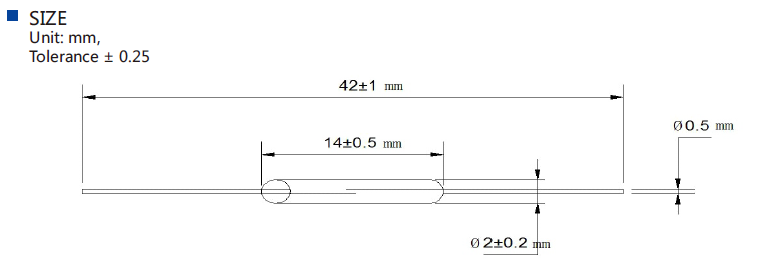

- Size:2*14mm
- AT Rating:10-15
- Contact form:1A(SPST-NO)
- Contact material:Ru
- Contact Rating:10W
- Max Switching Voltage:180VDC/130VAC
- Max Switching current:0.5A
- Contact resistance:150MΩ
- pull in value( AT):5-30
- Place of Origin:CN;GUA
- Brand Name:Beelee
- Model Number:B-0214
- Max. Current:0.5A
- Max. Voltage:180V DC
Product Description
Magnetic switches reed sensor glass reed switch
