4V buzzer

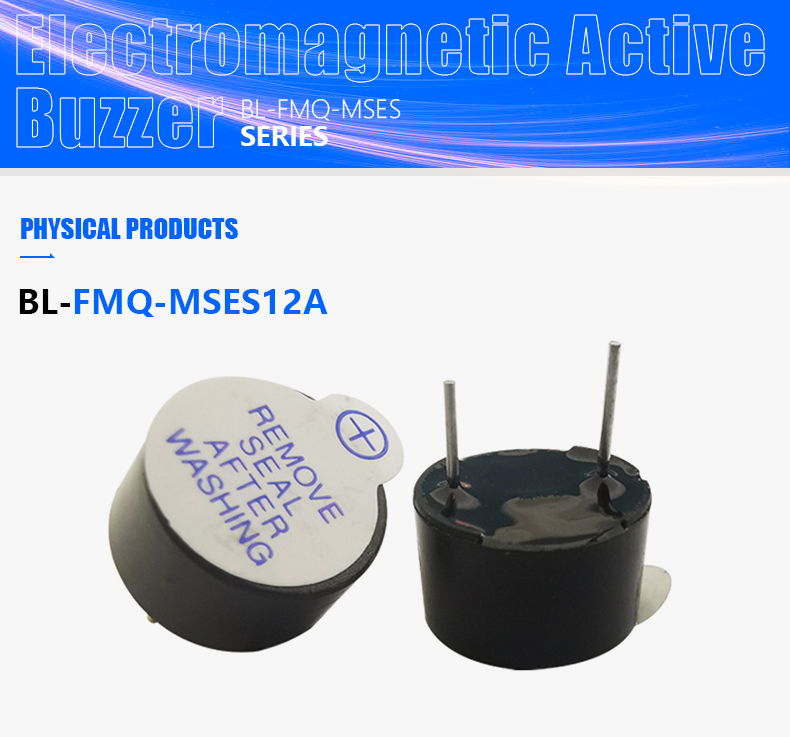

Beelee buzzer 1.5V 3V 4V DC voltage 85dB buzzer for automotive electronic equipment

BL-FMQ-MSES12A
minimum order
1 piece
Quantity:
Contact Now
add to cart
  • Model Number:BL-FMQ-MSES12A
  • Type:Buzzer
  • Place of Origin:Guangdong, China
  • Brand Name:Beelee
  • Material:Plastic
  • Color:Blue
  • Voltage - Rated:5VDC
  • Voltage Range:3-74VDC
  • Frequency:2700±300Hz
  • Technology:Piezo (with Feedback)
  • Operating Mode:Click
  • Duration:MAX 50MS
  • Current - Supply:≤30mA
  • Operating Temperature:-40°C ~ 85°C

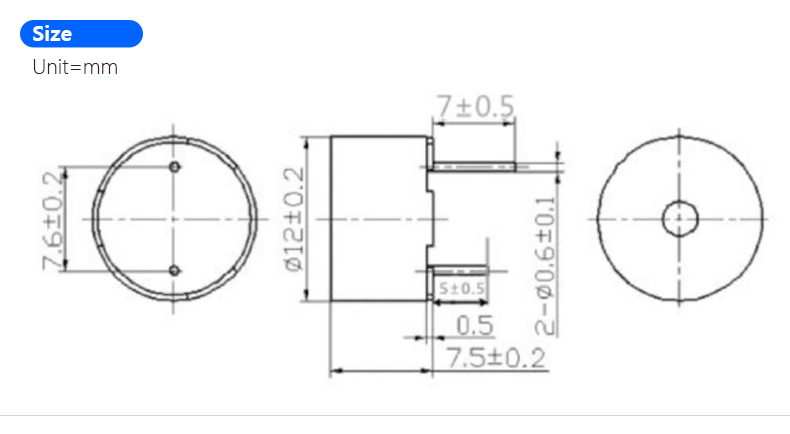

  • Size / Dimension:12x7.5
  • Voltage - Input (Max):Not Applicable
  • Capacitance @ Frequency:Not Applicable
  • Output Type:Not Applicable
  • Efficiency - Type:Not Applicable
  • Power - Max:Not Applicable
  • Rated Voltage:Not Applicable
  • Sound pressure level=SPL:Min 87dB
  • Response time:Max 50mS
  • Storage temperature:-40~+85℃
  • Terminal strength:10N
  • Weight:2g

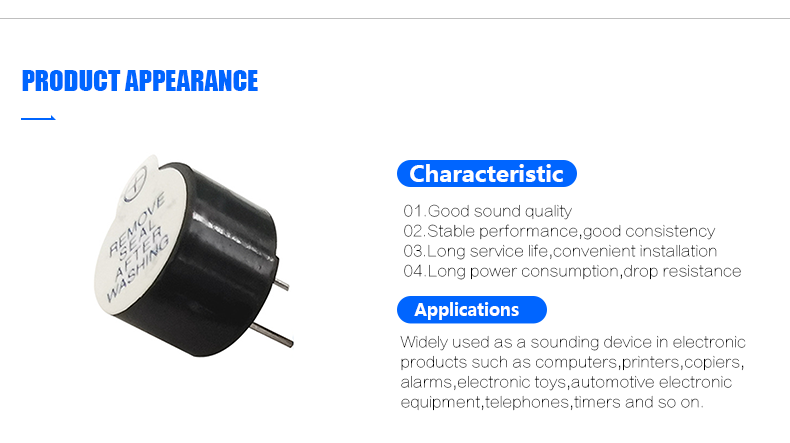

01.Buzzer is an electronic buzzer with integrated structure, which is powered by DC voltage.
02.It has the characteristics of stable performance, good consistency,low power consumption and drop resistanceand.
03.It is widely used as a sounding device in electronic products such as computers, printers, copiers, alarms, electronic toys, automotive electronic equipment, telephones, timers and so on.

ItemSpecifications
Rated voltage3VDC
Operating voltage1.5-4VDC
Sound pressure level=SPLMin 87dB
Electric current≤30mA
Oscillation frequency2700±300Hz
Response timeMax 50mS
Operating temperature range-40~+85℃
Storage temperature-40~+85℃
Terminal strength10N
Size12x7.5
Weight2g
