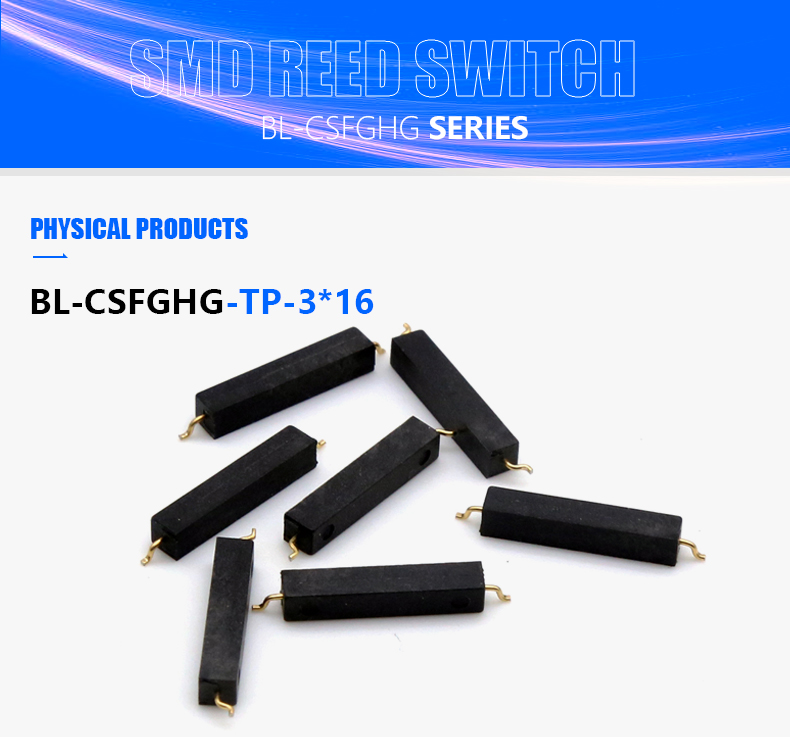

SMD reed sensor switch

Beelee BL-CSFGHG-TP-3x16 SMD reed sensor switch magnetic cylindrical sealed proximity reed switch for water meters

BL-CSFGHG-TP-3x16
minimum order
1 piece
Quantity:
Contact Now
add to cart
  • Model Number:BL-CSFGHG-TP-3x16
  • Place of Origin:Guangdong, China
  • Brand Name:Beelee
  • Contact Rating:10 W
  • Switching Voltage:200 V.AC/DC
  • Max. current:0.5 A
  • Contact Resistancence:150 mΩ
  • Withstand voltage:250 min V.DC
  • min. Insulation Resistance:1*10^10 ohm
  • Operating temperature:-40~+125
  • Operating time:0.6ms

01. Miniature transfer spring switch is sealed in an inflatable shell. Single pole double throw (SPDT) type, with normally open and normally closed contacts.

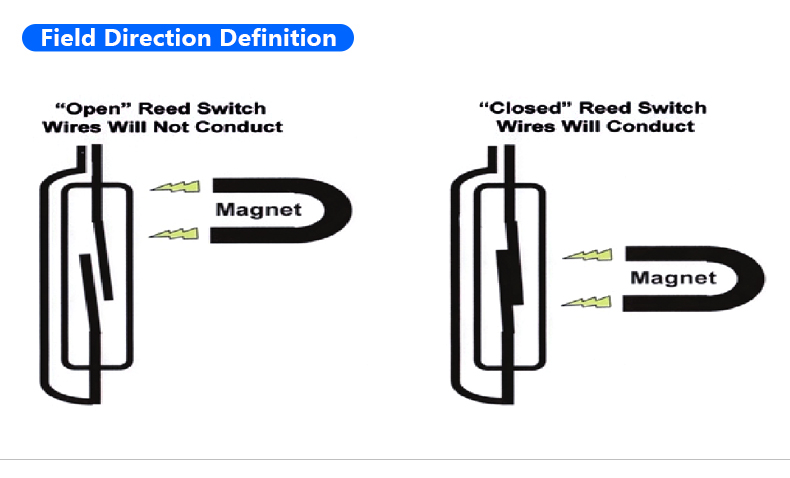

02. Switches can be switched on by combining electromagnets or permanent magnets.

03. The equipment is used for sensors, relays, pulse counters or similar equipment.

ParametersUnitBL-CSFGHG-TP-3X16
Pull in ValueAT10-40
Release valueAT5 min
Contact resistancem ohm150 max
Insulation resistanceohm1*1010min
Withstand voltageV.DC250 min
Contact RatingW10
Max.switching voltageV.AC/DC200
Max. currentA0.5
Max.energizing currentA1
Operating timem sec0.6
Bounce timem sec0.4
Reset Timem sec0.2
Max driving cyclesHz500
Resonance cycle numberHz5000±400
Tensile strengthN(Kgf)19
Operating temperature℃-40~+125
Storage temperature℃5~+35
Thermal Shock℃-10~+65

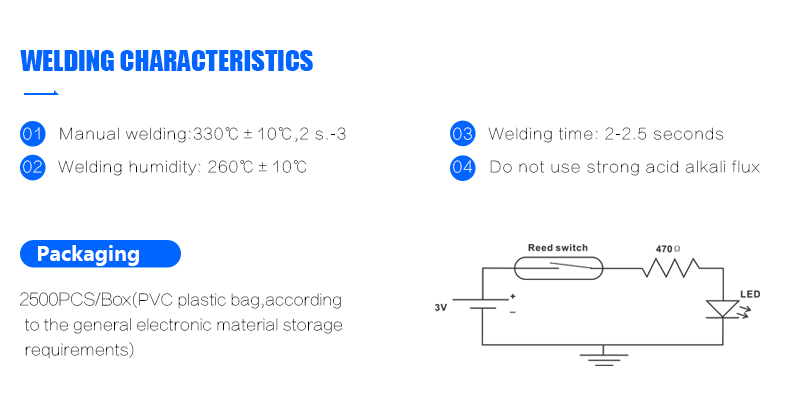

Welding heart-resistant property℃310
Soldering tin rate%90
Impact resistancem/s2480
Vibration resistanceHz10~+55

1.Q:Can I get sample from you?

A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.

2.Q:Do you accept customization?

A:Yes,customization is acceptable,please contact our sales staffs for consult.

3.Q:Can you provide help for technical issues?

A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us

4.Q:How many types of switches do you have,and what about your quality?

A:We have 10 different types of switches for your choice,all our products is passed the ROHS and REACH,please trust we definitely could meet your quality stander.
