reed sensor

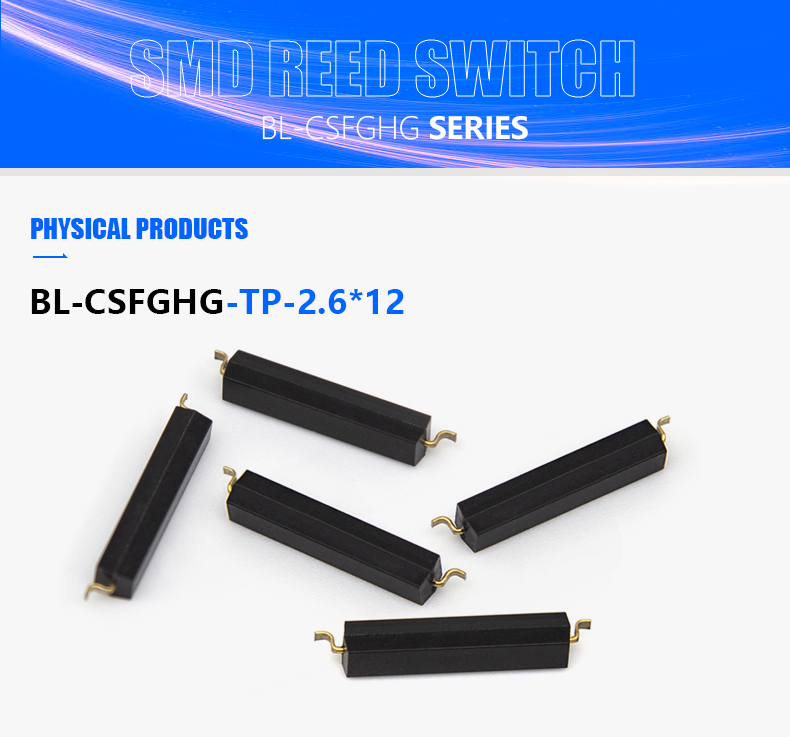

Beelee BL-CSFGHG-TP-2.6X12 SMD reed sensor switch magnetic cylindrical sealed proximity reed switch for water meters

BL-CSFGHG-TP-2.6X12
minimum order
1 piece
Quantity:
Contact Now
add to cart
  • Model Number:BL-CSFGHG-TP-2.6X12
  • Place of Origin:Guangdong, China
  • Brand Name:GBeelee
  • Contact Rating:10 W
  • Switching Voltage:100 V.AC/DC
  • Max. current:0.5 A
  • Contact resistance:150 mΩ
  • Insulation resistance:1*10^9 min ohm
  • Withstand voltage:200 min V.DC
  • Operating temperature:-40~+125℃
  • Pull in Value:10-40 AT

1,Micro changeover dry-reed switch hermetically sealed in a gas-filled envelope. Single-pole, double-throw (SPDT) type, having a normally open and a normally closed contact.

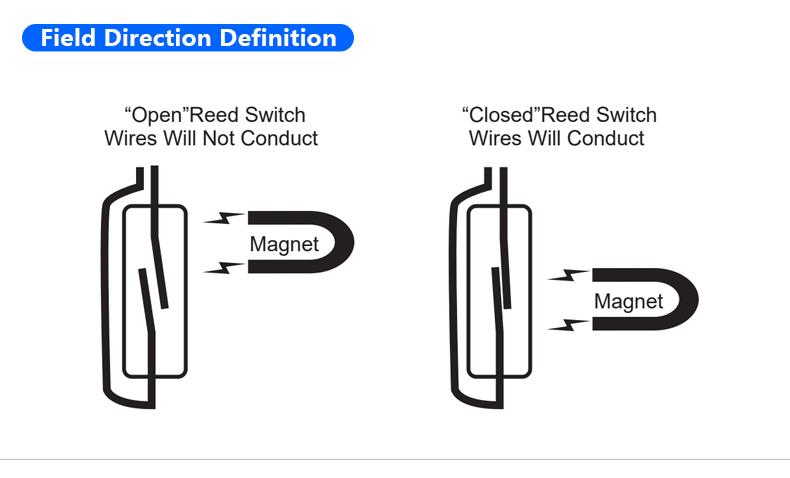

2,The switch may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in sensors, relays, pulse counters or similar devices.

ParametersUnitBL-CSFGHG-TP-2.6X12
Pull in ValueAT10-40
Release valueAT5 min
Contact resistancem ohm150 max
Insulation resistanceohm1*109min
Withstand voltageV.DC200 min
Contact RatingW10
Max.switching voltageV.AC/DC100
Max. currentA0.5
Max.energizing currentA1
Operating timem sec0.8
Bounce timem sec0.5
Reset Timem sec0.3
Max driving cyclesHz500
Resonance cycle numberHz5000±500
Tensile strengthN(Kgf)9.6
Operating temperature℃-40~+125
Storage temperature℃5~+35
Thermal Shock℃-10~+65
Welding heart-resistant property℃310
Soldering tin rate%90
Impact resistancem/s2290
Vibration resistanceHz10~+55
