85dB buzzer

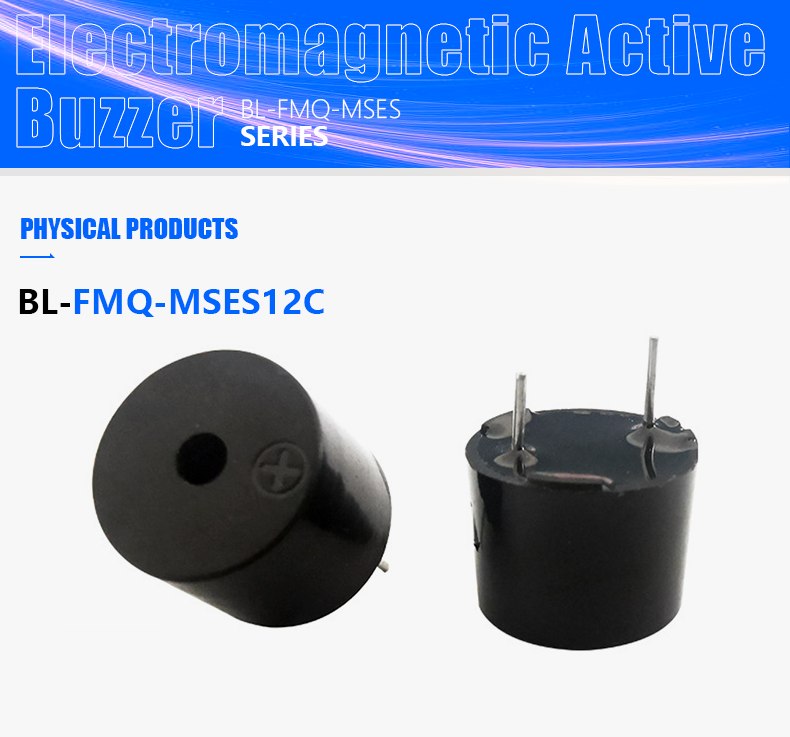

Beelee 85dB buzzer MSES12C 3V DC voltage buzzer for toys

BL-FMQ-MSES12C
minimum order
1 piece
Quantity:
Contact Now
add to cart
  • Model Number:BL-FMQ-MSES12C
  • Type:Buzzer
  • Place of Origin:Guangdong, China
  • Brand Name:Beelee
  • D/C:Contact us
  • Material:Plastic
  • Color:Black
  • Packaging:Contact us
  • Input Type:DC
  • Voltage - Rated:3V
  • Voltage Range:1.5-5V
  • Frequency:2500±200Hz
  • Technology:Electromechanical
  • Operating Mode:Contact us
  • Duration:Contact us
  • Current - Supply:≤30mA
  • Operating Temperature:-20°C ~ 75°C
  • Mounting Type:Surface Mount
  • Termination:Contact us
  • Size / Dimension:12x9.5
  • Height - Seated (Max):Contact us
  • Voltage - Input (Max):Contact us
  • Impedance:Contact us
  • Capacitance @ Frequency:Contact us
  • Output Type:Contact us
  • Frequency Range:Contact us
  • Height (Max):Contact us
  • Frequency - Self Resonant:Contact us
  • Efficiency - Type:Contact us
  • Power - Rated:Contact us
  • Power - Max:Contact us
  • Rated Voltage:Contact us
  • Cross Reference:Contact us
  • Sound pressure level=SPL:Min 85dB
  • Response time:Max 50mS
  • Storage temperature:-30~+85℃
  • Terminal strength:10N
  • Weight:2g

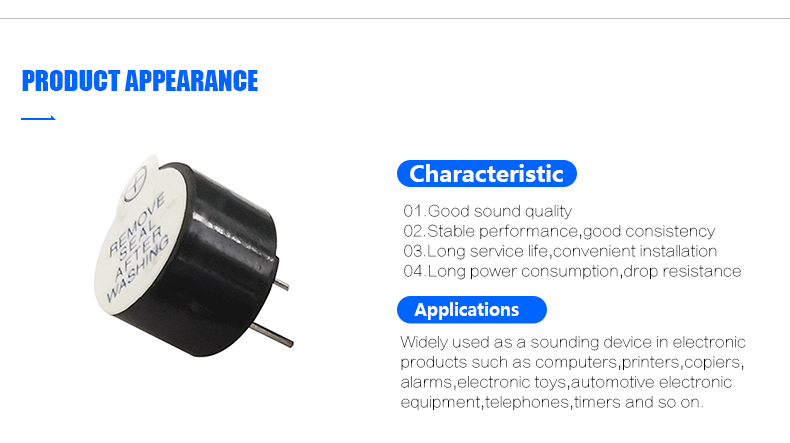

01.Buzzer is an electronic buzzer with integrated structure, which is powered by DC voltage.
02.It has the characteristics of stable performance, good consistency,low power consumption and drop resistanceand.
03.It is widely used as a sounding device in electronic products such as computers, printers, copiers, alarms, electronic toys, automotive electronic equipment, telephones, timers and so on.

ItemSpecifications
Rated voltage3VDC
Operating voltage1.5-5VDC
Sound pressure level=SPLMin 85dB
Electric current≤30mA
Oscillation frequency2500±200Hz
Response timeMax 50mS
Operating temperature range-20~+75℃
Storage temperature-30~+85℃
Terminal strength10N

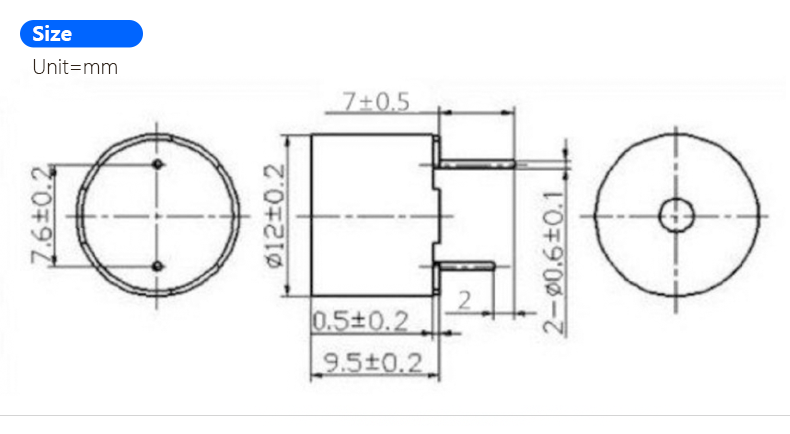

Size12x9.5
Weight2g
About us

1.Q:Can I get sample from you?

A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.

2.Q:Do you accept customization?

A:Yes,customization is acceptable,please contact our sales staffs for consult.

3.Q:Can you provide help for technical issues?

A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us

4.Q:How many types of switches do you have,and what about your quality?

A:We have 10 different types of switches for your choice,all our products is passed the ROHS and REACH,please trust we definitely could meet your quality stander.
