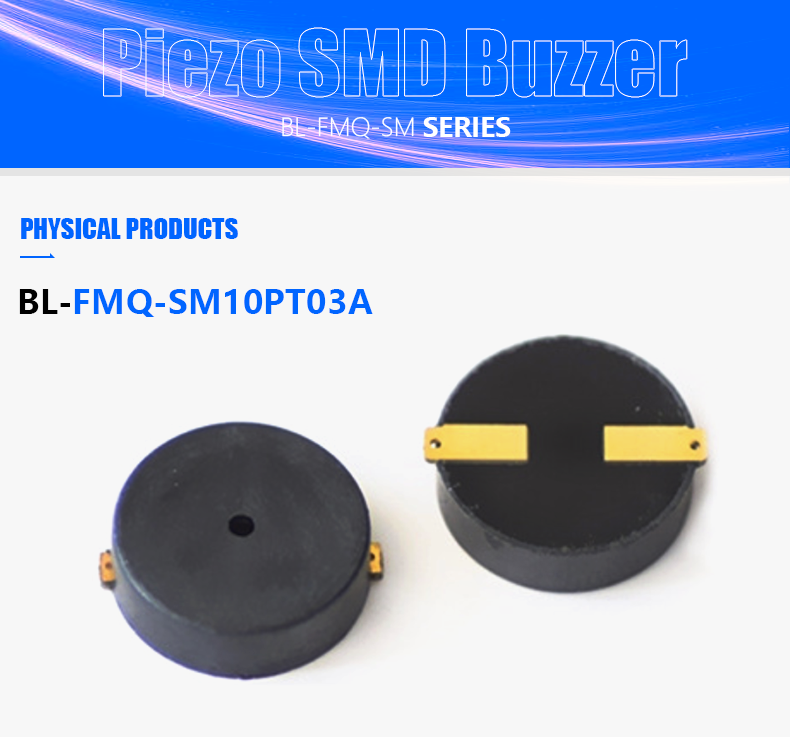

Beelee 65dB piezo buzzer 10mm 5V piezo SMD buzzer for automotive electronic equipment

• Model Number:BL-FMQ-SM10PT03A
• Type:Buzzer
• Place of Origin:Guangdong, China
• Brand Name:Beelee
• Material:Plastic
• Color:Black
• Input Type:DC
• Technology:Piezo
• Operating Temperature:-20°C ~ 70°C
• Mounting Type:Surface Mount
• Termination:None

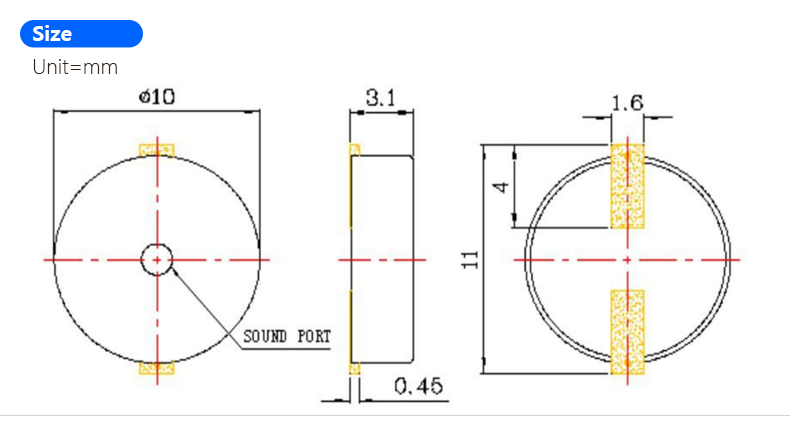

• Size / Dimension:10mm
• Height - Seated (Max):3.1mm
• Sound pressure at 10cm:≥75dB
• Resonant Frequency:5.2kHz
• Rated current:≤3mA
• Operating Voltage:1~25Vp-p
• Weight:0.3gram

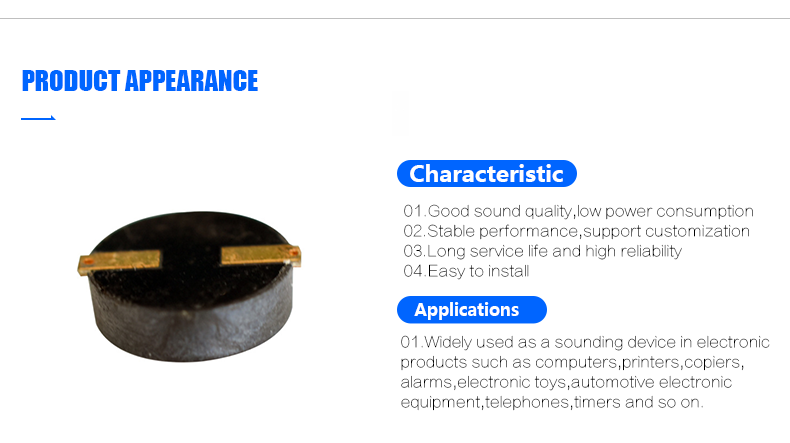

Piezo SMD Buzzer is relatively small, which is suitable for some small and compact electronic products.

01.Piezo SMD Buzzer is relatively small, which is suitable for some small and compact electronic products.
02.It has the characteristics of stable performance, small volume, low power consumption, sensitive response and so on.
03.It is widely used as a sounding device in electronic products such as computers, printers, copiers, alarms, electronic toys, automotive electronic equipment, telephones, timers and so on.

1.Q:Can I get sample from you?

A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.

2.Q:Do you accept customization?

A:Yes,customization is acceptable,please contact our sales staffs for consult.

3.Q:Can you provide help for technical issues?

A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us
