normally open type reed switch

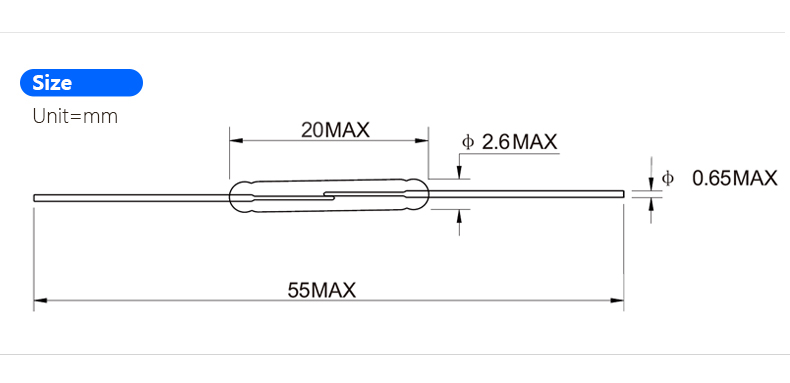

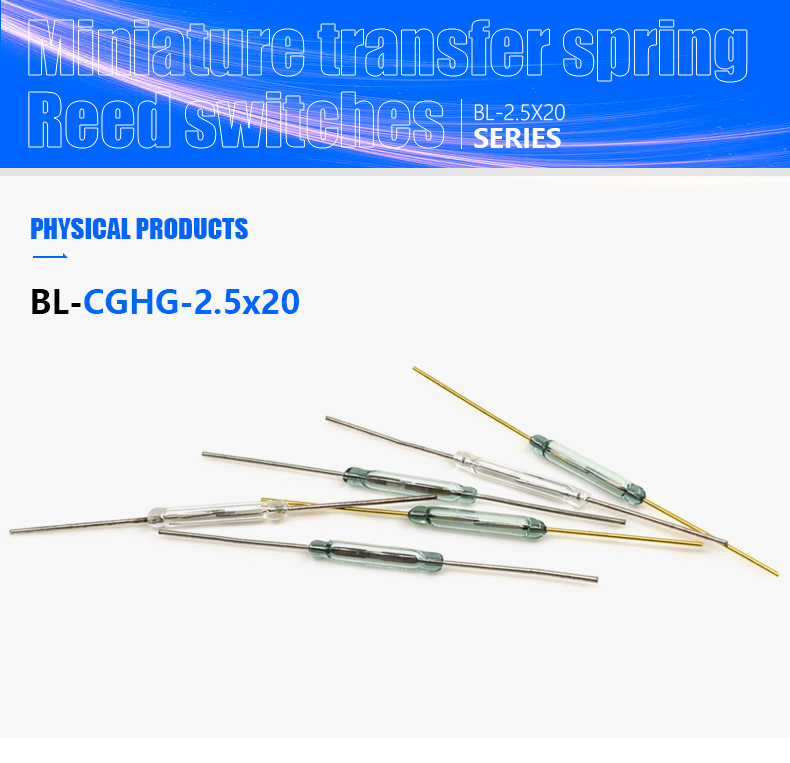

Beelee 2.5*20mm Magnetic Reed Switch Rohs Reed Switch Normally Open type Metal Door Recessed

BL-JGHG-2.5*20
Bailing electronic reed switch manufacturer, providing glass reed switch, plastic seal reed switch, high pressure reed switch, magnetic reed switch, magnetic switch, support program customization, email to amanda@bl28.com.
minimum order
1 piece
Quantity:
Contact Now
add to cart
  • Certification:RoHS
  • Whether the smart:NO
  • Place of Origin:Guangdong, China
  • Brand Name:GBeeLee
  • Model Number:BL-JGHG-2.5*20
  • Max. Current:0.5A
  • Max. Voltage:100v~220v
  • Name:Reed switch
  • Operation type:magnetic type
  • Model:BL-JGHG-2.5*20
  • Max switch Voltage:100V
  • Current:0.5A
  • Resistance to high pressure:220Vdc
  • Response Frequency:4000Hz
  • Sensitive Value:25-30AT

01. Product Features Micro changeover reed switch hermetically sealed in a gas fulled enve-lope.Single-pole,double-throw (SPDT)type,having a normally open and a normally closed contact.

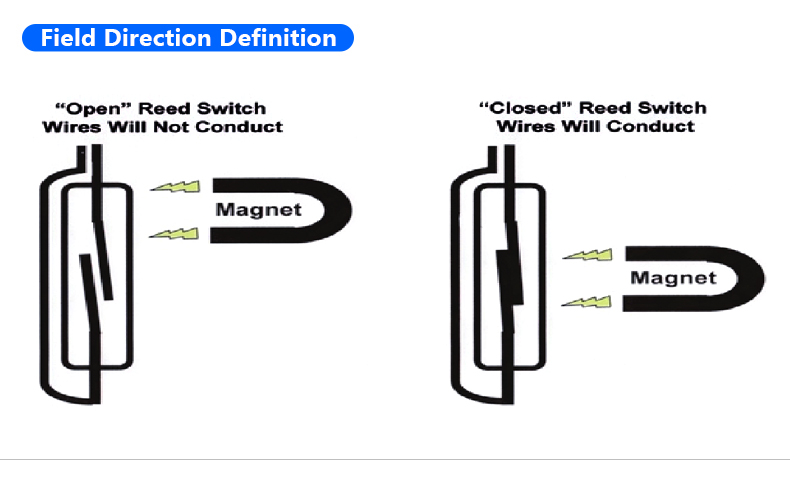

02.The switch may be actuated by an electromagnet,a permanent magnet or a combination of both.The device is intended for use in sensors,relays,pulse counters or similar devices.

DATA SCANUnitBL-GHG-2.5X20
Contact RatingW10
Switching VoltageVDC180
Breakdown VoltageVDC220280
Switching CurrentA0.5
Intial Contact ResistancemΩ150
Insulation ResistanceΩ10 9
Operating Timems0.3
Bounce Timems0.3
Release Timems0.3
Resonant FrequencyHz2600
Operating FrequencykHz10
Pull In ValueAT10-2020-80
Drop Out ValueAT
Contact CapacitancePT0.4
Electrcal Life(Resistive Loads)10 6 (24VDC,250mA)
10 7 (5VDC,10mA)
Test Coll
Number Of Turns
Resistance		Ω5000 550

1.Q:Can I get sample from you?

A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.

2.Q:Do you accept customization?

A:Yes,customization is acceptable,please contact our sales staffs for consult.

3.Q:Can you provide help for technical issues?

A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us

4.Q:How many types of switches do you have,and what about your quality?

A:We have 10 different types of switches for your choice,all our products is passed the ROHS and REACH,please trust we definitely could meet your quality stander.
