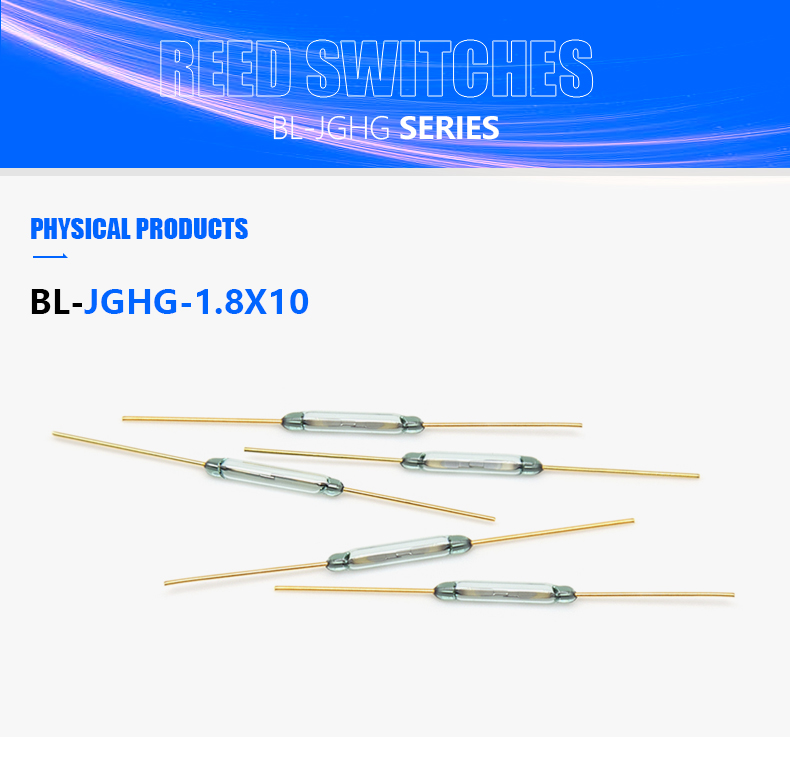

BL-JGHG-1.810 Normally Opening Magnetron Gold-plated Glass Seal Size 1.810 MM Reed Switch Sensor

BL-CGHG-1.8-10

minimum order

1 piece

Quantity:

Contact Now

add to cart

Certification:RoHS
Whether the smart:NO
Place of Origin:Guangdong, China
Brand Name:Beelee
Model Number:BL-CGHG-1.8-10
Max. Current:0.5A
Max. Voltage:100V
Contact Rating:10 W
Switching Voltage:100 VDC
Switching Current:0.5 A
Breakdown Voltage:110VAC/150VDC
Operating Time:0.5 mS
Release Time:0.3 mS
Resonant Frequency:5000 Hz
Switching current frequency:10 KHz
Pull in Value:8-40 AT
Contact Capacitance:0.5 PF

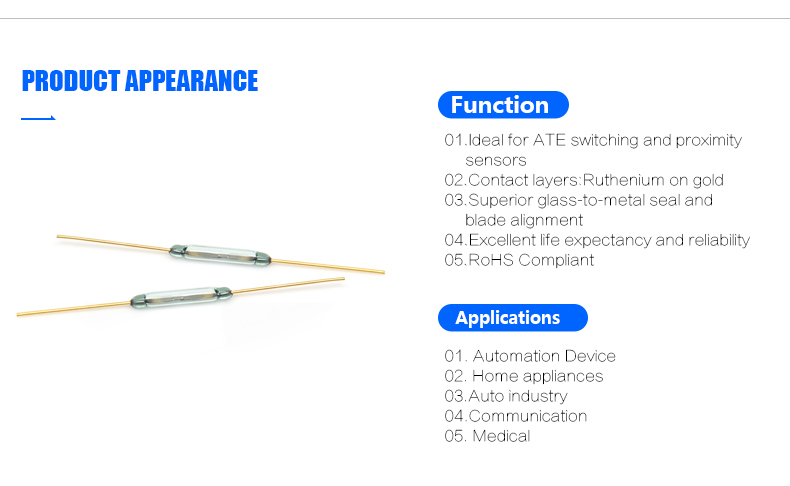

01. Product Features Micro changeover dry-reed switch hermetically sealed in a gas shell envelope.Single-pole,double-throw (SPDT)type,having a normally open and a normally closed contact.

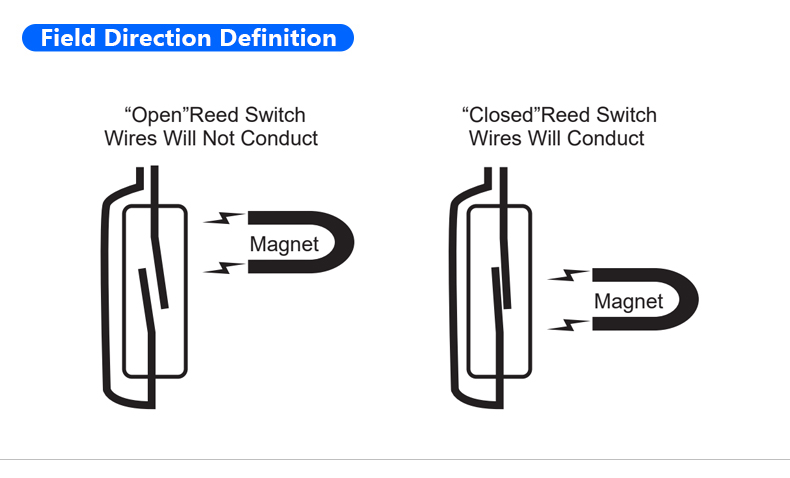

02.The switch may be actuated by an electromagnet,a permanent magnet or a combination of both.The device is intended for use in sensors,relays,pulse counters or similar devices.

Parameters	Unit	BL-JGHG-1.8x10
Contact Form		A
Max.Switching Rating	W	10
Max.Switching Voltage	VDC	100
Min.Breakdown Voltage ·at Pull in s 20AT ·at Pull in>20AT	VAC/VDC	110/150
Max.Switching Current	A	0.5
Max.Carry Current	A	0.5
Max.Contact Resistance	mΩ	100
Min.Insulation Resistance	MΩ	1000
Max.Operating time	ms	0.5
Max.Release time	ms	0.3
Min.Resonant Frequency	Hz	5000
Max.Switching current frequency	kHz	10
Pull in Value	AT	8-40
Release range	AT	4-36
Contact Capacitance	pF	0.5
Weight	g	0.083
Operating temperature	℃	-60~+125
High humidity at +25C,max		98%
Life expectancy, switching cycles		1x10⁵…1x10⁸
