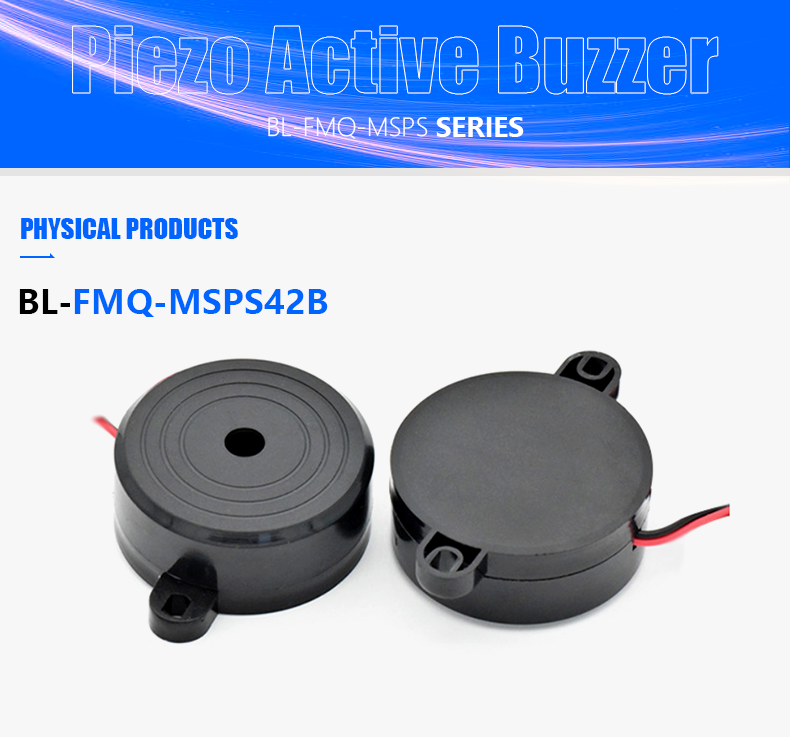

Beelee piezo active buzzer 58*18mm 90dB buzzer with wire

BL-FMQ-MSPS42B

minimum order

1 piece

Quantity:

Contact Now

add to cart

Model Number:BL-FMQ-MSPS42B
Type:Buzzer
Place of Origin:Guangdong, China
Brand Name:Beelee
Material:Plastic
Color:Black
Input Type:AC, DC
Technology:Piezo
Operating Temperature:-20°C ~ 60°C
Mounting Type:Panel Mount
Termination:None

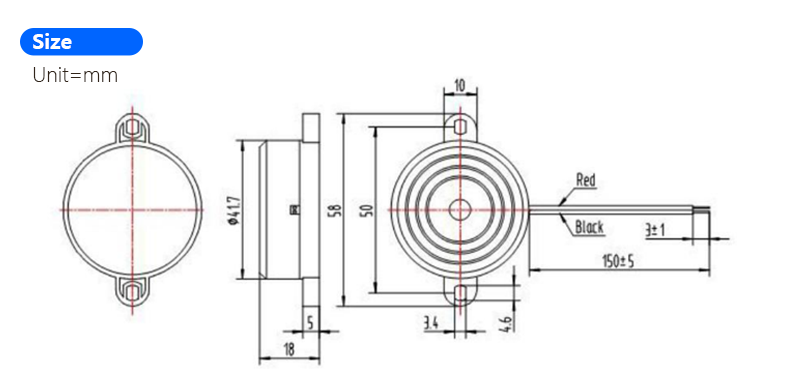

Size / Dimension:58*18mm
Output Type:Not Applicable
Efficiency - Type:Sensitivity
Sound pressure at 10cm:≥90dB
Rated current:≤25mA
Operating Voltage:5~18Vdc
Weight:15gram

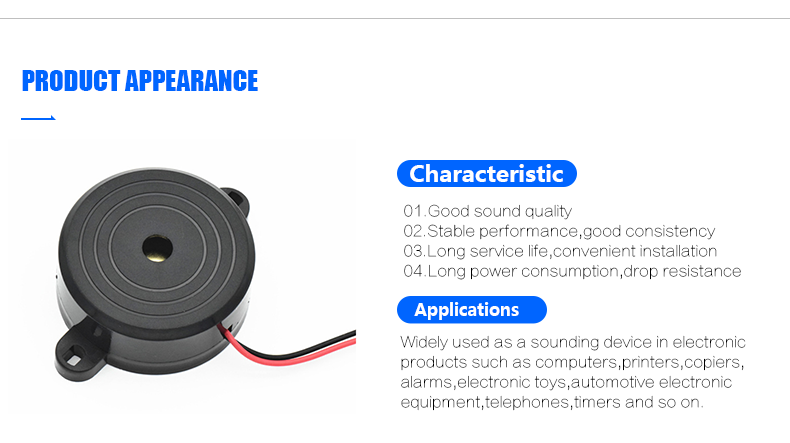

Buzzer is an electronic buzzer with integrated structure, which is powered by DC voltage.

01.Buzzer is an electronic buzzer with integrated structure, which is powered by DC voltage.
02.It has the characteristics of stable performance, good consistency and sensitive response.
03.It is widely used as a sounding device in electronic products such as computers, printers, copiers, alarms, electronic toys, automotive electronic equipment, telephones, timers and so on.

Item	Unit	12Vdc
Sound pressure at 10cm	dB	≥90
Resonant Frequency	kHz	/
Rated current	mA	≤25
Operating Voltage	Vdc	5~18
Operation Temperature	℃	-20~60
Weight	gram	15

About us

1.Q:Can I get sample from you?

A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.

2.Q:Do you accept customization?

A:Yes,customization is acceptable,please contact our sales staffs for consult.

3.Q:Can you provide help for technical issues?

A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us

4.Q:How many types of switches do you have,and what about your quality?

A:We have 10 different types of switches for your choice,all our products is passed the ROHS and REACH,please trust we definitely could meet your quality stander.
