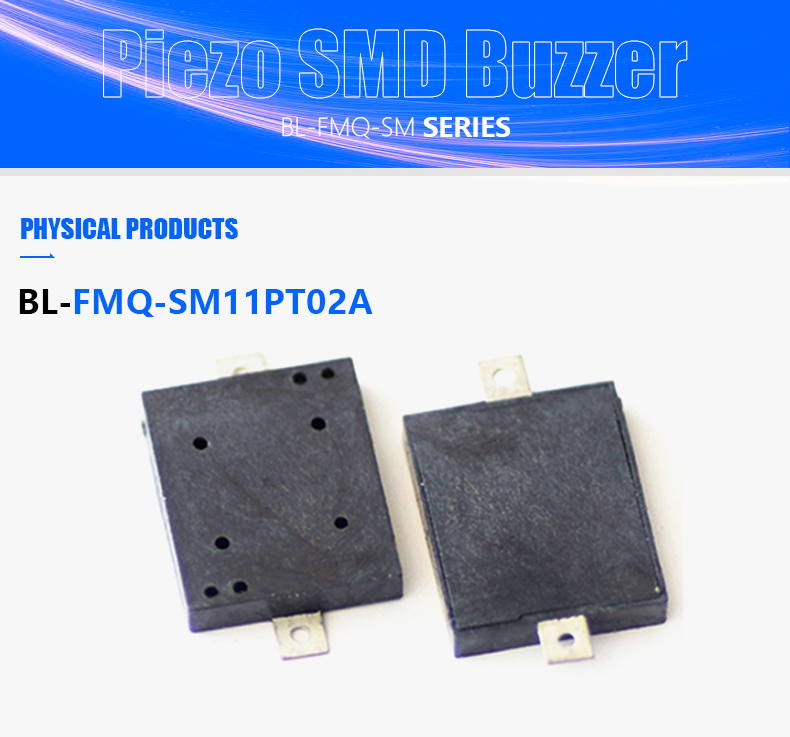

Beelee 5V piezo SMD buzzer 9*9mm electronic buzzer for automotive electronic equipment

BL-FMQ-SM11PT02A

minimum order

1 piece

Quantity:

Contact Now

add to cart

Model Number:BL-FMQ-SM11PT02A
Type:Buzzer
Place of Origin:Guangdong, China
Brand Name:Beelee
Material:Plastic
Color:Black
Input Type:DC
Voltage - Rated:5V
Frequency:4.1±0.5
Technology:Piezo
Operating Temperature:-30℃~70℃
Mounting Type:Surface Mount

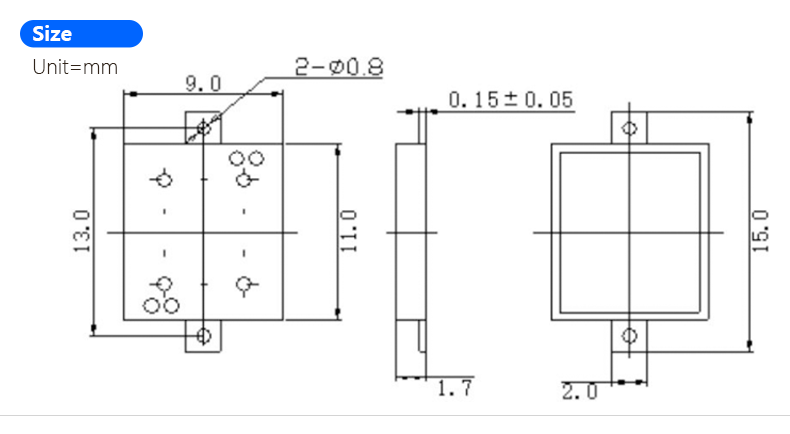

Size / Dimension:9*9mm
Output Type:Not Applicable
Rated Voltage:5V
Sound pressure at 10cm:≥70dB
Resonant Frequency:4.1±0.5kHz
Rated current:≤3mA
Operating Voltage:1~25Vp-p
Weight:0.2gram

Item	Unit	5V
Sound pressure at 10cm	dB	≥70
Resonant Frequency	kHz	4.1±0.5
Rated current	mA	≤3
Operating Voltage	Vp-p	1~25
Operation Temperature	℃	-30~70
Weight	gram	0.2
