electronic buzzer

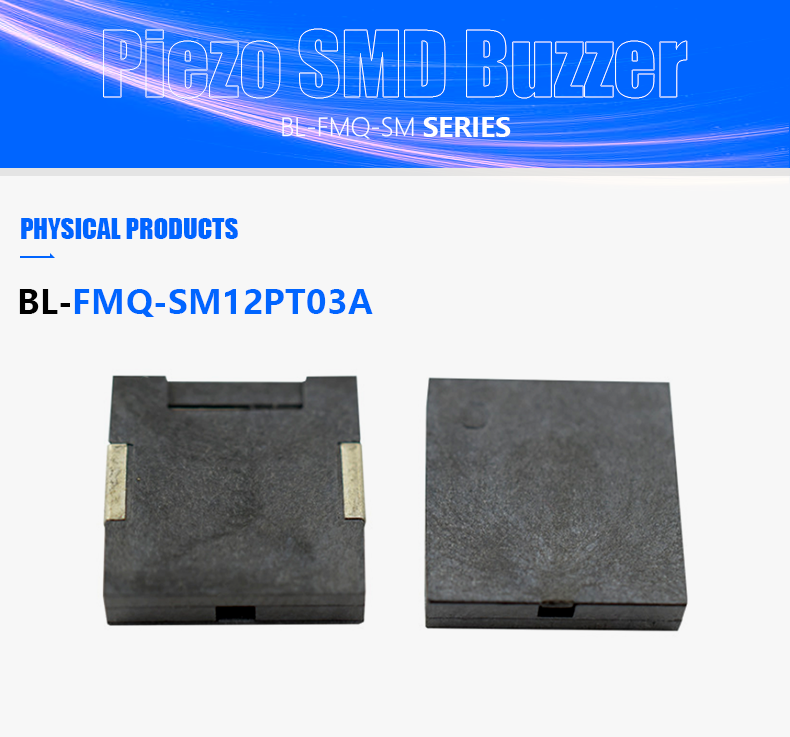

Beelee 12*12mm electronic buzzer 78dB 83dB piezo SMD buzzer

BL-FMQ-SM12PT03A
minimum order
1 piece
Quantity:
Contact Now
add to cart
  • Model Number:BL-FMQ-SM12PT03A
  • Type:Buzzer
  • Place of Origin:Guangdong, China
  • Brand Name:Beelee
  • Material:Plastic
  • Color:Black
  • Input Type:DC
  • Voltage - Rated:3V
  • Frequency:4KHz
  • Technology:Piezo
  • Operating Temperature:-20°C ~ 70°C
  • Mounting Type:Surface Mount
  • Termination:Connector

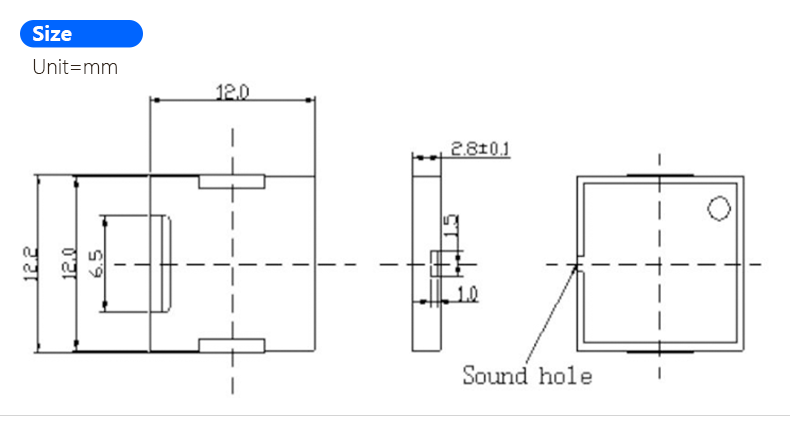

  • Size / Dimension:12*12
  • Output Type:Not Applicable
  • Efficiency - Type:Sensitivity
  • Sound pressure at 10cm:≥78dB
  • Resonant Frequency:4kHz
  • Rated current:≤1mA
  • Operating Voltage:1~25Vp-p
  • Operation Temperature:-40℃~85℃
  • Weight:0.4 gram

ItemUnit3V5V
Sound pressure at 10cmdB≥78≥83
Resonant FrequencykHz44.1
Rated currentmA≤1≤5
Operating VoltageVp-p1~25
Operation Temperature℃-40~85
Weightgram0.4
About us

1.Q:Can I get sample from you?

A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.

2.Q:Do you accept customization?

A:Yes,customization is acceptable,please contact our sales staffs for consult.

3.Q:Can you provide help for technical issues?

A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us

4.Q:How many types of switches do you have,and what about your quality?

A:We have 10 different types of switches for your choice,all our products is passed the ROHS and REACH,please trust we definitely could meet your quality stander.
