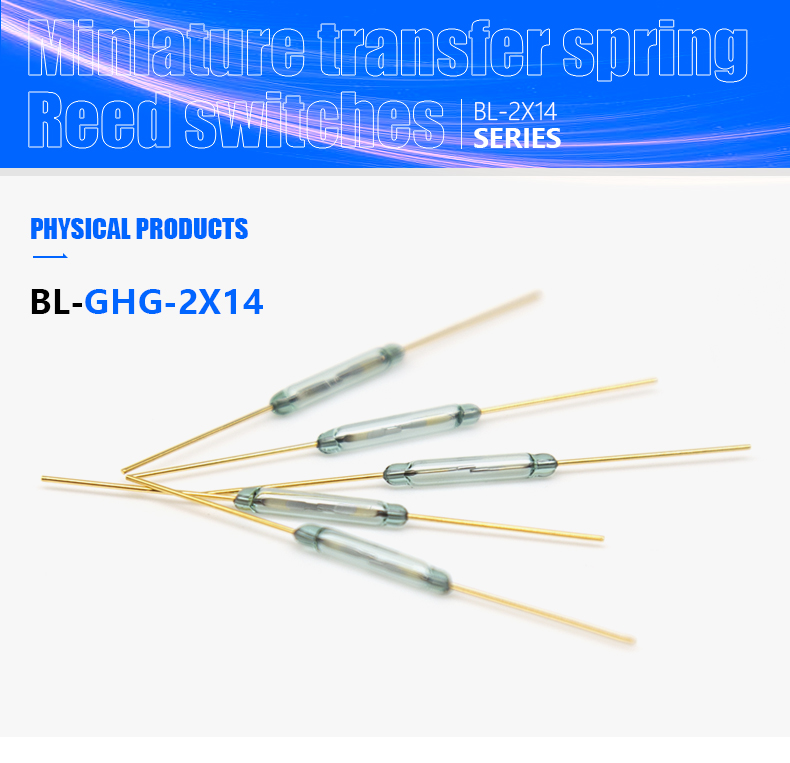

BL0214 Green Glass Gold Pin Water Meter 2*14mm Normally Open Reed Switch

What is a normally open reed switch?

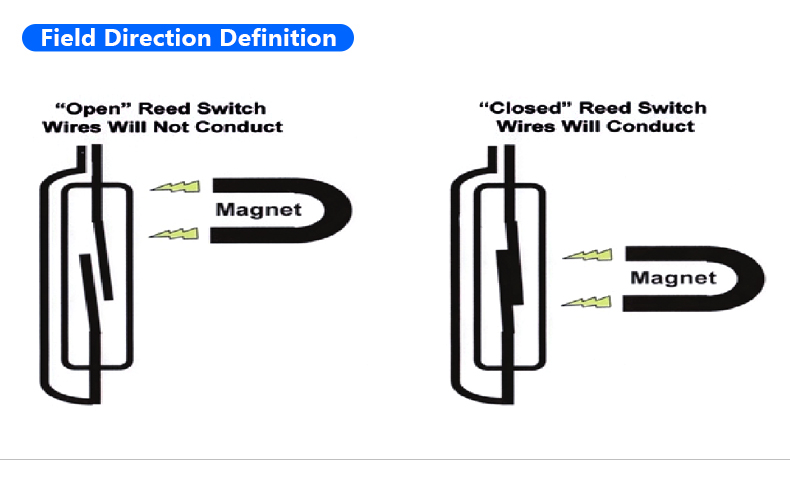

The normally open reed switch is composed of two reeds made of both magnetic and conductive materials (usually iron-nickel alloy) and sealed in a glass tube in parallel, leaving a certain gap between the two reeds (usually 0.2 mm) Left and right), when the bar-shaped permanent magnet approaches the reed tube in parallel, the two reeds are magnetized and attracted to each other, and the contacts are closed. When the permanent magnet is far away, the contact opens again.

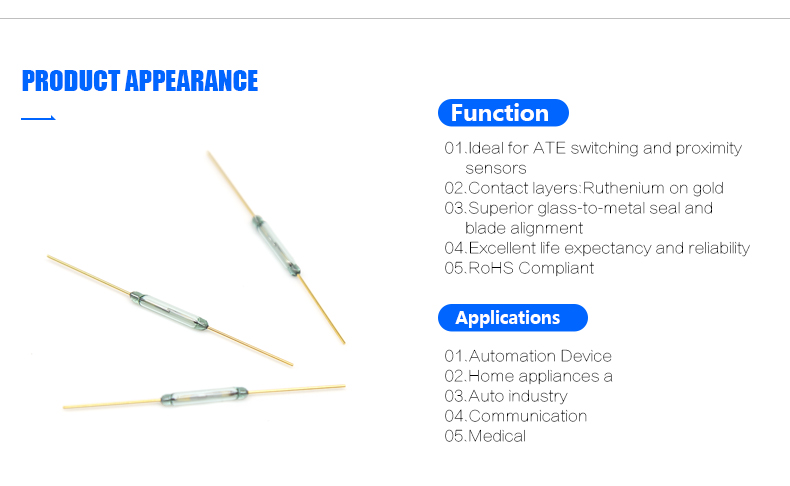

• BL-0214 Reed switch is a special magnetic sensitive switch with small size green glass tube gold/silver pin, which is the main component of Reed relay and proximity Switch. Application for water meter, automative machine,car and etc.
• Type:magnetic reed switch sensor
• Place of Origin:CN
• Certification:RohS
• Brand Name:Beelee
• Model Number:BL0214
• Max. Current:0.5A
• Max. Voltage:220VDC

01. Product Features Micro changeover dry-reed switch hermetically sealed in a gas-lled enve- lope.Single-pole,double-throw (SPDT)type,having a normally open and a normally closed contact.

02.The switch may be actuated by an electromagnet,a permanent magnet or a combination of both.The device is intended for use in sensors,relays,pulse counters or similar devices.

Max Contact Resistance	MΩ	100
Min insulation resistance	Ω
Action Time	Ms	0.4
Bounce time	Ms	0.4
Release time	Ms	0.1
Electrical life	Hz	4000
Response frequency	Hz	500
Max working frequency	AT	7-45
Sensitive value	FT	4
Minimum reset min value	PT	0.7
Max contact capacitance
Load
Test coil number		5000
Test coil resistance		870ohm
