пироэлектрический инфракрасный радиальный датчик

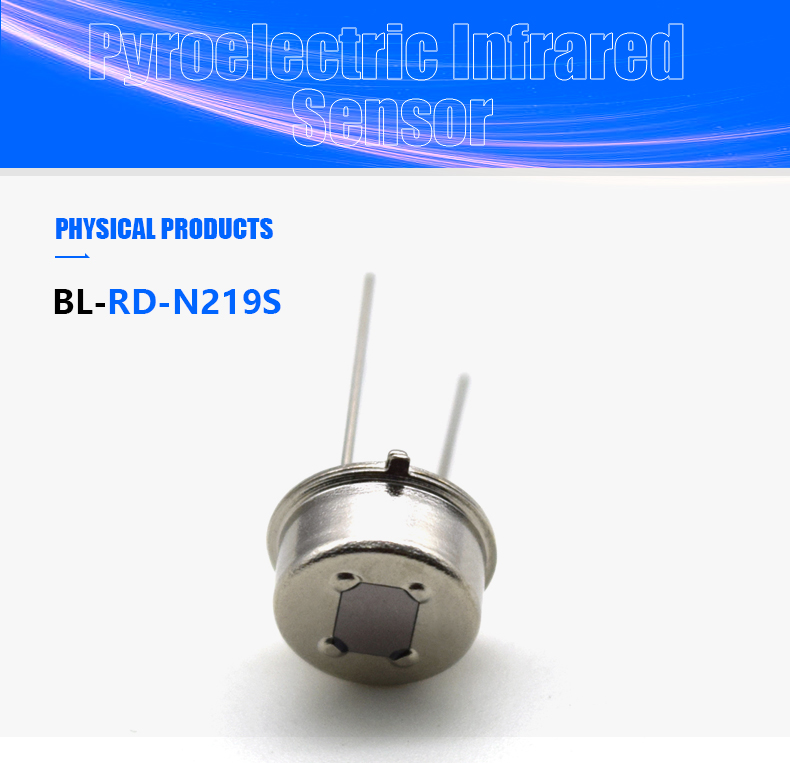

BL-RD-N219S Пироэлектрический датчик

BL-RD-N219S

минимальный заказ

1 кусок

количество:

отправить контакт

добавить в корзину

Series:Pyroelectric Infrared Sensor
Features:Change with temperature, Digital signal processing
Mounting Type:Digital signal output
Description:Dual sensitive element design
Model Number:BL-RD-N219S
Place of Origin:Guangdong, China
Brand Name:GBeelee
Usage:Especially suitable for intelligent
Theory:Infrared detection
Output:Analog signal
Brand:Pyroelectric Infrared Sensor
Voltage - Supply:3~15V
Output Type:≥ 3500mV
Operating Temperature:-30~70℃
Current - Supply (Max):<12uA
Output Configuration:Output Balance<10%
Voltage Rating:0.4~0.75V
Size / Dimension:Window Size: 3*4mm
Resolution:≥ 75%
Sensing Range:120° (horizontal direction)
Current - Output (Max):Supply Voltage:3~15V
Sensitivity (LSB/g):≥ 3300V/W
Sensing Distance:10M (lens SB-F-02)
Voltage - Max:3.7V
Sensing Light:5~14um
Voltage - Input:3~15V
Application:smart toys,automatic light switch,Sensor door
Window Size:3*4mm
IR Receiving Electrode:2*1mm,2elements
Package Type:TO-5
Spectral Response:5-14μ m
Transmittance:≥ 75%
Signal Output[Vp-p]:≥ 3500mV
Sensitivity:≥ 3300V/W
Noise[Vp-p]:≤70mV
Output Balance:<10%
Offset Voltage:0.4~0.75V

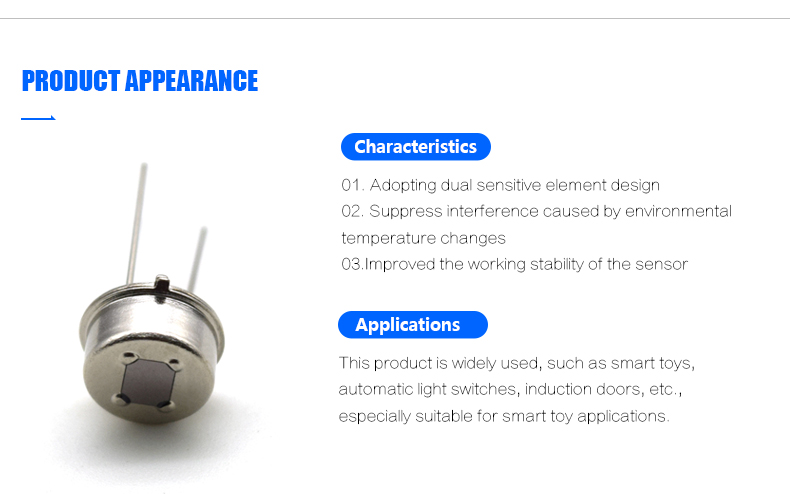

Pyroelectric infrared sensor is a sensor that utilizes the characteristics of spontaneous polarization of materials with temperature changes to detect infrared radiation. It adopts a dual sensitive element design to suppress interference caused by environmental temperature changes and improve the working stability of the sensor. This product is widely used, such as smart toys, automatic light switches, induction doors, etc., especially suitable for smart toy applications.

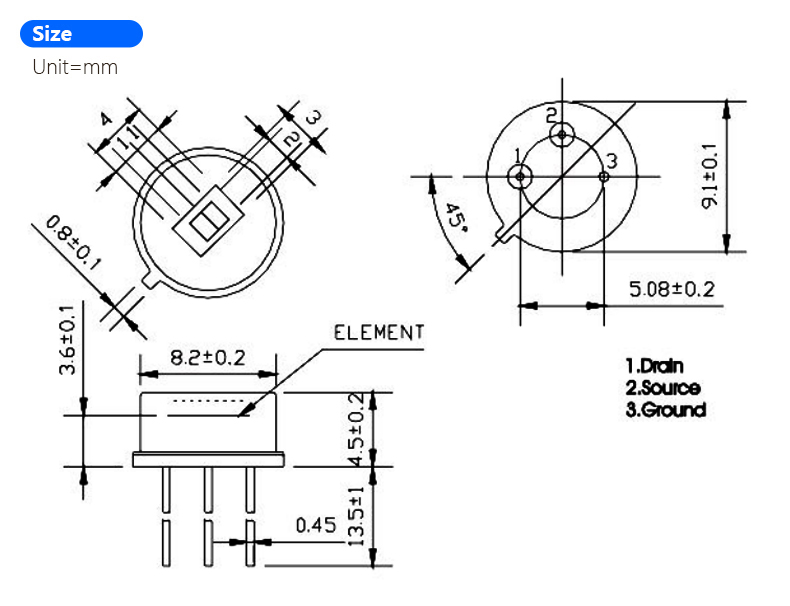

Window Size	3*4mm
IR Receiving Electrode	2*1mm，2elements
Package Type	TO-5
Spectral Response	5—14μ m
Transmittance	≥ 75%
Signal Output[Vp-p]	≥ 3500mV
Sensitivity	≥ 3300V/W
Detectivity (D*)	1.4 ×108 cmHz1/2/W
Noise[Vp-p]	≤70mV
Output Balance	<10%
Offset Voltage	0.4~0.75V
Supply Voltage	3~15V
Operating Temp.	-30~+70ºC
Storage Temp.	-40~+80ºC
