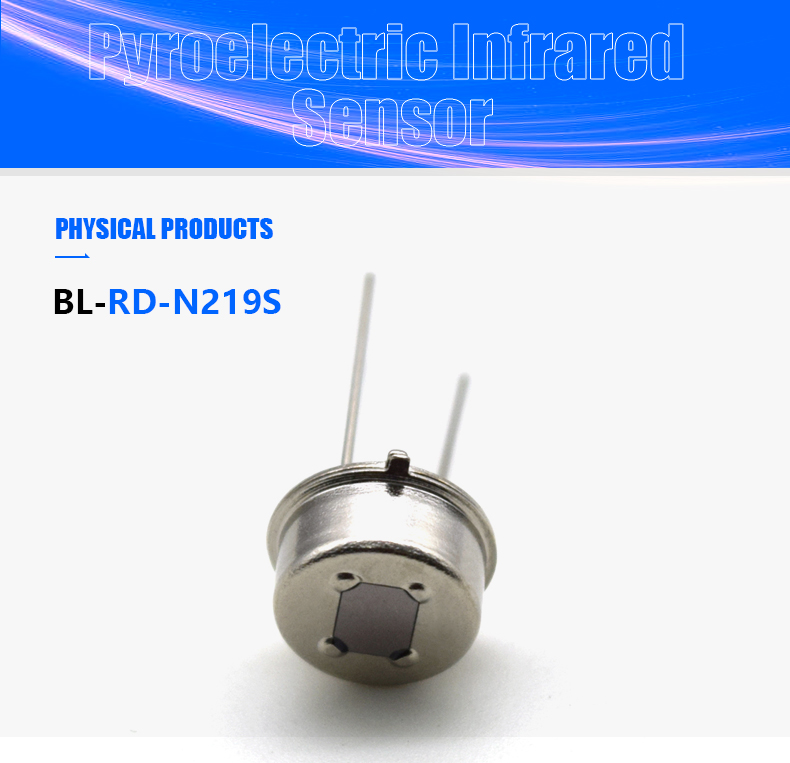

BL-RD-N219S 초전 센서
BL-RD-N219S
최소 주문
1 조각
수량:
- Series:Pyroelectric Infrared Sensor
- Features:Change with temperature, Digital signal processing
- Mounting Type:Digital signal output
- Description:Dual sensitive element design
- Model Number:BL-RD-N219S
- Place of Origin:Guangdong, China
- Brand Name:GBeelee
- Usage:Especially suitable for intelligent
- Theory:Infrared detection
- Output:Analog signal
- Brand:Pyroelectric Infrared Sensor
- Voltage - Supply:3~15V
- Output Type:≥ 3500mV
- Operating Temperature:-30~70℃
- Current - Supply (Max):<12uA
- Output Configuration:Output Balance<10%
- Voltage Rating:0.4~0.75V
- Size / Dimension:Window Size: 3*4mm
- Resolution:≥ 75%
- Sensing Range:120° (horizontal direction)
- Current - Output (Max):Supply Voltage:3~15V
- Sensitivity (LSB/g):≥ 3300V/W
- Sensing Distance:10M (lens SB-F-02)
- Voltage - Max:3.7V
- Sensing Light:5~14um
- Voltage - Input:3~15V
- Application:smart toys,automatic light switch,Sensor door
- Window Size:3*4mm
- IR Receiving Electrode:2*1mm,2elements

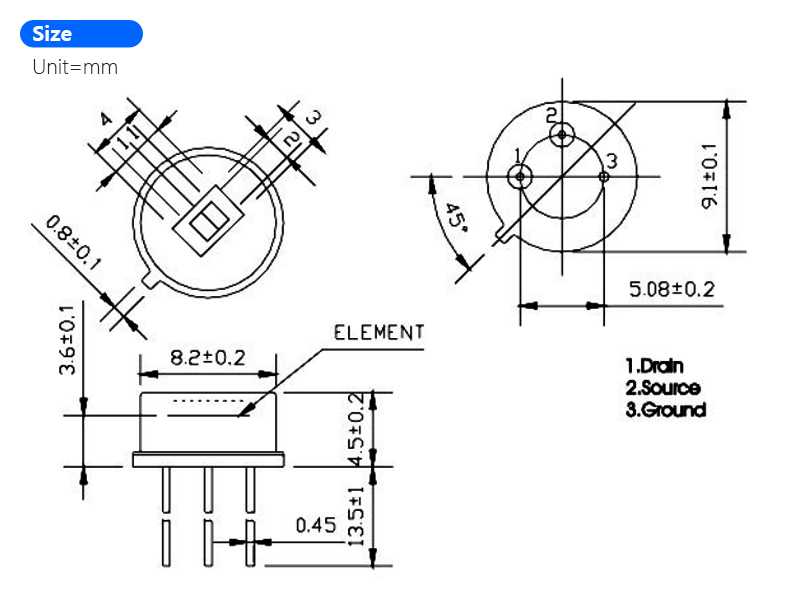

- Package Type:TO-5
- Spectral Response:5-14μ m
- Transmittance:≥ 75%
- Signal Output[Vp-p]:≥ 3500mV
- Sensitivity:≥ 3300V/W
- Noise[Vp-p]:≤70mV
- Output Balance:<10%
- Offset Voltage:0.4~0.75V

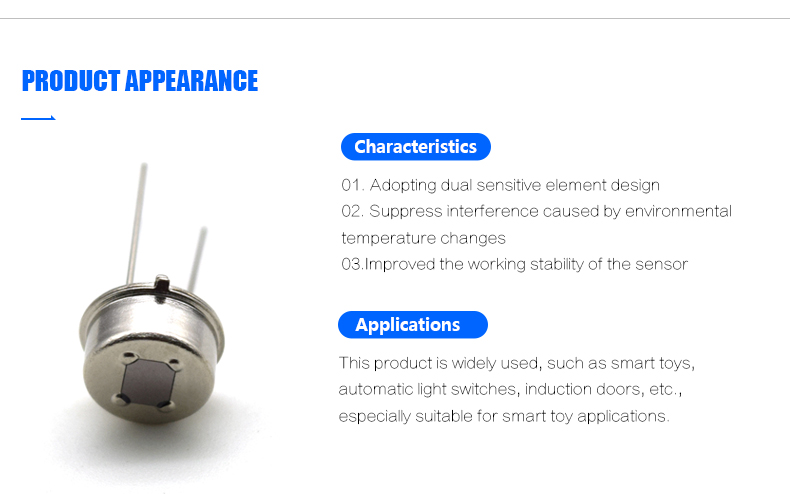

Pyroelectric infrared sensor is a sensor that utilizes the characteristics of spontaneous polarization of materials with temperature changes to detect infrared radiation. It adopts a dual sensitive element design to suppress interference caused by environmental temperature changes and improve the working stability of the sensor. This product is widely used, such as smart toys, automatic light switches, induction doors, etc., especially suitable for smart toy applications.
Window Size | 3*4mm |
IR Receiving Electrode | 2*1mm，2elements |
Package Type | TO-5 |
Spectral Response | 5—14μ m |
Transmittance | ≥ 75% |
Signal Output[Vp-p] | ≥ 3500mV |
Sensitivity | ≥ 3300V/W |
Detectivity (D*) | 1.4 ×108 cmHz1/2/W |
Noise[Vp-p] | ≤70mV |
Output Balance | <10% |
Offset Voltage | 0.4~0.75V |
Supply Voltage | 3~15V |
Operating Temp. | -30~+70ºC |
Storage Temp. | -40~+80ºC |
