BL-RD-N1331S Пир-датчик
BL-RD-N133S
минимальный заказ
1 кусок
количество:
- Series:Pyroelectric Infrared Sensor
- Features:Digital signal processing, low noise
- Mounting Type:Digital signal output, PTH
- Description:Intelligent Pyroelectric Infrared Motion Sensor
- Model Number:BL-RD-N133S
- Place of Origin:Guangdong, China
- Brand Name:GBeelee
- Usage:smart toys,automatic light switch,Sensor door
- Theory:Infrared detection
- Output:Analog signal
- Brand:Pyroelectric Infrared Sensor
- Amplifier Type:Contact Us
- Voltage - Supply:Contact Us
- Output Type:Analog signal
- Current - Supply:Contact Us
- Operating Temperature:-30~+70℃
- Current - Supply (Max):11μA
- Output Configuration:Output Balance<10%
- Voltage Rating:3-15V
- Operating Force:Contact Us
- Oxygen Range:Contact Us
- Humidity Range:-40~80 degree
- Size:Contact Us
- Size / Dimension:Window Size: 3*4mm
- Resolution:Contact Us
- Interface:Contact Us
- Technology:Contact Us
- Sensing Range:120° (horizontal direction)
- Current - Output (Max):Supply Voltage3-15V
- Bandwidth:Contact Us
- Function:Contact Us
- Acceleration Range:Contact Us
- Sensitivity (LSB/g):Contact Us
- Sensitivity (mV/g):Contact Us
- Sensitivity (LSB/(°/s)):Contact Us
- Sensitivity (mV/°/s):Contact Us
- Sensing Distance:10M (lens SB-F-02)
- Voltage - Max:1.2V
- Sensing Light:Infrared ray
- Voltage - Input:3~15V
- Application:smart toys,automatic light switch,Sensor door
- Operating Temp:-30~70 ℃
- Window Size:3*4mm
- Storage Temp:-40 ~80 ℃
- Spectral Response:5-14μ m
- Transmittance:≥ 60%
- Signal Output[Vp-p]:≥ 3800mV
- Sensitivity:≥ 3300V/W
- Output Balance:<10%
- Offset Voltage:0.3~1.2V
- Supply Voltage:3~15V

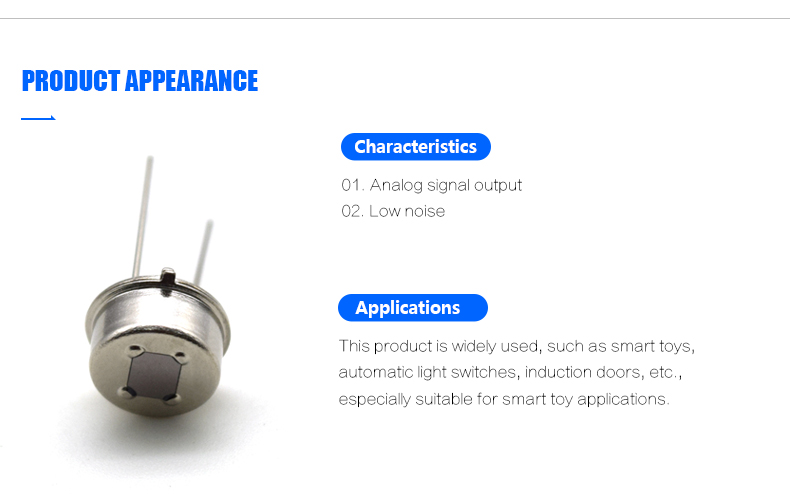

BL-RD-N133S is a sensor that detects infrared radiation by using the characteristics of spontaneous polarization of materials changing with temperature. It adopts dual-sensitive element design to suppress the interference caused by changes in ambient temperature and improve the working stability of the sensor. This product is widely used, such as smart toys, automatic light switches, induction doors, etc., especially suitable for smart toy applications.

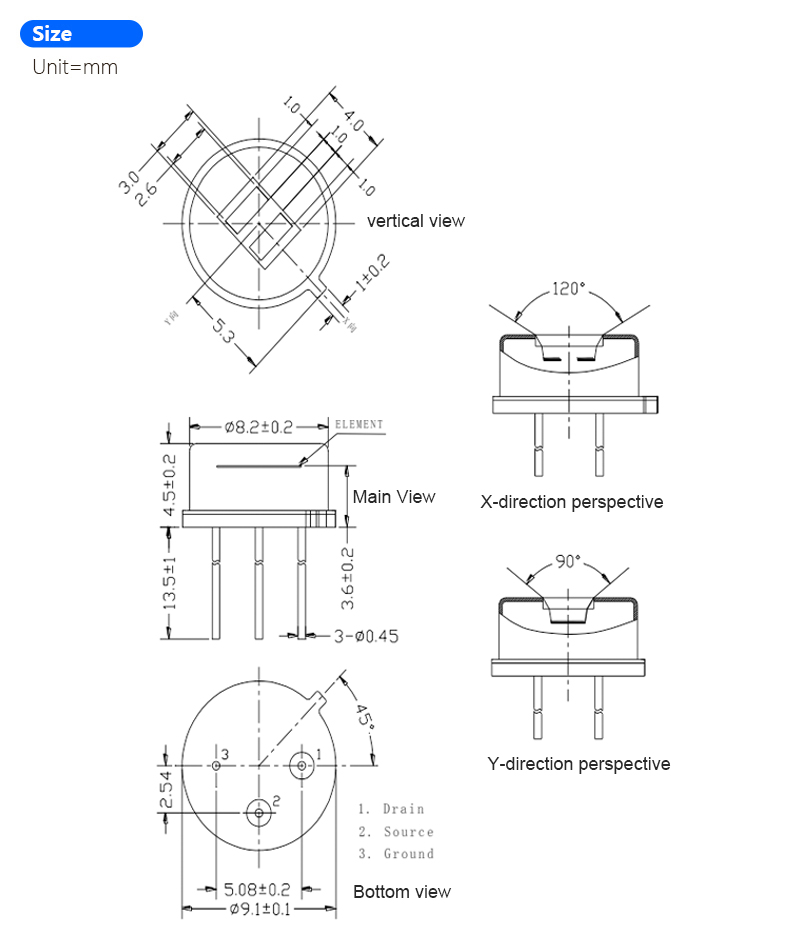

Window Size | 3*4mm |
IR Receiving Electrode | 2.6*1mm，2elements |
Package Type | TO-5 |
Spectral Response | 5—14μ m |
Transmittance | ≥ 60% |
Signal Output[Vp-p] | ≥ 3800mV |
Sensitivity | ≥ 3300V/W |
Detectivity (D*) | 1.4 ×108 cmHz1/2/W |
Noise[Vp-p] | ≤45mV |
Output Balance | <10% |
Offset Voltage | 0.3~1.2V |
Supply Voltage | 3~15V |
Operating Temp. | -30~+70ºC |
Storage Temp. | -40~+80ºC |
