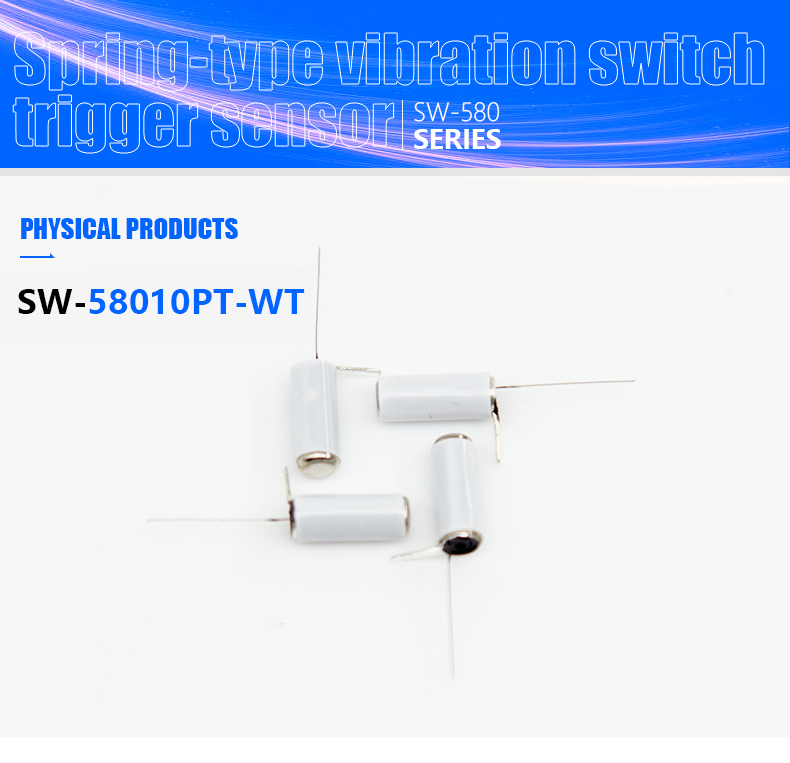

SW58010PT-WT Shock High Sensitivity Power Bank Spring Vibration Switch

The main principle of the springvibrationswitch

The conductive vibration spring and the trigger pin are accurately placed in the body of the springvibrationswitch, and are bonded and solidified by the adhesive. The spring and the trigger pin are non-conductive when they are not normally vibrated. After being vibrated, The spring jitters and touches the trigger pin to be energized to generate a trigger signal.

• SW58010PT-WT vibration switch with optional sensitivity for application of power bank and smart wearable products, which is with vibration wake-up function.
• Features:spring switch
• Type:Vibration switch
• Product name:Vibration switch
• Certificate:ROHS ISO9001
• Name:Vibration switch
• Keywords:Vibration switch
• Application:Toys
• Voltage:12V
• Item:Toys
• Brand:BeeLee
• Place of Origin:CN
• Certification:ISO9001
• Brand Name:beelee
• Model Number:SW58010PT-WT
• Max. Current:50ma
• Max. Voltage:12V DC

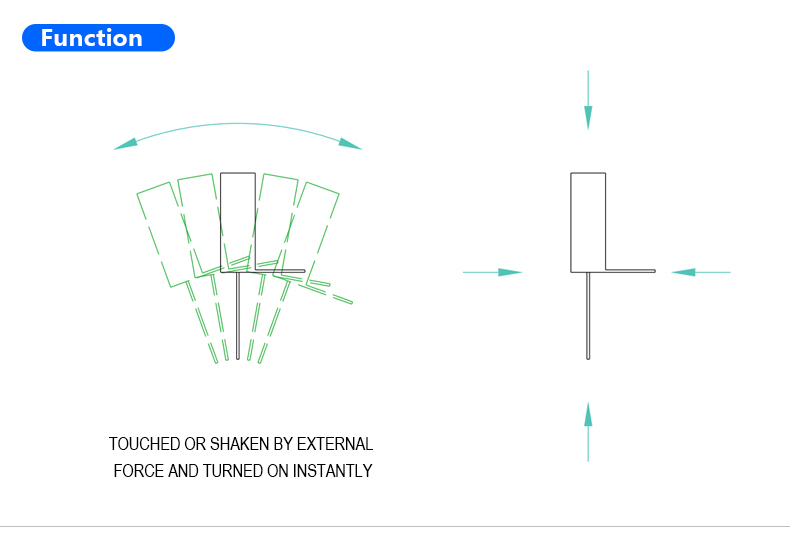

Switch is open circuit OFF-state, when it is static, when external force to touch and corresponding vibration, or movement speed achieve adequate (partial) centrifugal force, conductive pick feet will produce instant conductivity is instant ON-state, when external force disappear, switch back to open circuit OFF-state.

1.SW-580PT series are spring type, no directional vibration sensor trigger switch,
2.switch is open circuit OFF-state, when it is static, when external force to touch
and corresponding vibration, or movement speed achieve adequate (partial)
centrifugal force, conductive pick feet will produce instant conductivity is instant
ON-state, when external force disappear, switch back to open circuit OFF-state.
3.Switch have the identification P at the bottom, for completely airtight;
4.Material compliant with ROSH directive, replace the mercury switch
5.Trigger high-slowness sensitivity
6.Switch external for metal, high heat resistance
